Specifications

Electrical Specifications

Refer to the following table for supply wiring and fusing.

Model	Volts	Phase	Hertz	kW/Vat	Amps/Vat	Wire
KFE	208	3	60	22.0	62.0	3+G
KFE	240	3	60	22.0	53.0	3+G
KFE	380-415	3	50	22.0	32.5	3NG
KFG	120	1	60	n/a	12.0	2+G
KFG	230	1	50	n/a	6.2	1NG

KFE and KFG Dimensions

• Flue Dimensions: 2.78 in x 1.78 in (2.852 in – 0.036 in – 0.036 in) x (1.816 in – 0.036 in)
• Vat Dimensions: 18 in x 18 in (not including beachhead), 18 in x 24 in (including beachhead)

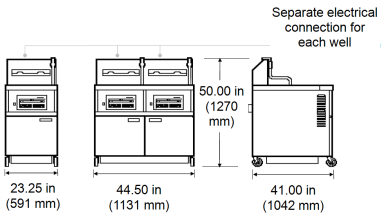

Uncrated Dimensions

	KFE/KFG 341	KFE/KFG 342
Width	23.25 in (591 mm)	44.50 in (1131 mm)
Depth	41.00 in (1042 mm)	41.00 in (1042 mm)
Height	50.00 in (1270 mm)	50.00 in (1270 mm)

Crated Dimensions

	KFE/KFG 341	KFE/KFG 342
Width	46.00 in (1169 mm)	51.00 in (1296 mm)
Depth	30.00 in (762 mm)	46.00 in (1169 mm)
Height	66.00 in (1676 mm)	66.00 in (1676 mm)
Volume	53 ft³ (1.5 m³)	90 ft³ (2.5 m³)

Shipping Weight

	KFE 341	KFE 342	KFG 341	KFG 342
Shipping Weight	348 lbs (158 kg)	554 lbs (251 kg)	391 lbs (178 kg)	650 lbs (295 kg)

Heating Specifications

	KFE 341	KFE 342	KFG 341	KFG 342
Burners	n/a	n/a	3 burners	6 burners
BTU/hr	n/a	n/a	120,000 BTU/hr	240,000 BTU/hr
kW	22.0 kW	44.0 kW	31.7 kW	63.4 kW
Gas Line	n/a	n/a	0.50 in	0.75 in
