Wiring Diagrams

OFG and OGA 341 120VAC 60Hz 2W+G Drain switch wired N/C Wiring Diagram

OFE and OEA 341 208VAC 50/60Hz 3W+G Drain switch wired N/C Wiring Diagram

OFG and OGA 341 230VAC 50Hz 1N + G Drain switch wired N/C Wiring Diagram

OFE and OEA 341 380/400/415VAC, 50Hz, 22kW, 3N + G Drain switch wired N/C Wiring Diagram

OFE and OEA 341 240VAC 50/60Hz 3W+G Drain switch wired N/C Wiring Diagram

OFE and OEA 341 440/460/480VAC, 22kW, 3W+G Drain switch wired N/C Wiring Diagram

OFG 341 120V 2W+G Electromechanical, drain switch wired N/C Wiring Diagram

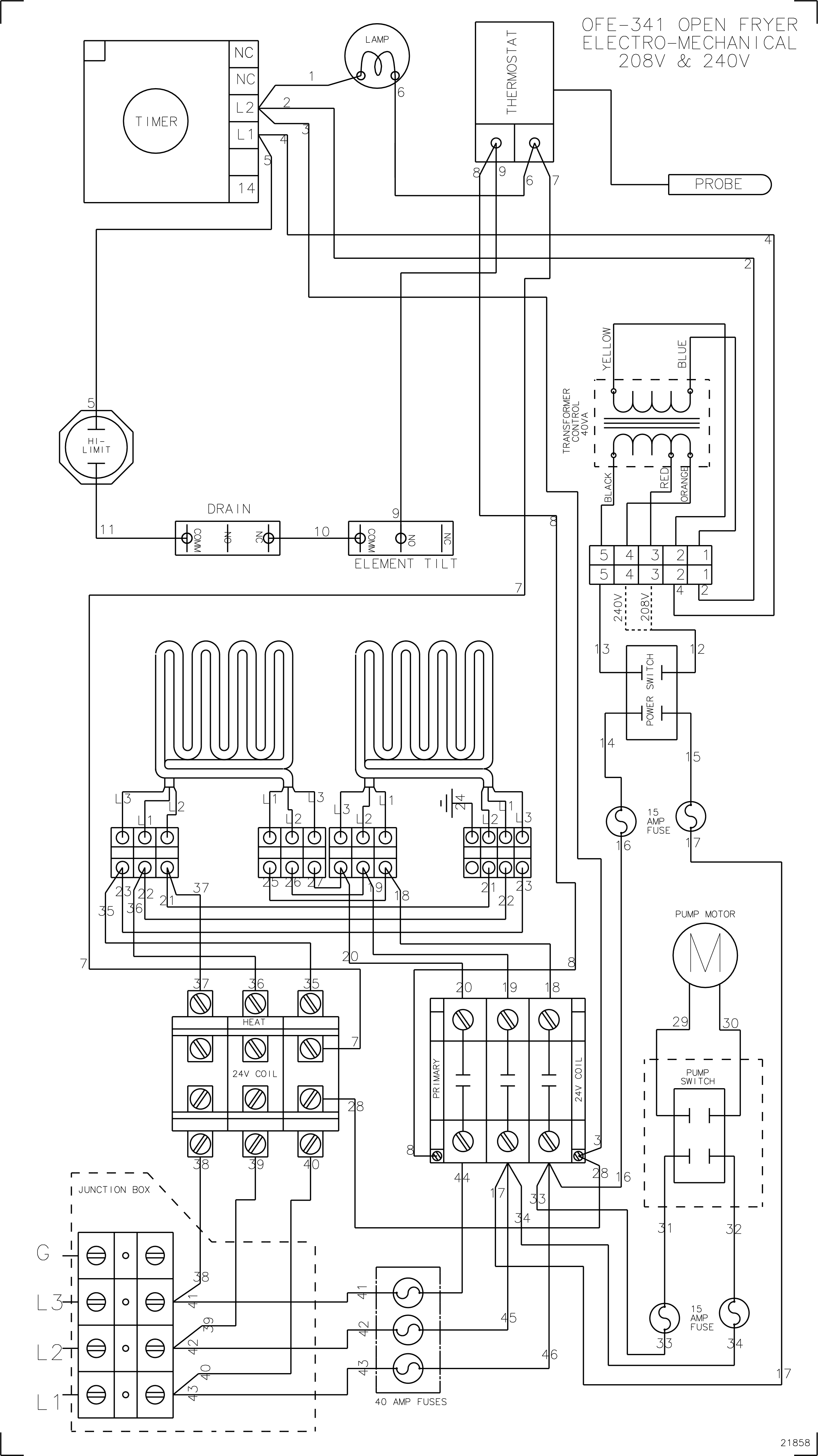

OFE 341 208/240VAC 50/60Hz Electromechanical drain switch wired N/C Wiring Diagram

OFG and OGA 341 120V, 60Hz, 2W+G Drain switch wired N/O Wiring Diagram

OFG and OGA 342 230VAC, 50Hz, 1N+G Drain switch wired N/O Wiring Diagram

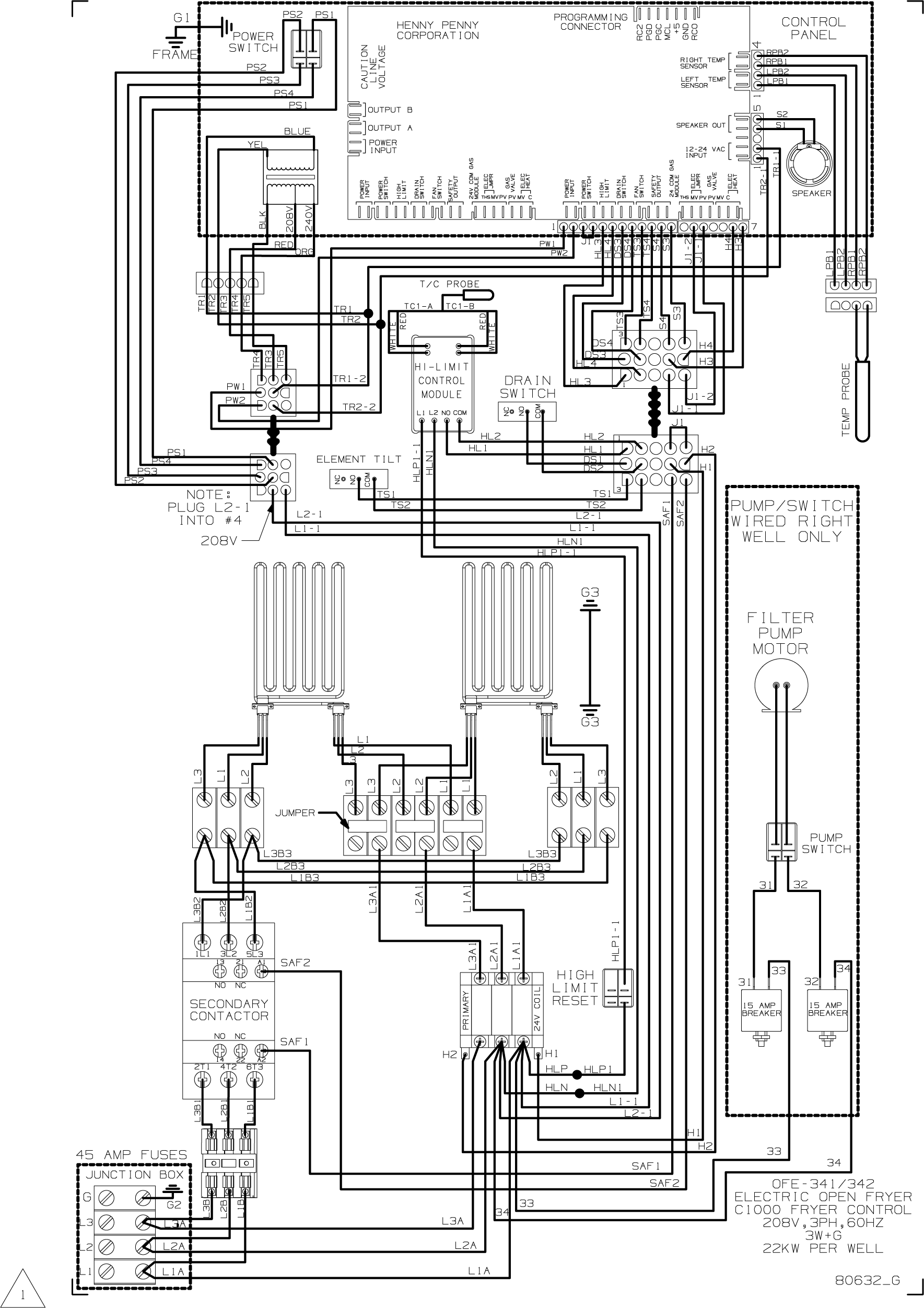

OFE and OEA 342 208VAC, 50/60Hz, 22 kW, 3W+G Drain switch wired N/O Wiring Diagram

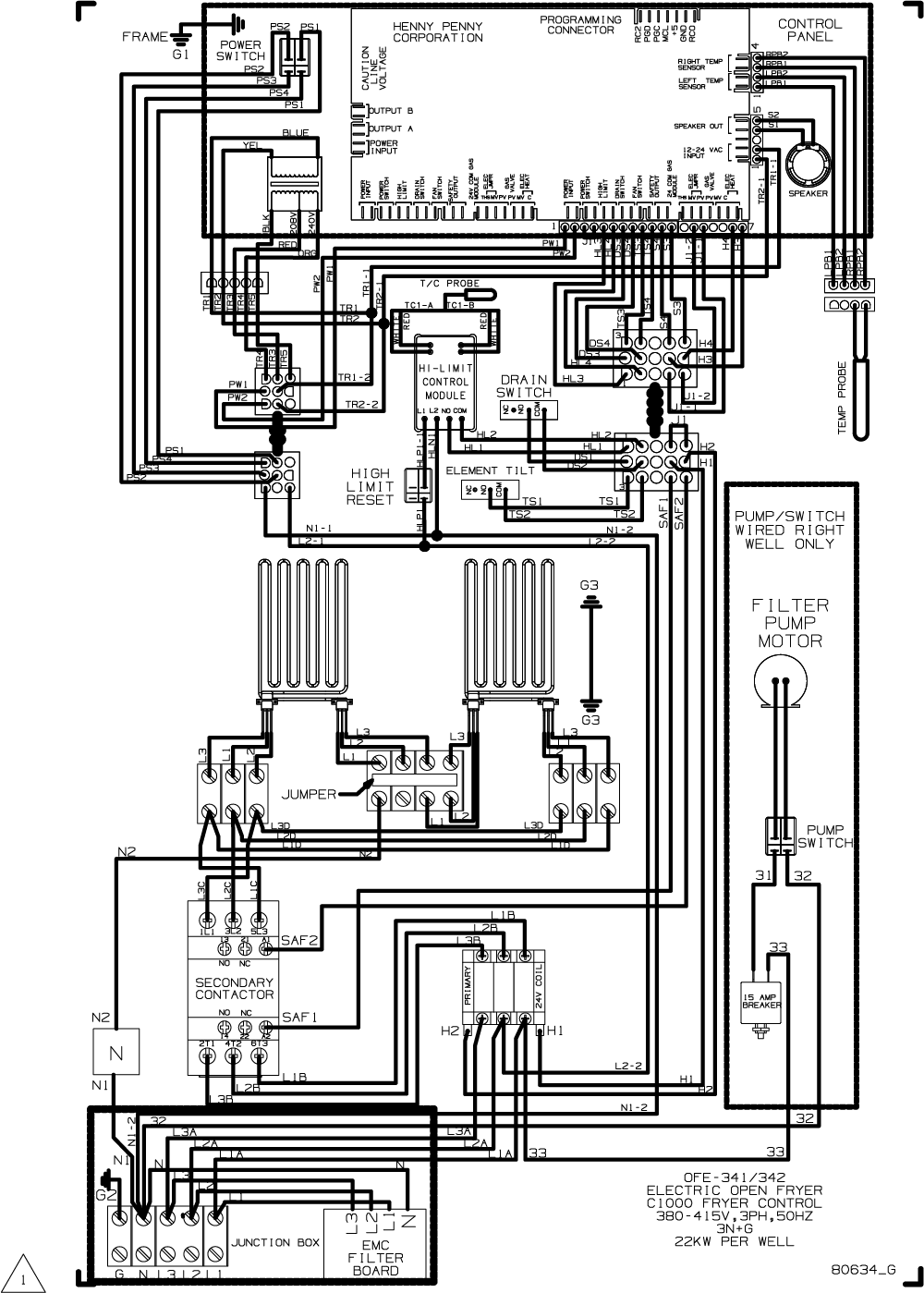

OFE and OEA 341 380/400/415VAC 50Hz, 22kw, 3N+G Drain switch wired N/O Wiring Diagram

OFE and OEA 342 240VAC 50/60Hz 22kW 3W+G Drain switch wired N/O Wiring Diagram

OFE 342 Electromechanical 208/240VAC 50/60Hz Drain switch wired N/O Wiring Diagram

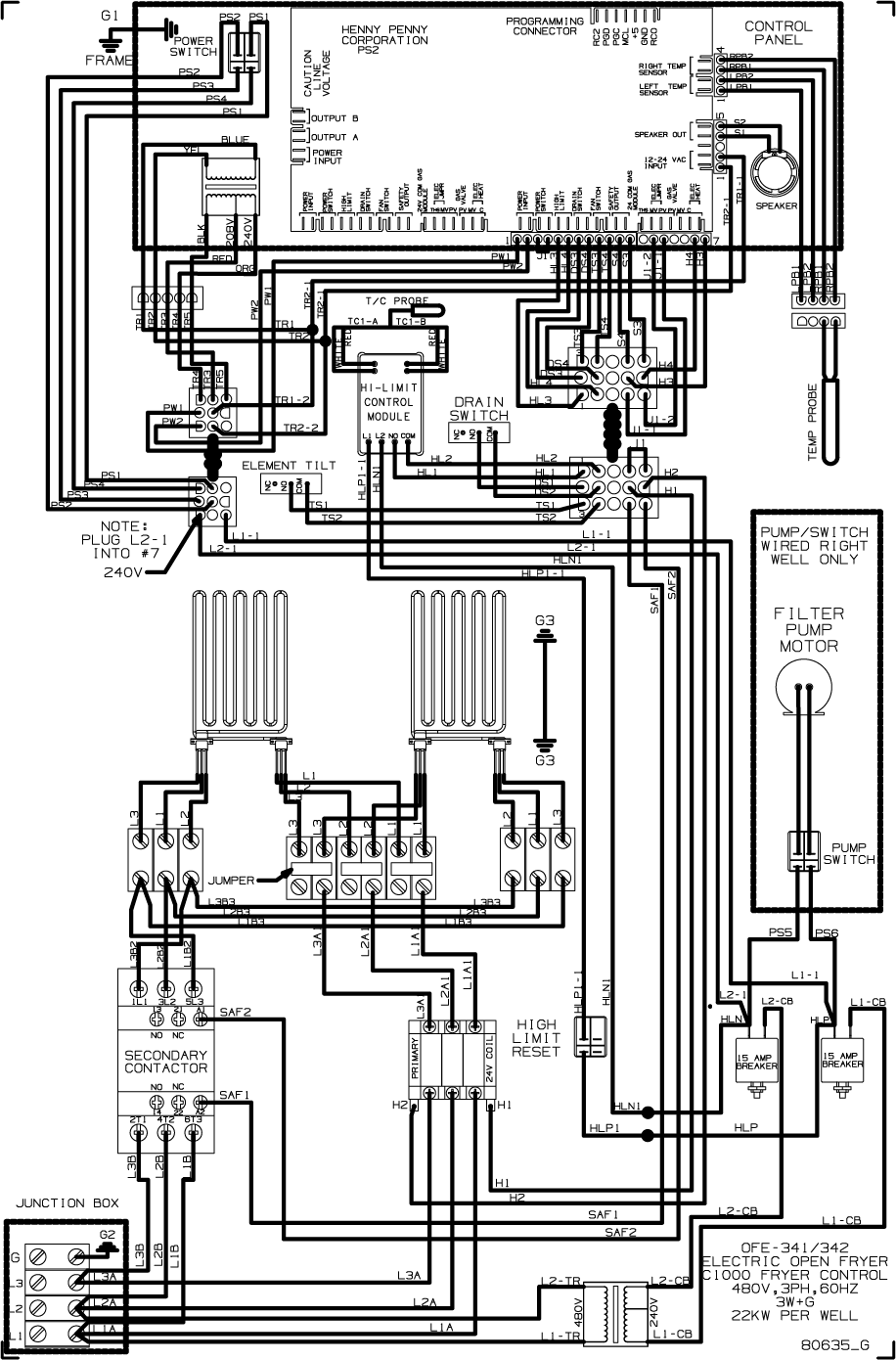

OFE and OEA 342 440/460/480VAC 22kw 3W+G Drain switch wired N/O Wiring Diagram

OFG 342 Electromechanical 120VAC 2W+G Drain switch wired N/O Wiring Diagram
