Inspecting the Condensation Box
Some locations may choose to do this procedure on a more frequent basis (i.e., quarterly, semi-annually, or other frequency).
|
To avoid electrical shock or property damage, move the power switch to OFF and disconnect power. |
Inspect that the condensation box and condensation drain line are clean, and free from debris. Use a flexible wire brush to remove debris from the condensation drain line.
-

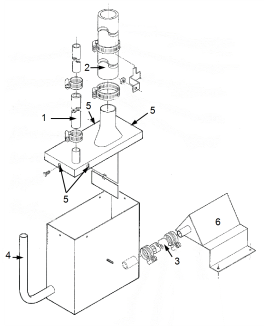

Remove rear cover of fryer.
-
Disconnect deadweight tube (1).
-
Disconnect steam exhaust hose (2).
-
Disconnect condensation drain line (3).
-
Disconnect plumbing from pressure solenoid outlet (4).
-
Remove condensation box mounting screws.
-
Cut silicone.
-
Remove the four screws fastening the lid to the box (5) and remove lid.
-
Remove any debris from the inside of the condensation box and clean.
-
Remove any debris in the condensation drain line and in the condensation drain outlet (6).
-
Seal lid to box with silicone.
-
Reassemble in reverse order.
