Inspecting the Steam Exhaust Hose

Some locations may choose to do this procedure on a more frequent basis (i.e., quarterly, semi-annually, or other frequency).

To avoid electrical shock or property damage, move the power switch to OFF and disconnect power.

Ensure that the steam exhaust hose is properly venting steam out the top rear of the fryer. Steam should be routed from the condensation box to the outlet at the top of the fryer without any steam leaks. Loose, missing, or damaged steam exhaust hoses are one of the leading causes of oil and grease build up on the cables, pulleys and rollers for the lid system. This grease build up can cause the lid to be hard to move up and down. Part numbers for each pressure model of 8-head fryer can be found here.

1. Verify the exhaust stack is not missing or damaged in such a way that would allow steam to escape in the rear of the fryer. Replace any damaged or missing exhaust hose following the procedure below.

2. Replace any missing, or damaged clamp and mounting screws where the hose attaches to the condensation box and hose attaches to the rear shroud.

Replacing the Exhaust Hose

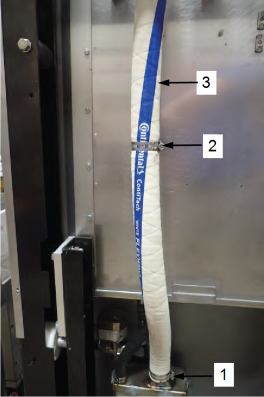

1. Remove the clamp (1) and mounting clamp (2).

2. Remove and discard the old steam exhaust hose (3).

3. Install the new hose fastening the mounting screw and the clamp as shown.
