Specifications

Electrical Specifications

Volts	Phase	Hertz	kW/vat	Amps/vat	Wire
208	3	60	22	62	3+G
480	3	50	22	27	3+G

Oil Capacity

65 lbs (29.5 kgs) per full vat

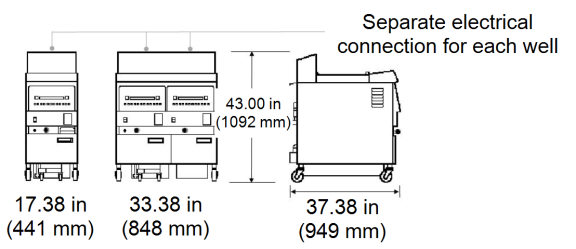

Dimensions

Uncrated Dimensions

	410	420
Width	17.38 in (441 mm)	33.38 in (848 mm)
Depth	37.38 in (949 mm)	37.38 in (949 mm)
Height	43.00 in (1092 mm)	43.00 in (1092 mm)

Crated Dimensions

	410	420
Width	40 in (1016 mm)	38 in (965 mm)
Depth	25 in (635 mm)	39 in (991 mm)
Height	53 in (1346 mm)	55 in (1397 mm)
Volume	31 ft³ (0.86 m³)	49 ft³ (1.4 m³)

Shipping Weight

	410	420
Shipping Weight	384.00 lb (174.18 kg)	551.00 lb (249.93 kg)

Heating Specifications

	410	420
kW	22 kW	44 kW
