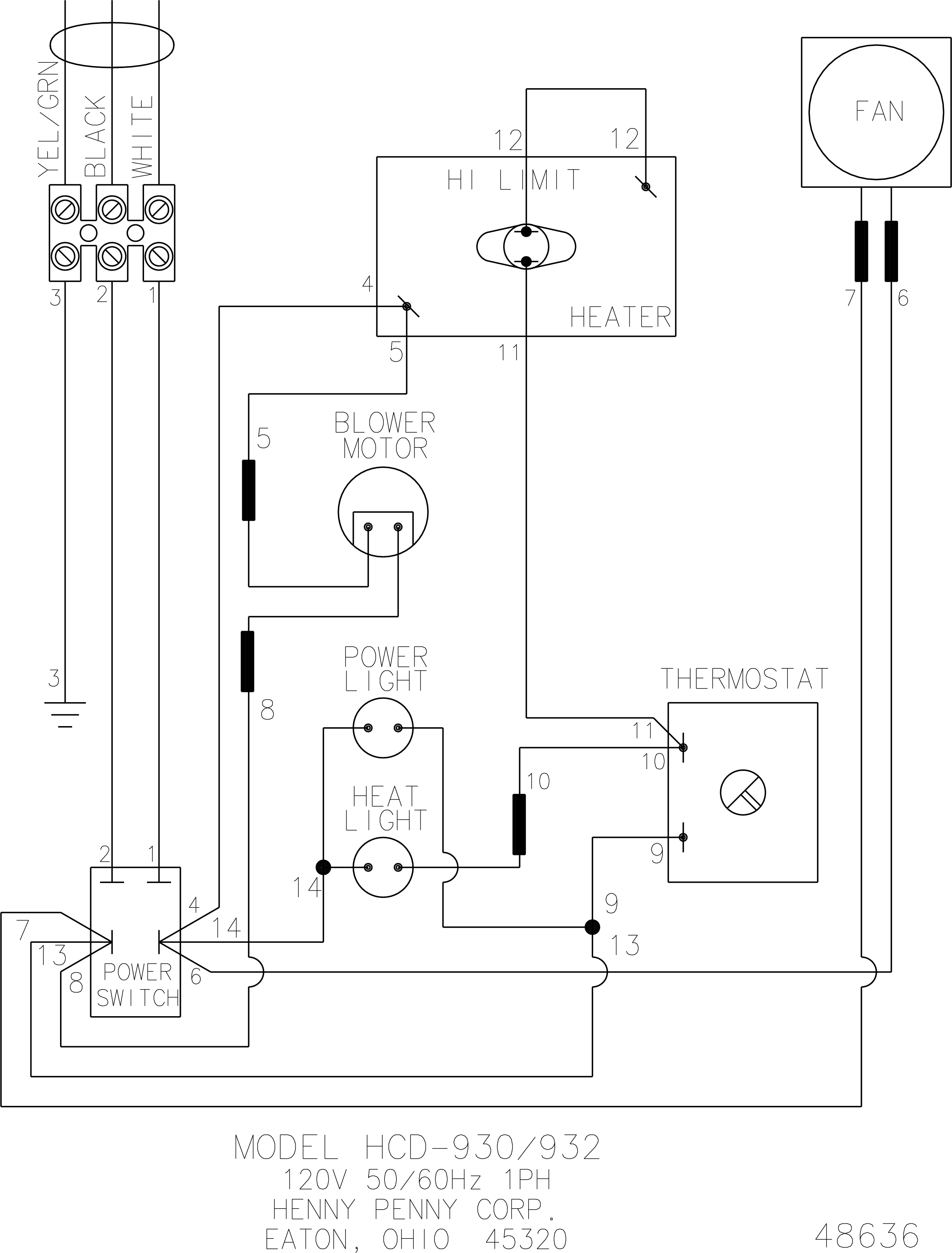

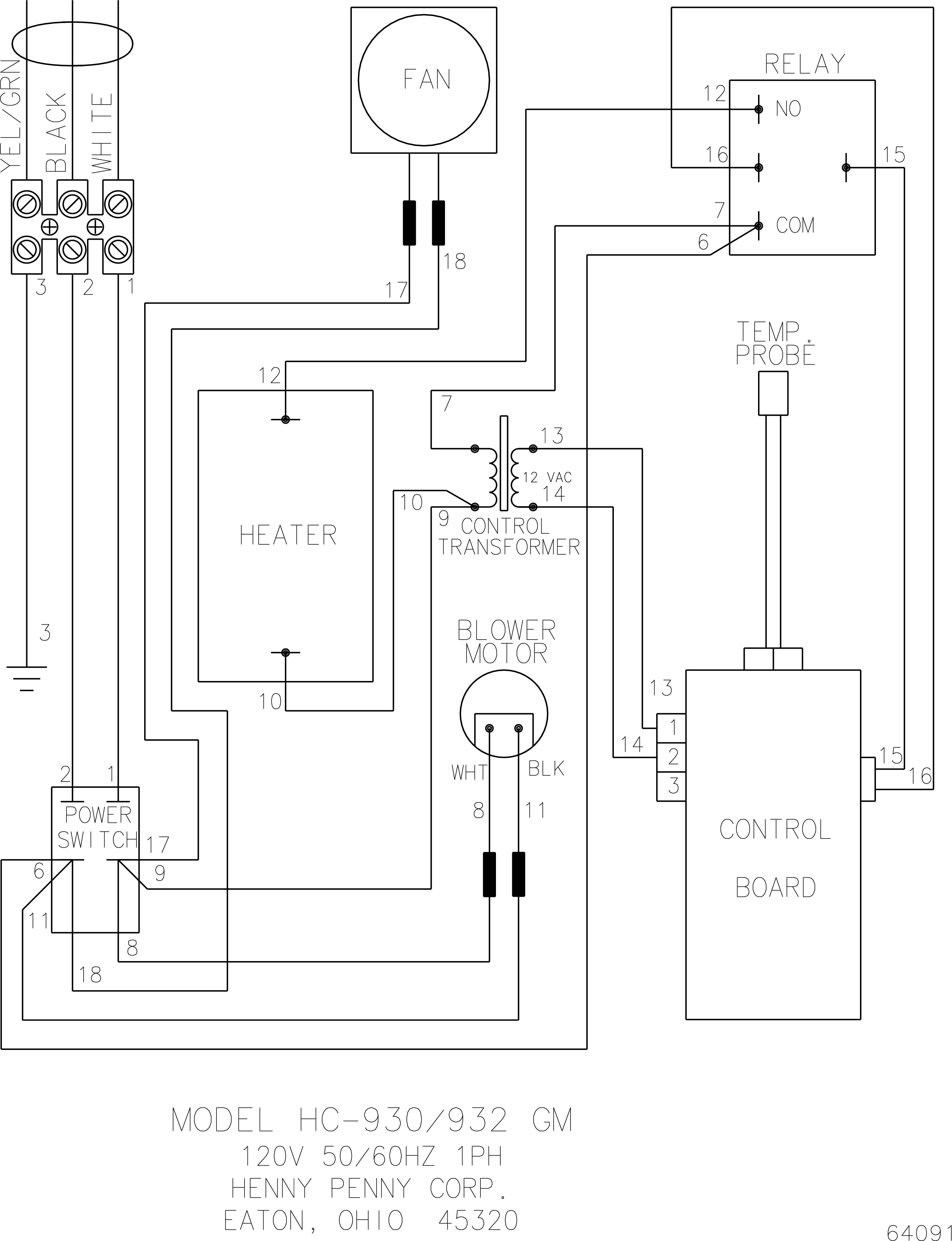

HCD 930, 932, 120V, 50/60hz, 1 phase Wiring Diagram

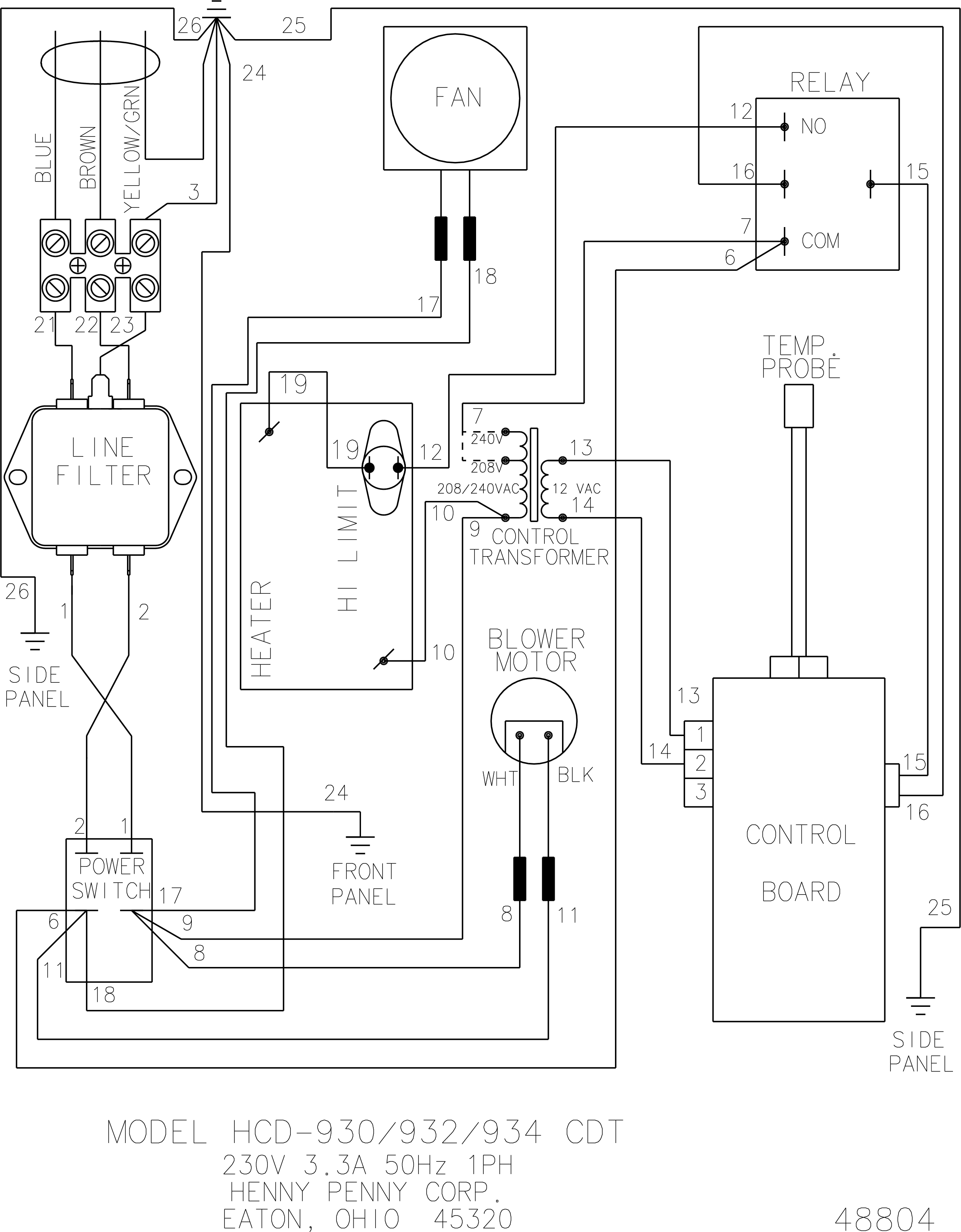

HCD 930, 932, 934, 230V, 50 Hz, 3.3A, 1 phase, CDT, Wiring Diagram

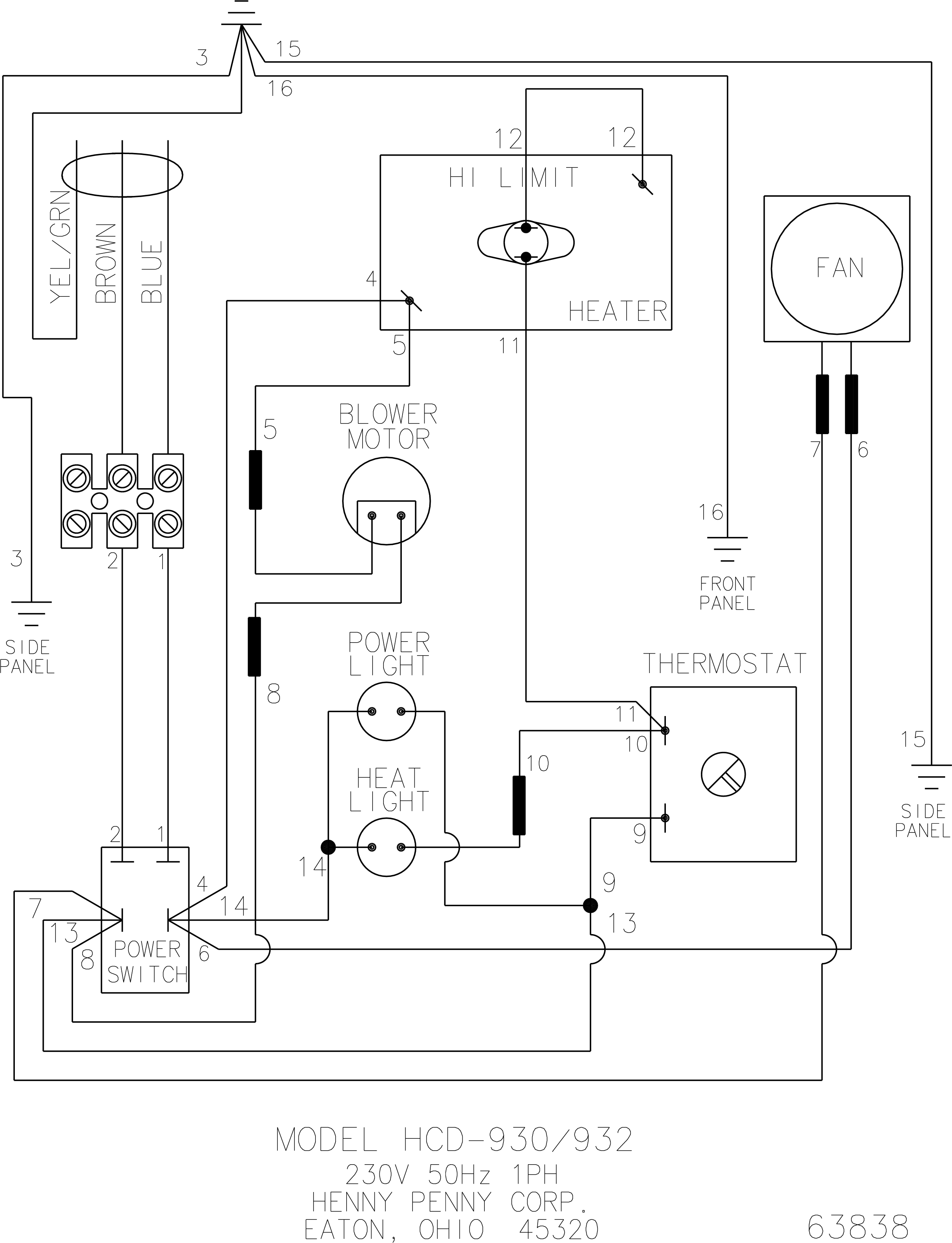

HCD 930, 932, 230V, 50 Hz, 1 phase Wiring Diagram
