HEC 1XX Wiring Diagrams
HEC 103, 3 shelf, 208/240V, 1Ph, 220-240V, 3 Phase Wiring Diagram
HEC 103, 3 shelf, 208, 240, 220-240V, 3 phase, SN: HC0603015 & BELOW Wiring Diagram
HEC 103, 3 and 4 shelf, 208V, 240V, 220-240V, 1phase, SN: HC0603016 & ABOVE Wiring Diagram
HEC 103, 4 shelf, 208/240V, 1ph, 220-240V, 3 phase, Wiring Diagram
HEC 103, 3 and 4 shelf, 208, 240, 220-240V, 1 phase, SN: HC0603015 & BELOW Wiring Diagram
HEC 103, 4 shelf, 208, 240, 220-240V, 3 phase, SN: HC0603016 & ABOVE Wiring Diagram
HEC 103, 3 and 4 shelf, 230V, 1 phase, Wiring Diagram
HEC 103, 3 and 4 shelf, 230V, 1 phase, SN: HC0708011 & BELOW, Wiring Diagram
HEC 103, 3 and 4 shelf, 230V, 1 phase, SN: HC0708012 & ABOVE, Wiring Diagram
HEC 104, 3 and 4 shelf, 208/240V, 1phase, 220-240V, 3 phase, Wiring Diagram
HEC 104, 3 and 4 shelf, 208, 240, 220-240V, 3 phase, SN: HC0603014 & ABOVE, Wiring Diagram
HEC 104, 3 and 4 shelf, 208, 240, 220-240V, 3 phase, SN: HC0603013 & BELOW Wiring Diagram

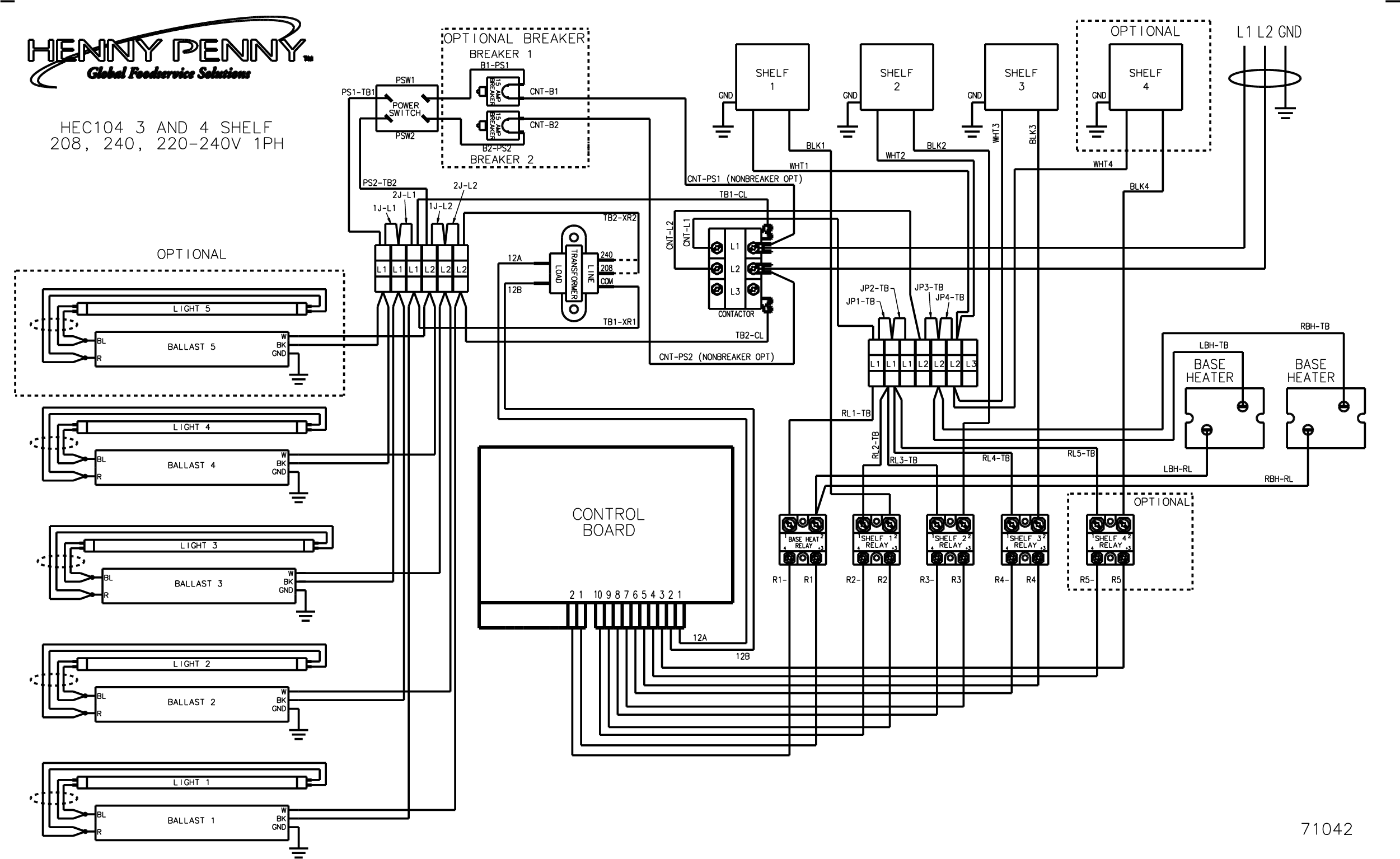

HEC 104, 3 and 4 shelf, 208, 240, 220-240V, 1 phase, SN: HC0603014 & ABOVE Wiring Diagram
HEC 104, 3 and 4 shelf, 380-415V, 3 phase Wiring Diagram
HEC 103, 104, 3 and 4 shelf, 380-415V, 3 phase, SN: HC0708011 & BELOW Wiring Diagram
HEC 103, 104, 3 and 4 shelf, 380-415V, 3 phase, SN: HC0708012 & ABOVE Wiring Diagram

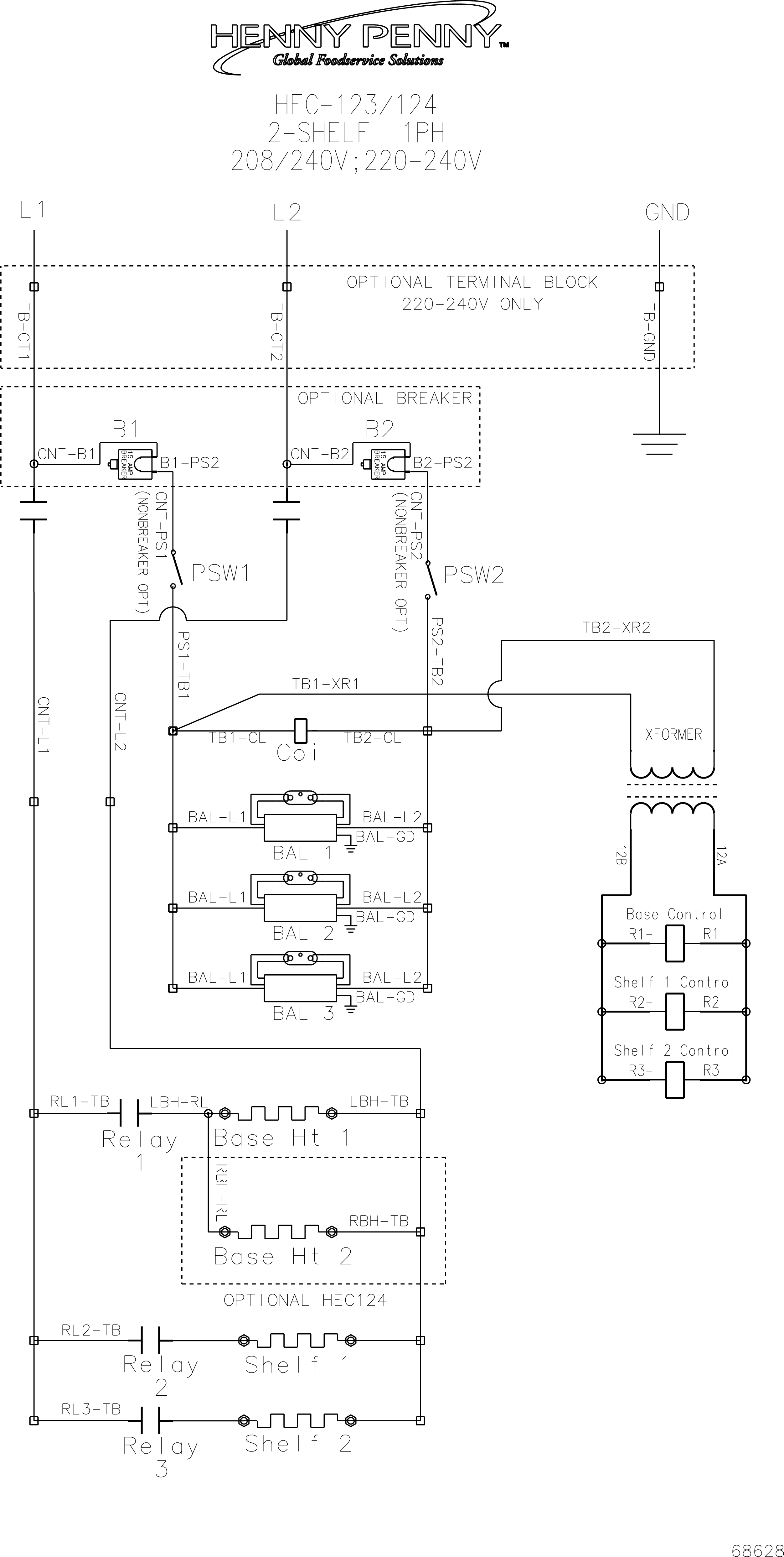

HEC 123, 124, 2 shelf, 208/240V, 220-240V, 1 phase Wiring Diagram
HEC 123, 124, 2 shelf, 208, 240, 220-240V, 1 phase, SN: HC0603019 & BELOW Wiring Diagram
HEC 123, 124, 2 shelf, 208, 240, 220-240V, 1 phase, SN: HC0603020 & ABOVE Wiring Diagram
HEC 123, 124, 2 shelf, 230V, 1 phase, Wiring Diagram
HEC 123, 124, 2 shelf, 230V, 1 phase, SN: HC0708011 & BELOW Wiring Diagram
HEC 123, 124, 2 shelf, 230V, 1 phase, SN: HC0708012 & ABOVE Wiring Diagram
