Specifications

Electrical

Models	Volts	Phase	Hertz	Amps	Wire
HHC 980	120	1	50/60	24.0	2+G
HHC 980	120	1	50/60	22.3	2+G
HHC 980	208	1	50/60	13.8	2+G
HHC 980	240	1	50/60	12.0	2+G
HHC 980	240	1	50/60	11.2	2+G
HHC 980	220-240	1	50/60	11.6	1NG

Water Capacity and Connections

Water reservoir

• 3 gallons (11.4 liters) capacity
• 2 gallons (7.6 liters) during operation

Connections

• Cold water supply - 1/4 inch
• Drain connection - 1 inch or 3/4 inch

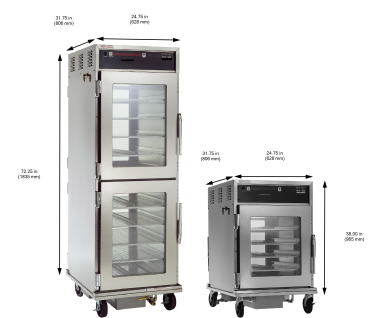

Dimensions

Uncrated Dimensions

Model	Height	Width	Depth
HHC 980	72.25 in (1835 mm)	24.75 in (628 mm)	31.75 in (806 mm)
HHC 983	38.00 in (965 mm)	24.75 in (628 mm)	31.75 in (806 mm)

NOTE: Two HHC-983 stands are available. One gives the total height of 59 inches (1499 mm), and a taller version, gives the total height of 68 inches (1727 mm).

Crated Dimensions

Model	Length	Depth	Height	Volume	Shipping Weight
HHC 980	75 in (1900 mm)	36 in (900 mm)	31 in (790 mm)	48 ft3 (1.4 m3 )	367 lbs (167 kg)
HHC 983					220 lbs (100 kg)
