Inspecting the Steam Exhaust Hose Insert

Some locations may choose to do this procedure on a more frequent basis (i.e., quarterly, semi-annually, or other frequency).

To avoid personal injury, do not remove any condensation box components while fryer is in use.

Only perform this procedure when the fryer is cool and disconnected from the power source.

The deadweight is not captive inside the steam stack and can fall out. Keep the steam stack in the upward orientation or the deadweight can fall out and may cause personal injury or damage to the deadweight.

Ensure the steam exhaust hose is undamaged and working within specification by doing the following:

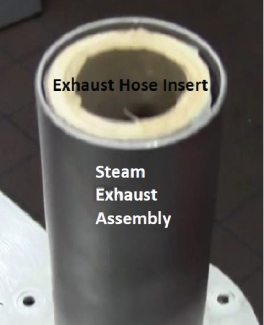

Visually inspect the steam exhaust hose insert and ensure it is secure inside the steam stack. If the hose is missing, collapsed or missing, replace it by doing the following:

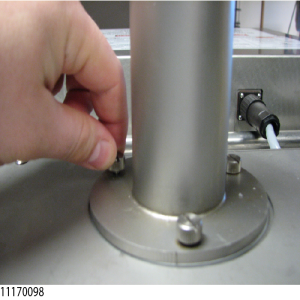

1. Remove the steam exhaust.

2. Cut out the old hose insert if necessary.

3. Install (glue in) the new hose insert using a silicone rated for applications of 220°F (104°C) or higher and allow to dry and set.

4. Continue to the next inspection or reinstall components as applicable.
