Applies to:
Specifications
Electrical Specifications
Refer to the following table for supply wiring and fusing.
| Model | Volts | Phase | Hertz | Kw | Amps |
|---|---|---|---|---|---|
|
OFE |
200-208 | 3 | n/a | 14.4 | 40 |
| OFE | 220-240 | 3 | n/a | 14.4 | 40 |
| OFE | 440-480 | 3 | n/a | 14.4 | 17 |
| OFE | 380-415 | 3 | n/a | 14.4 | 20 |
| OFG | 120 | 1 | 50/60 | n/a | 12 |
|
OFG |
230 |
1 |
50 |
n/a |
6 |
Vat Dimensions
OFE and OEA 32X
| Location | Measurement |
|---|---|
|
side to side |
13.75 inches |
| front to rear | 16.00 inches |
OFG and OGA 32X
| Location | Measurement |
|---|---|
|
side to side |
12.70 inches |
| front to rear | 16.00 inches |
| side wall thickness | 2.38 inches |
| center depth | 18.90 inches |
Oil Capacity
OFE/OFG/ODE/ODG/OEA/OGA 32X - 65 lb (30 liters) per full vat
OFE 32X - 25 lbs (12 liters) per split vat

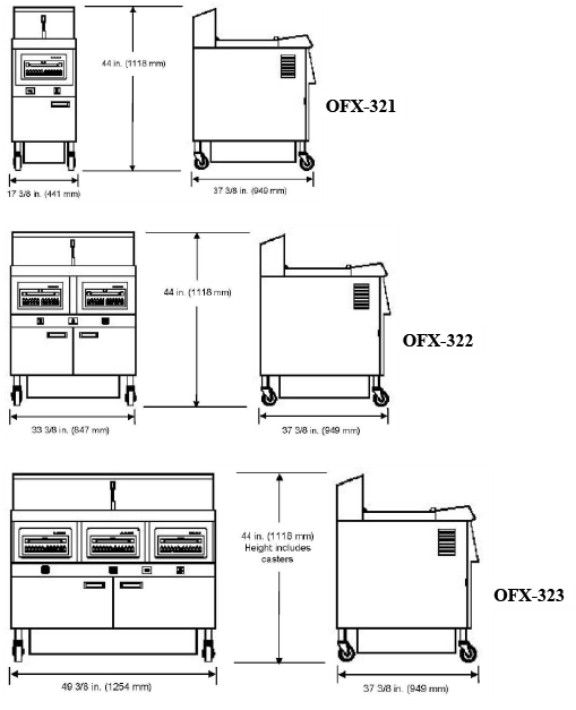

Dimensions
Flue and Gas Line Dimensions
All views are from rear of fryers.
