OFX 32X Wiring Diagrams

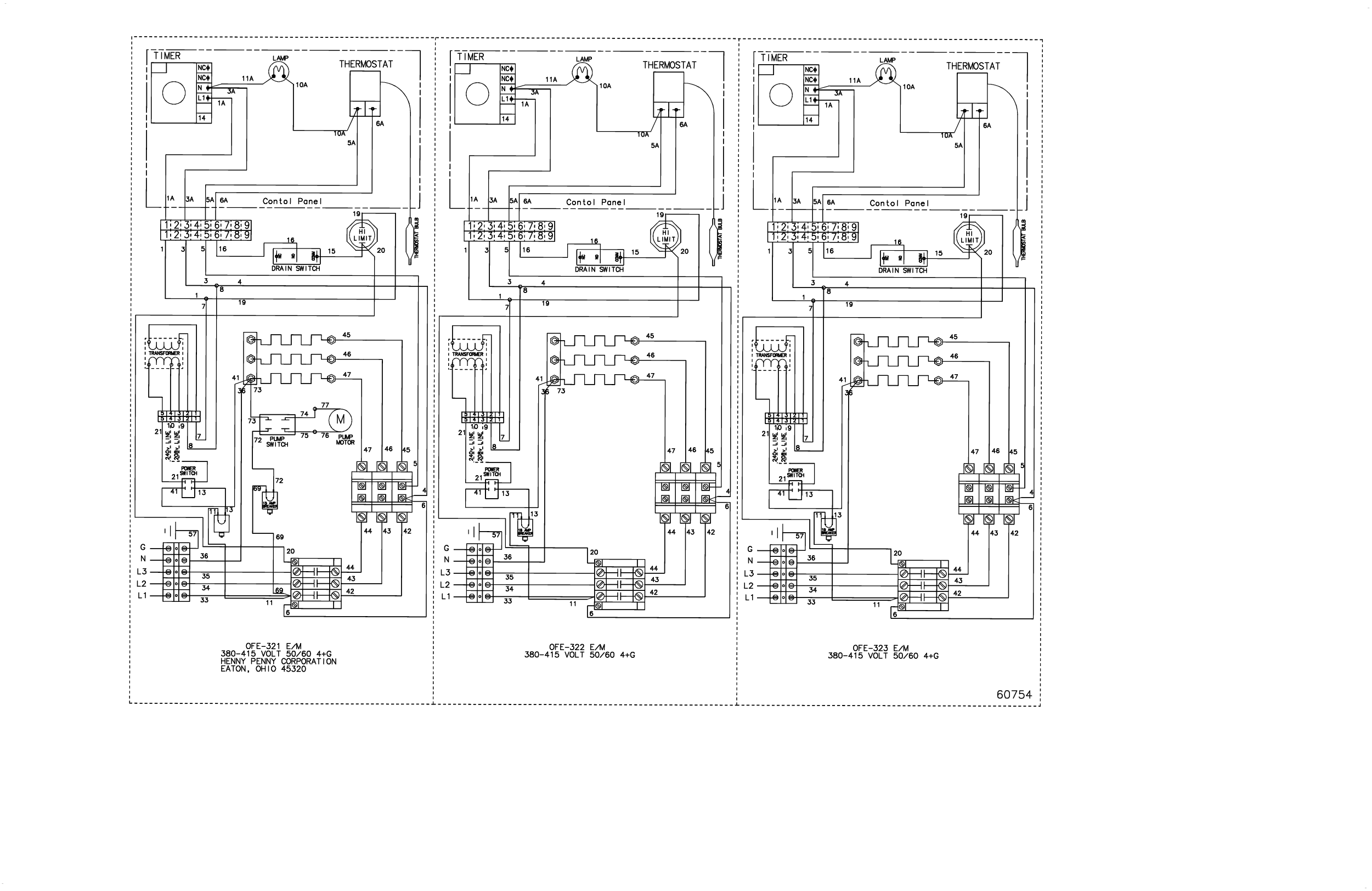

60754 K OFE-32X, E/M, 380-415 Volt, 50/60 Hz, 4+G (Before 3/2008)

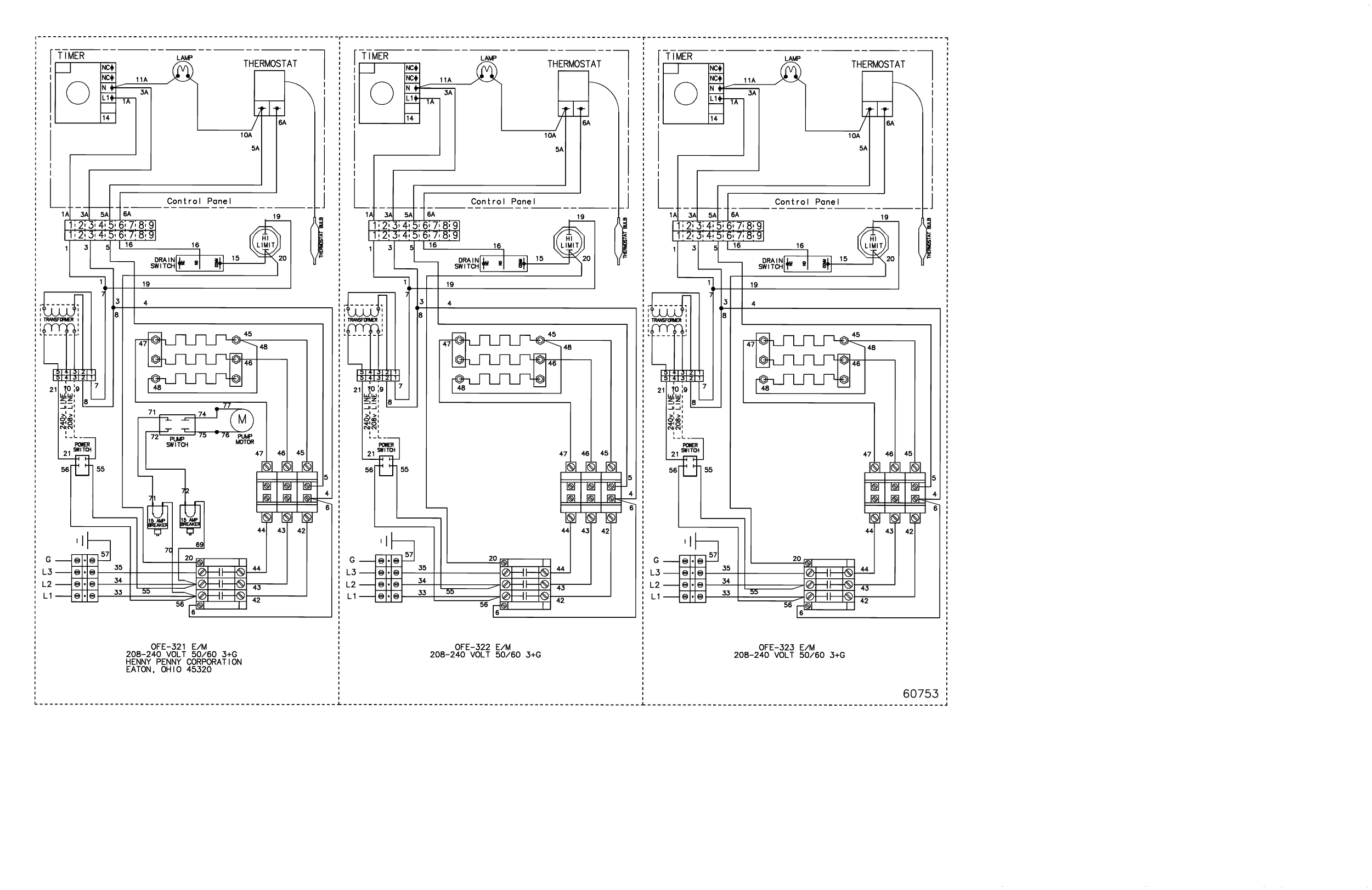

60753 D OFE-32X, E/M, 208-240 Volt, 50/60 Hz, 3+G (Before 3/2008)

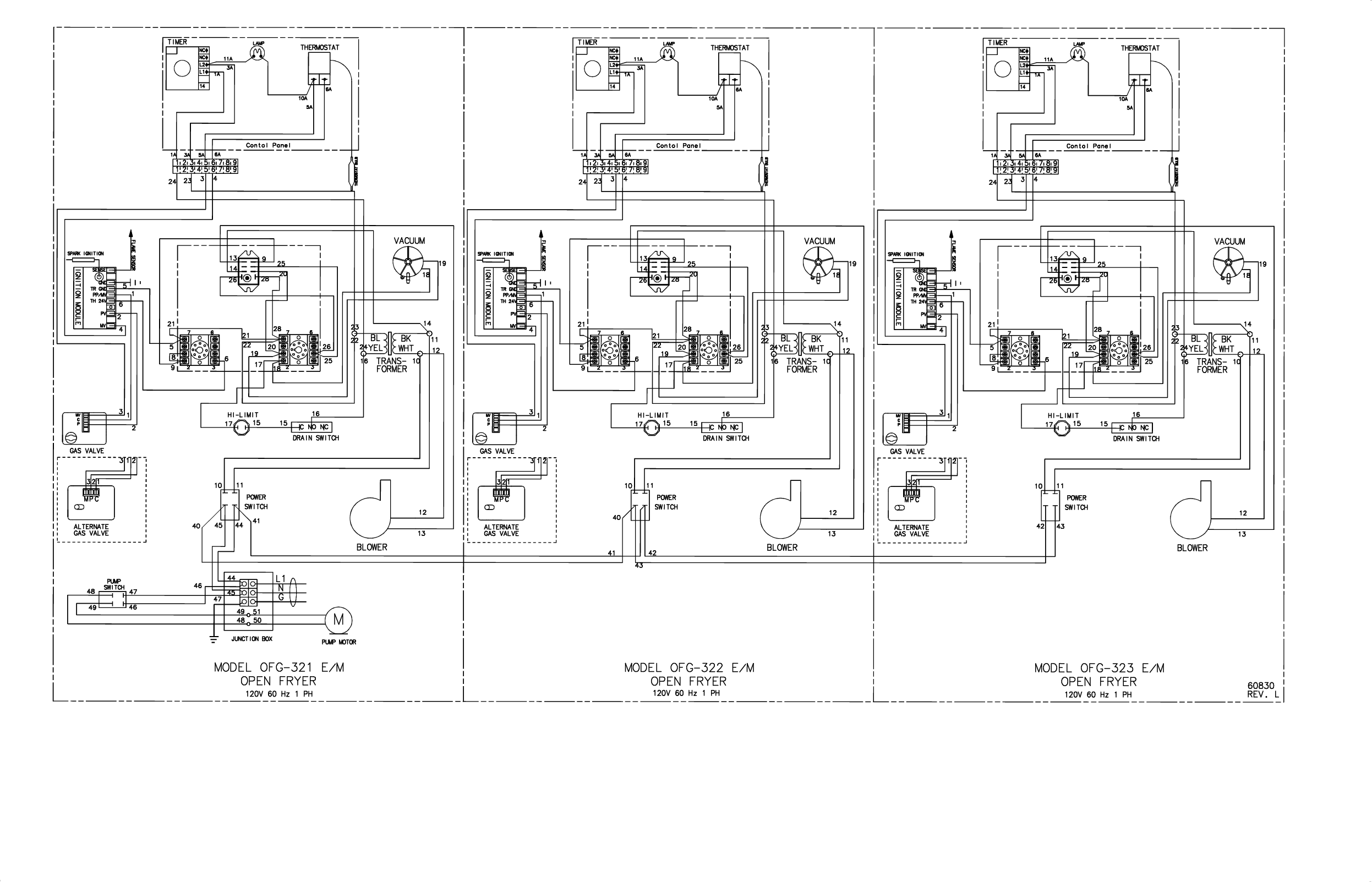

60830 D OFG-32X, E/M, 120 Volt, 60 Hz, 1 Phase (Before 3/2008)

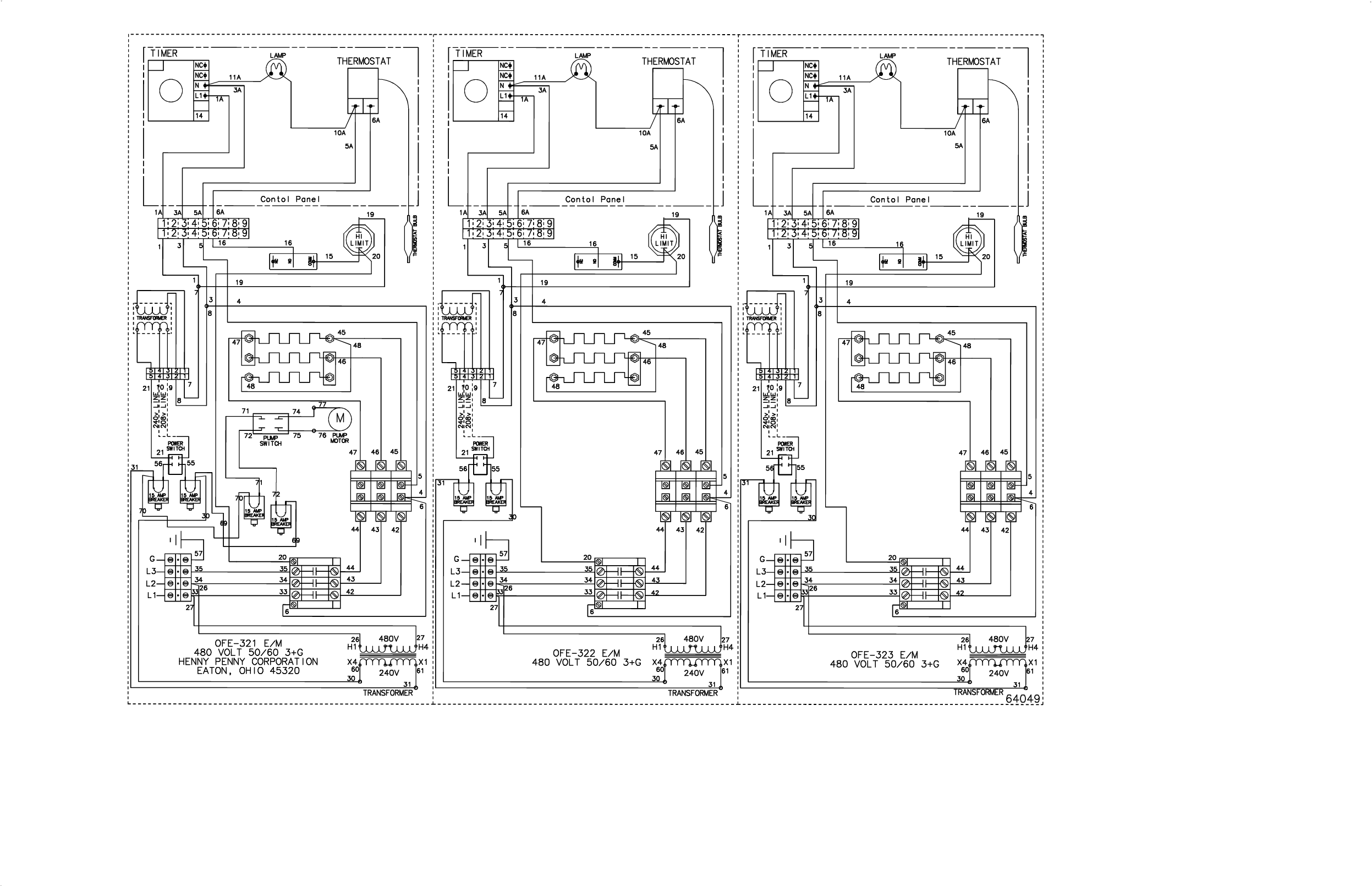

64049 D OFE-32X, E/M, 480 Volt, 50-60 Hz, 3+G (Before 3/2008)

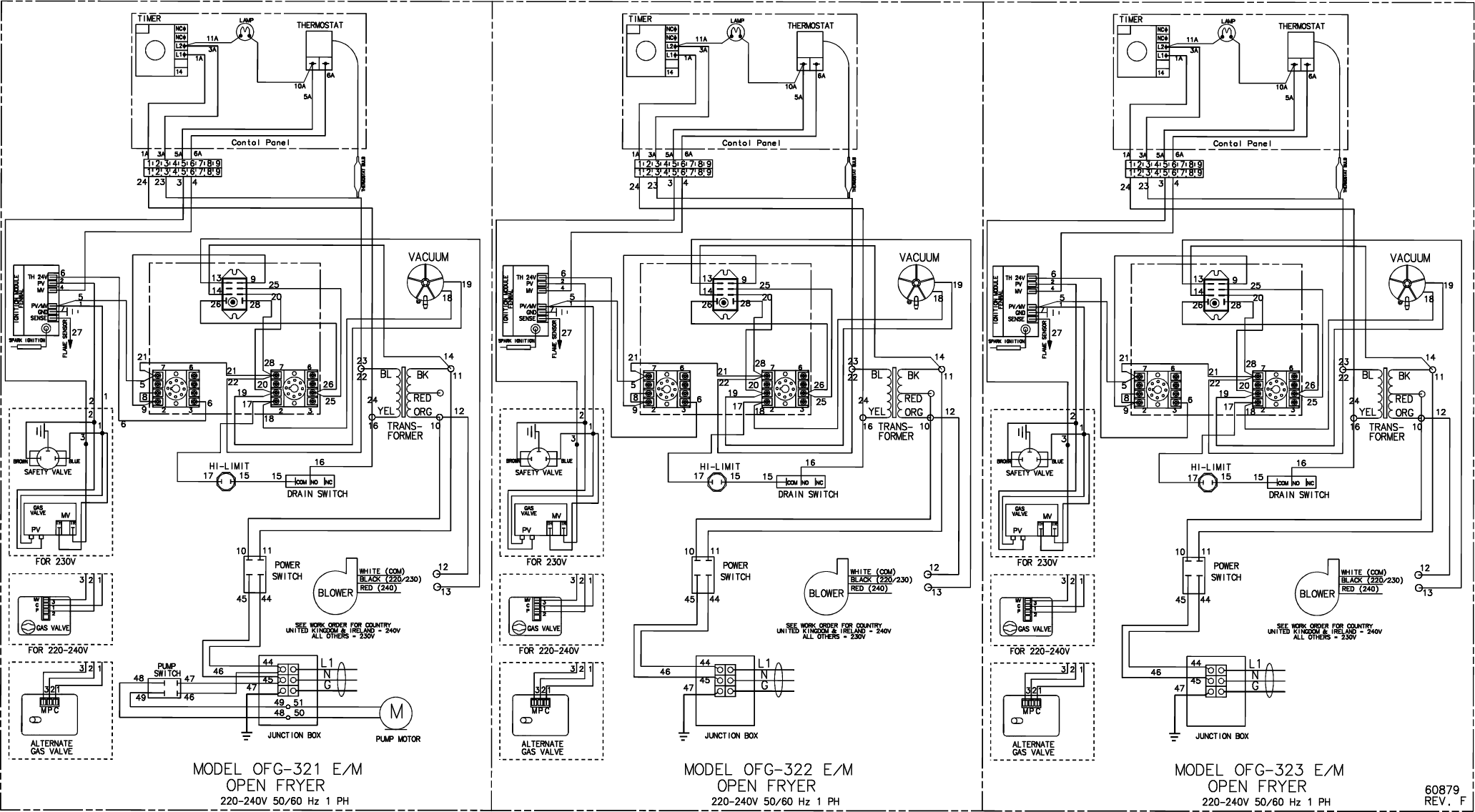

60879 D OFG-32X, E/M, 220-240 Volts, 50-60 Hz, 1 Phase (Before 3/2008)

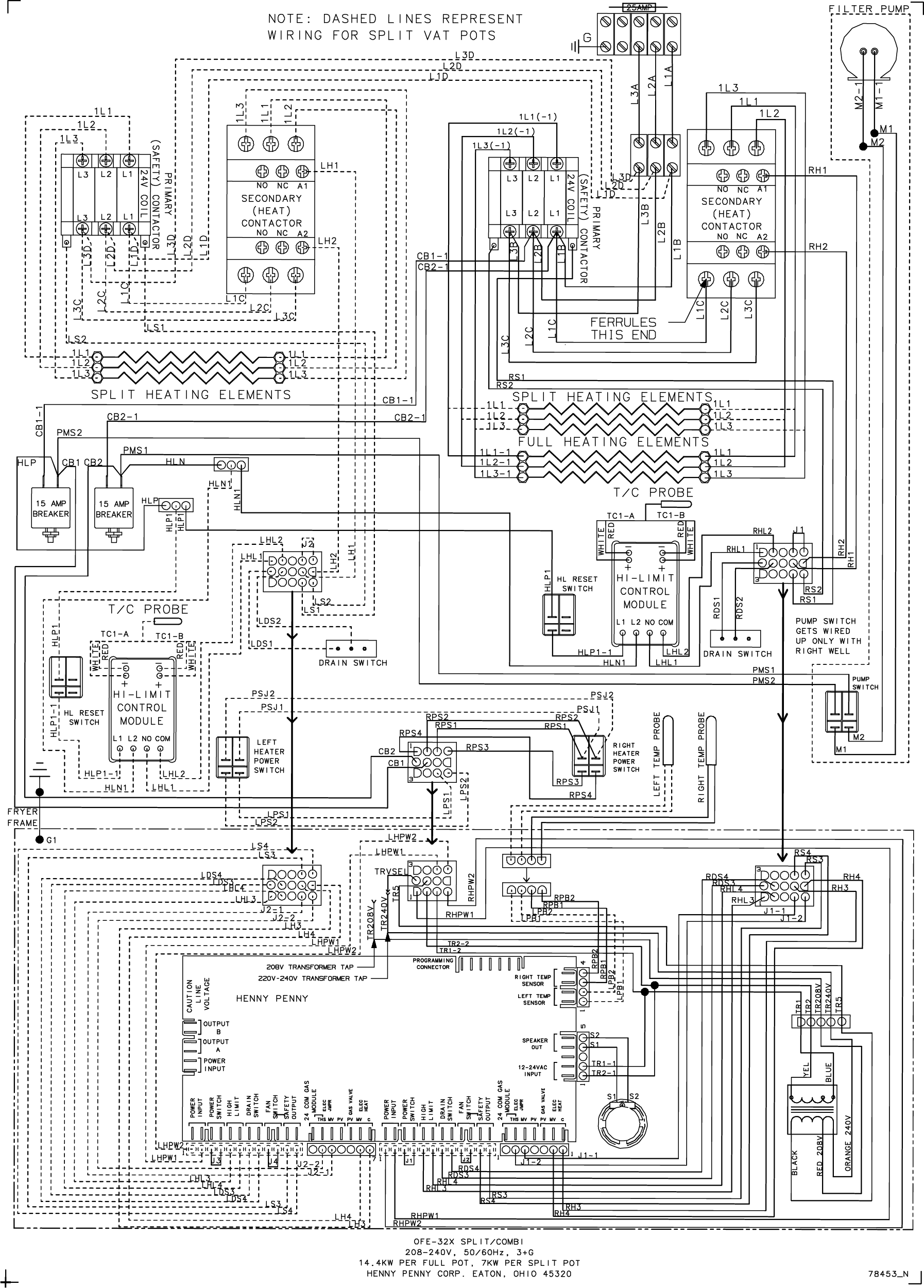

78453 N OFE-32X, C1000, 208-240 Volts, 50-60 Hz, 3+G

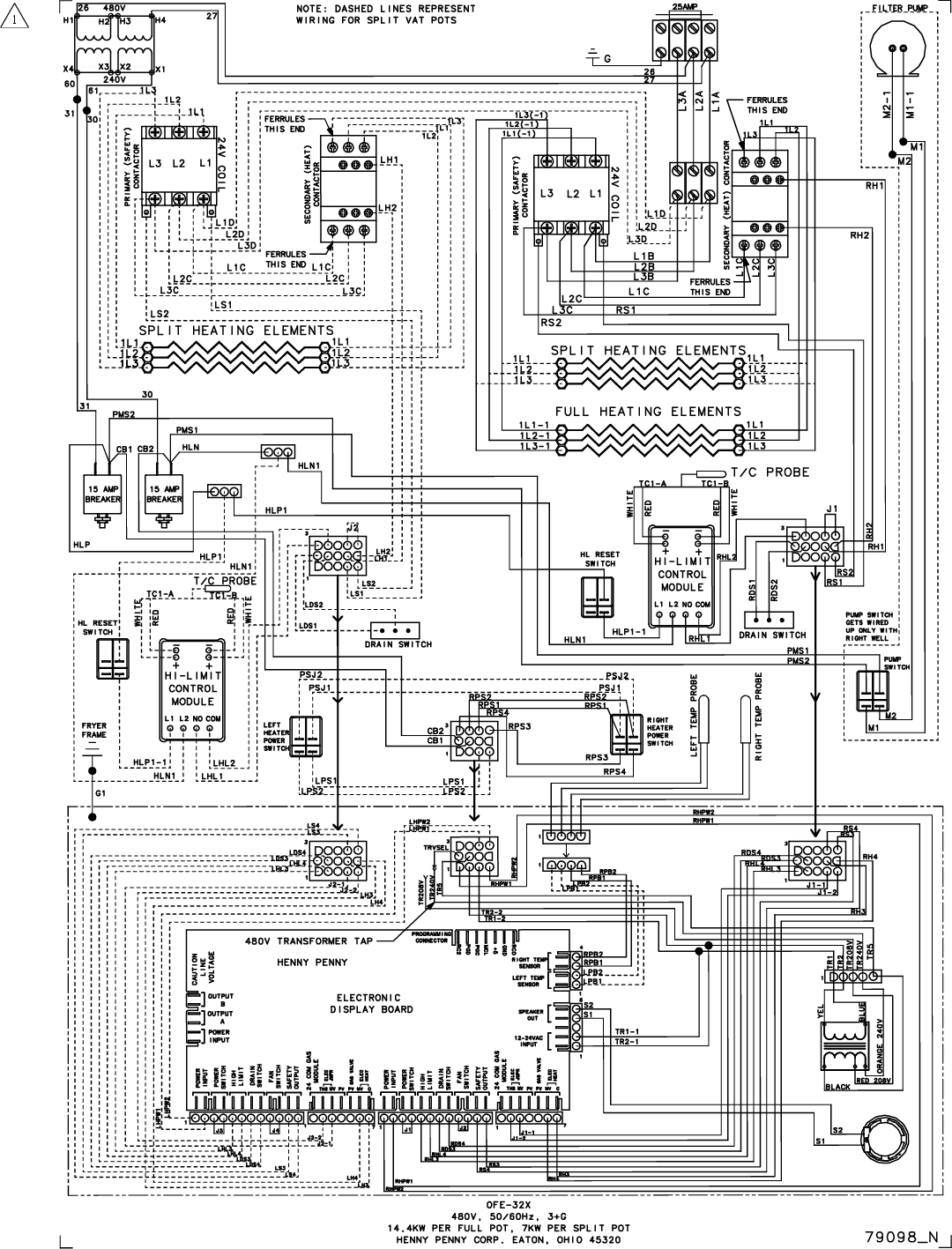

79098 N OFE-32X, C1000, 480 Volt, 50-60 Hz, 3+G

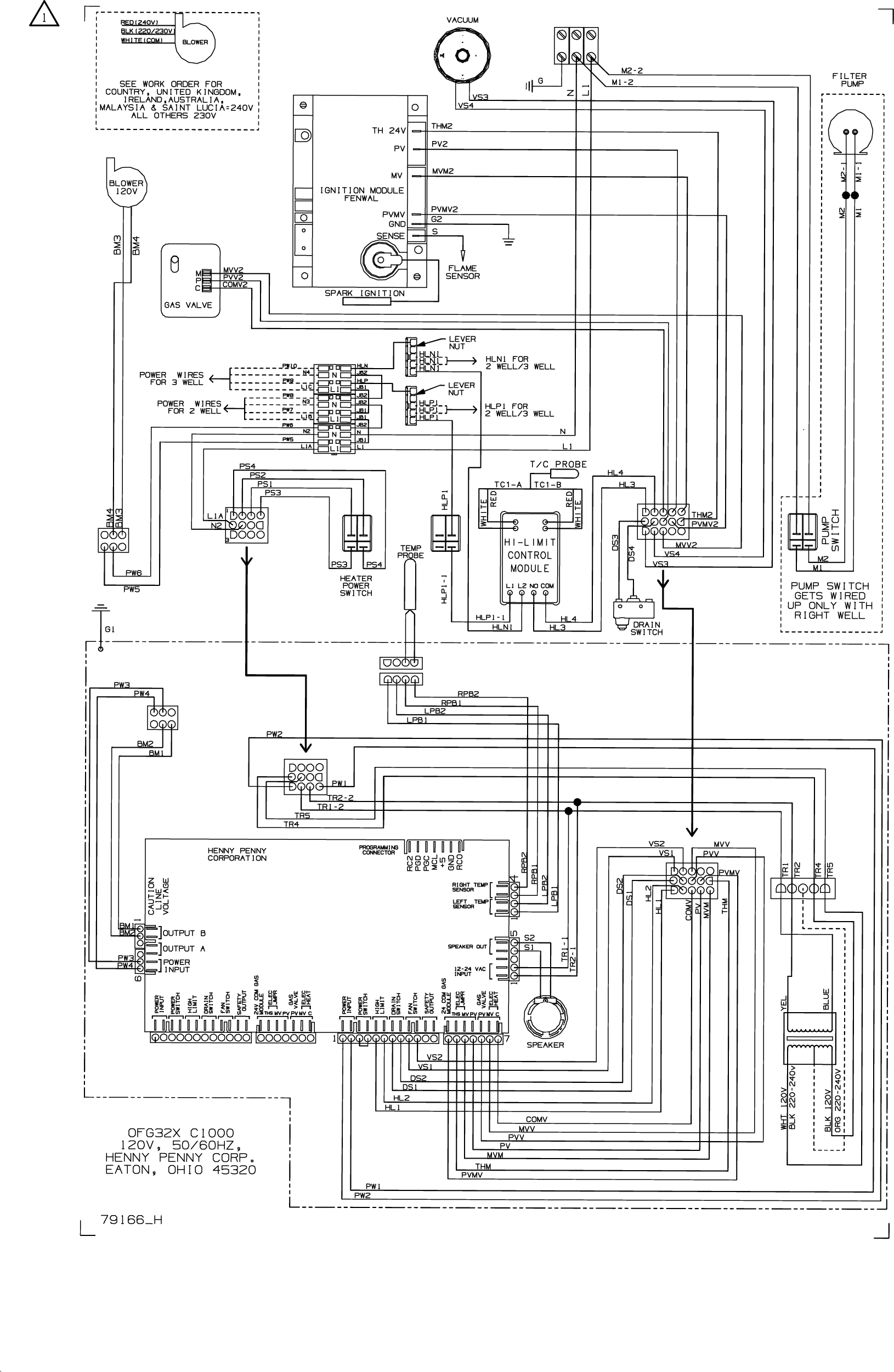

79166 H OFG-32X, C1000, 120 Volt, 50-60 Hz

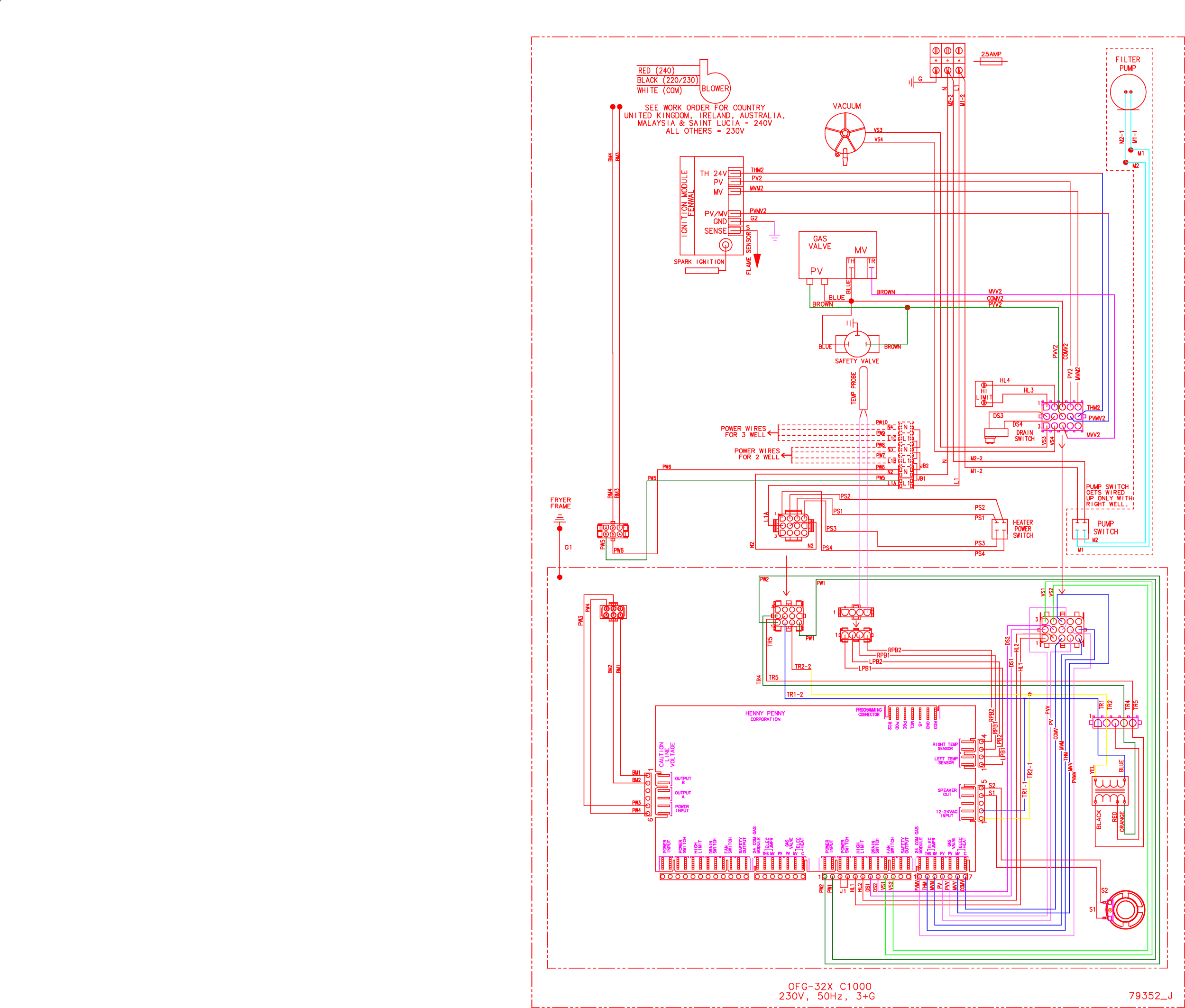

78352 J OFG-32X, C1000, 230 Volt, 50 Hz, 3+G

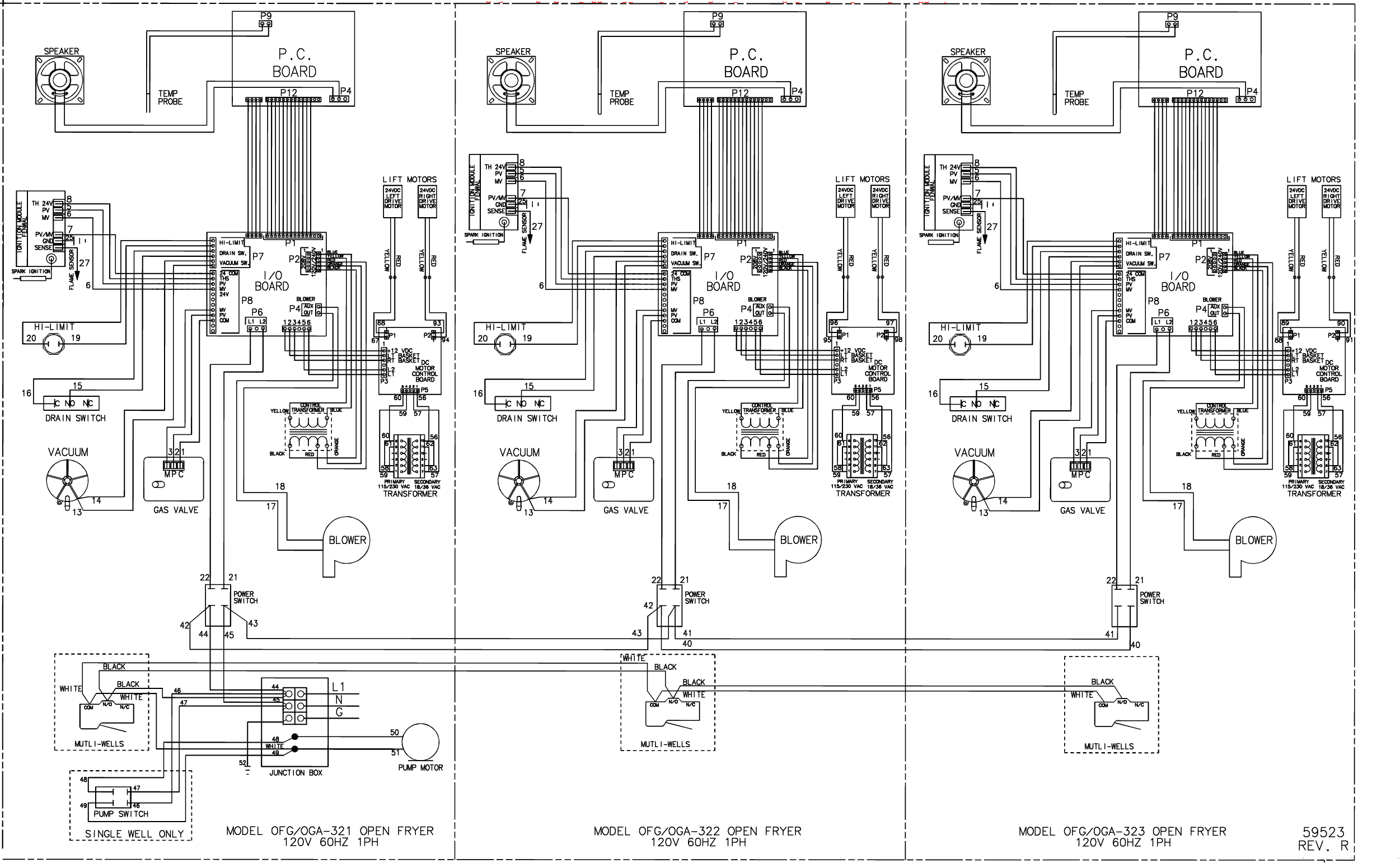

59523 R OFG/OGA-32X, C8000, 120 Volt, 60 Hz, 1 Phase (Before 7/2009)

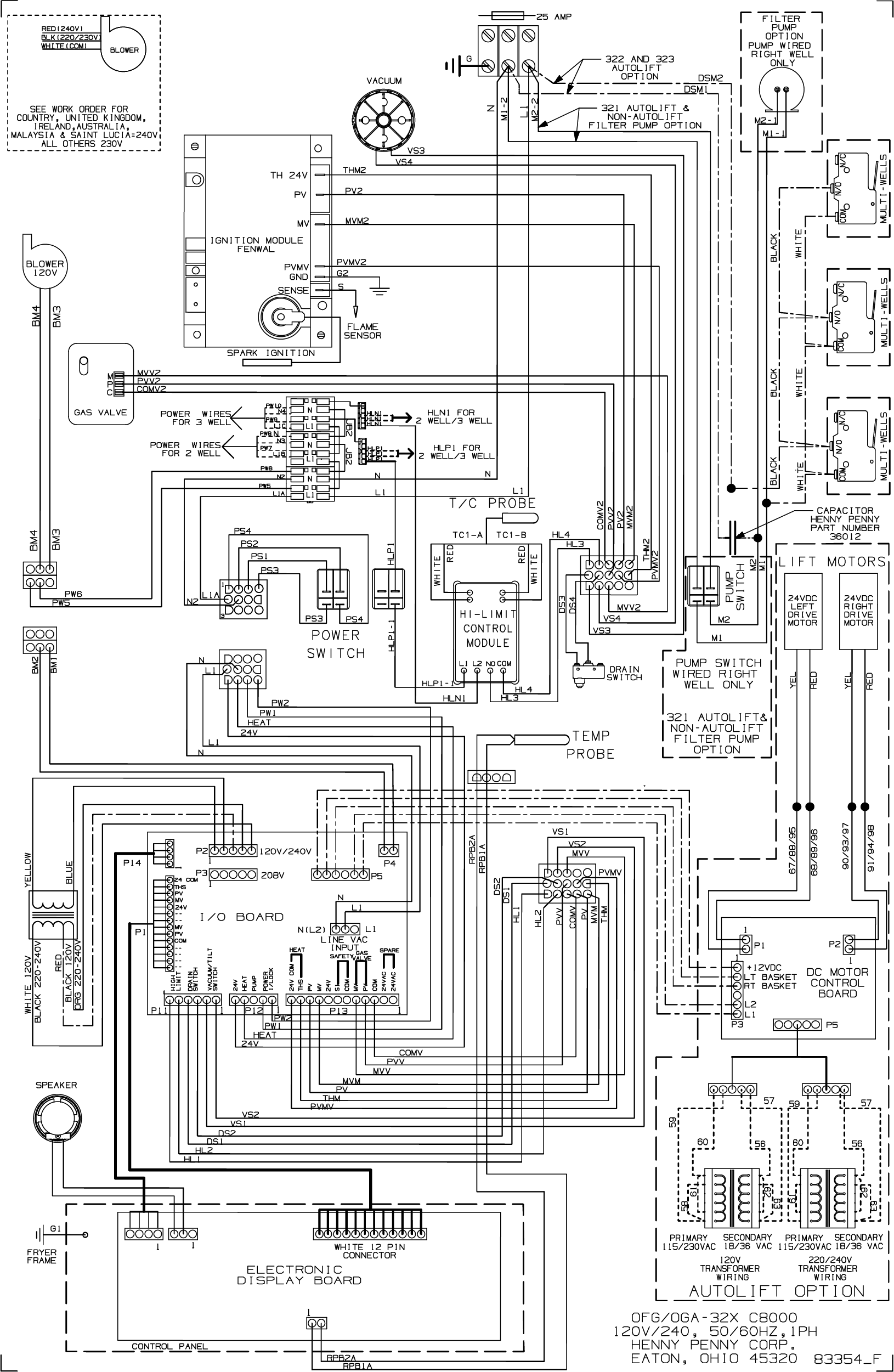

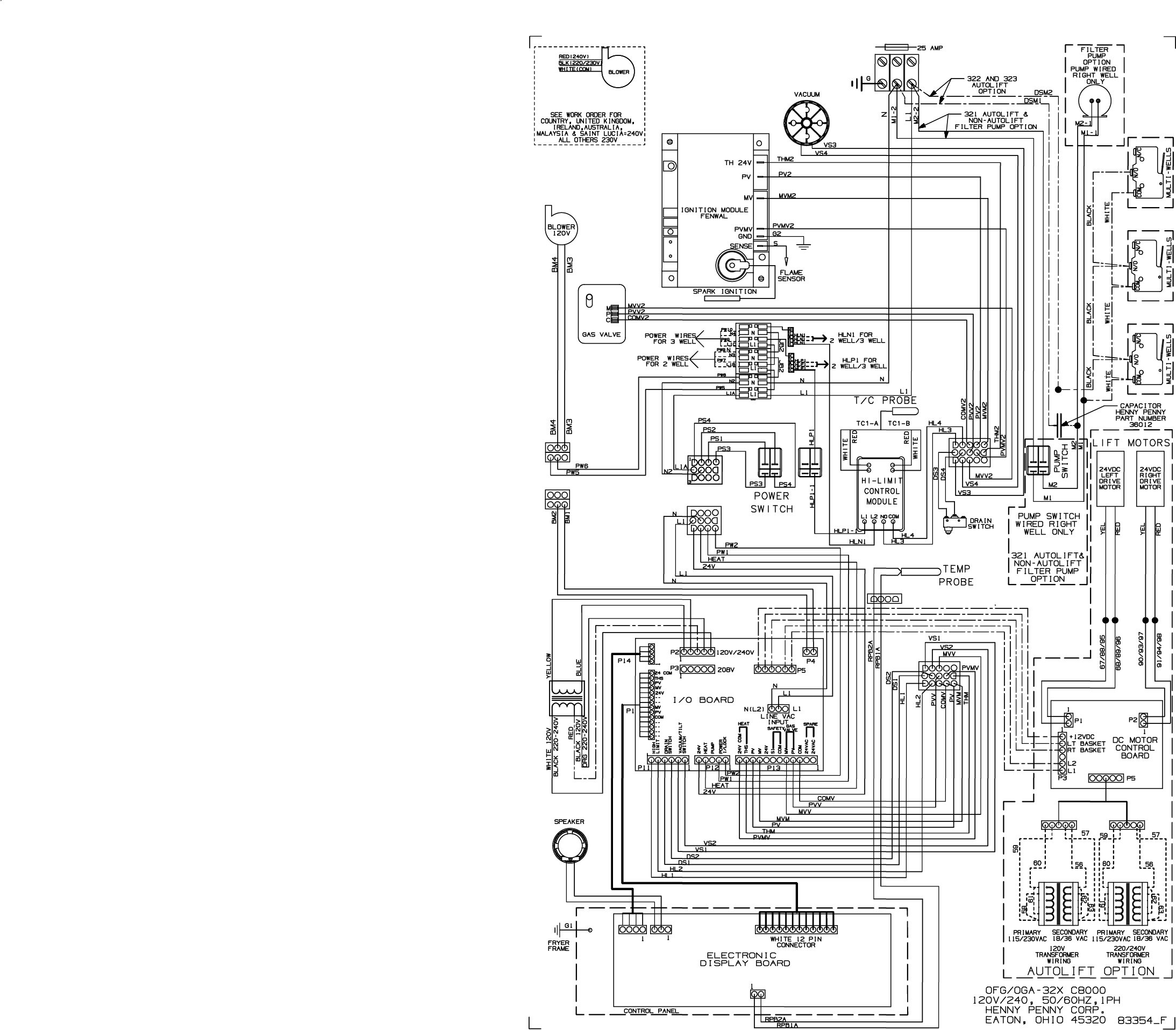

83354 F OFG-OGA-32X, C8000, 120-240 Volt, 50/60 Hz, 3+G (After 7/2009)

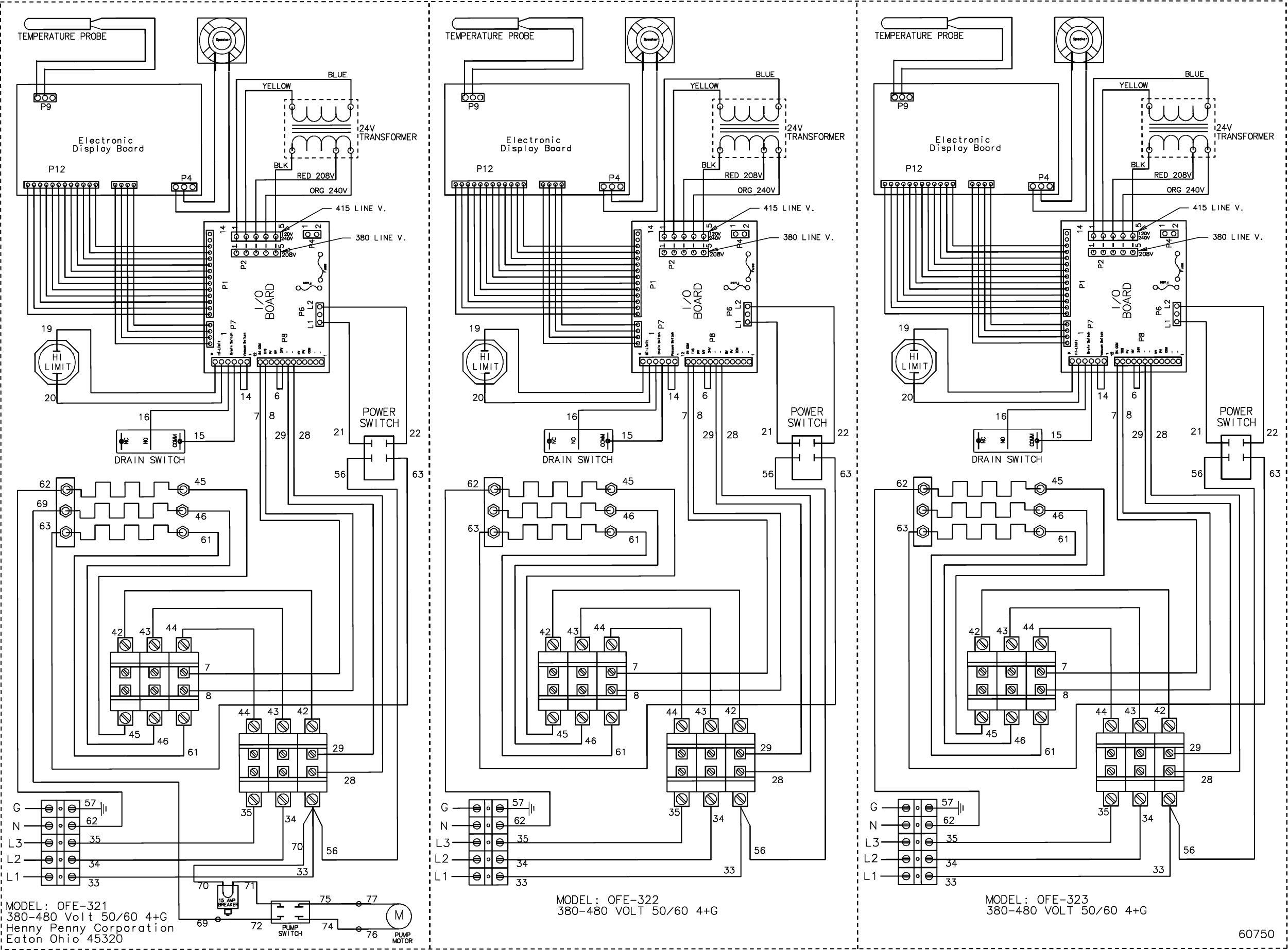

60750 P OFE-32X, C8000, 380-480 Volts, 50-60 Hz, 4+G (Before 7/2009)

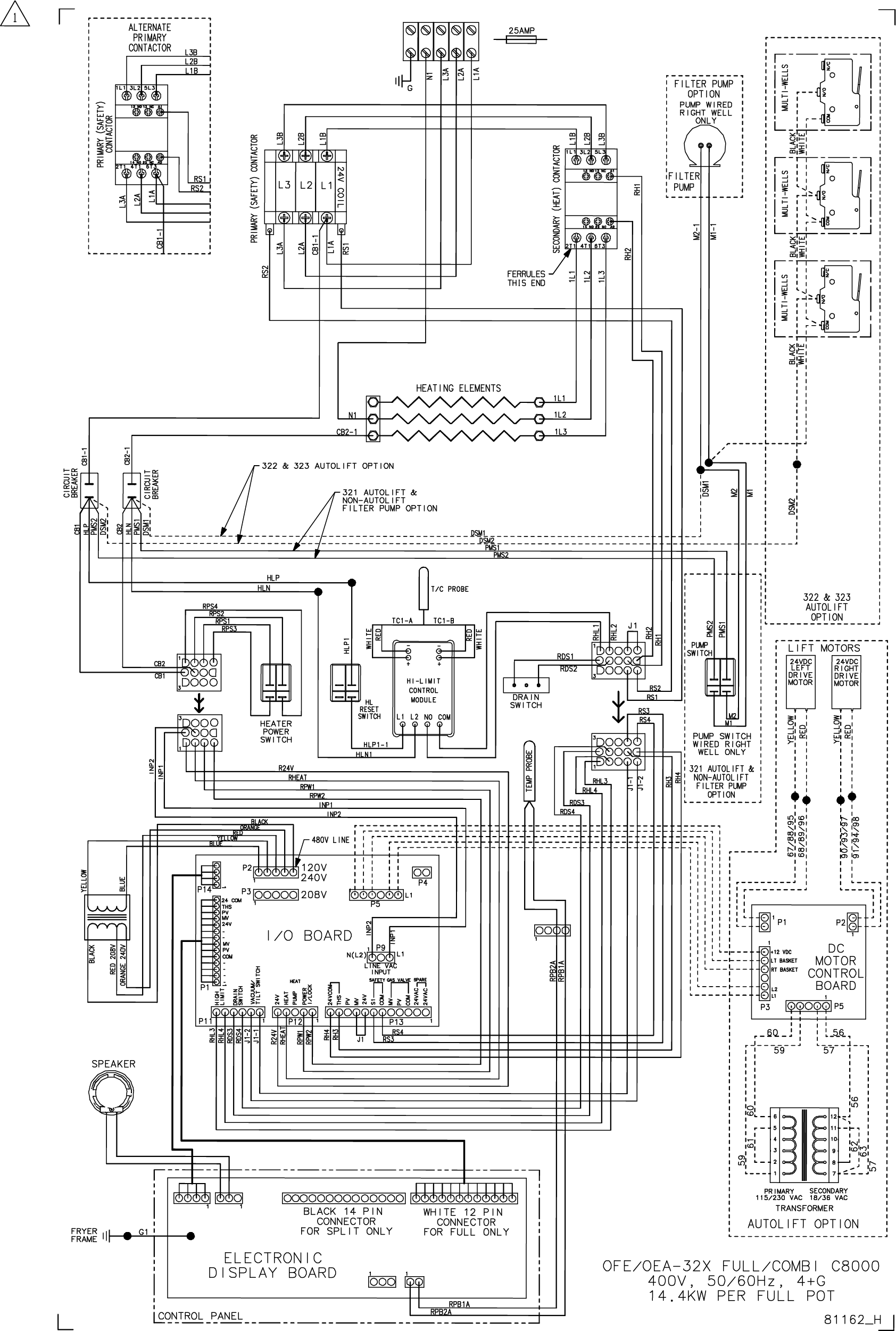

81162 H OFE-OEA-32, C8000, 400 Volts, 50-60 Hz, 4+G (After 7/2009)

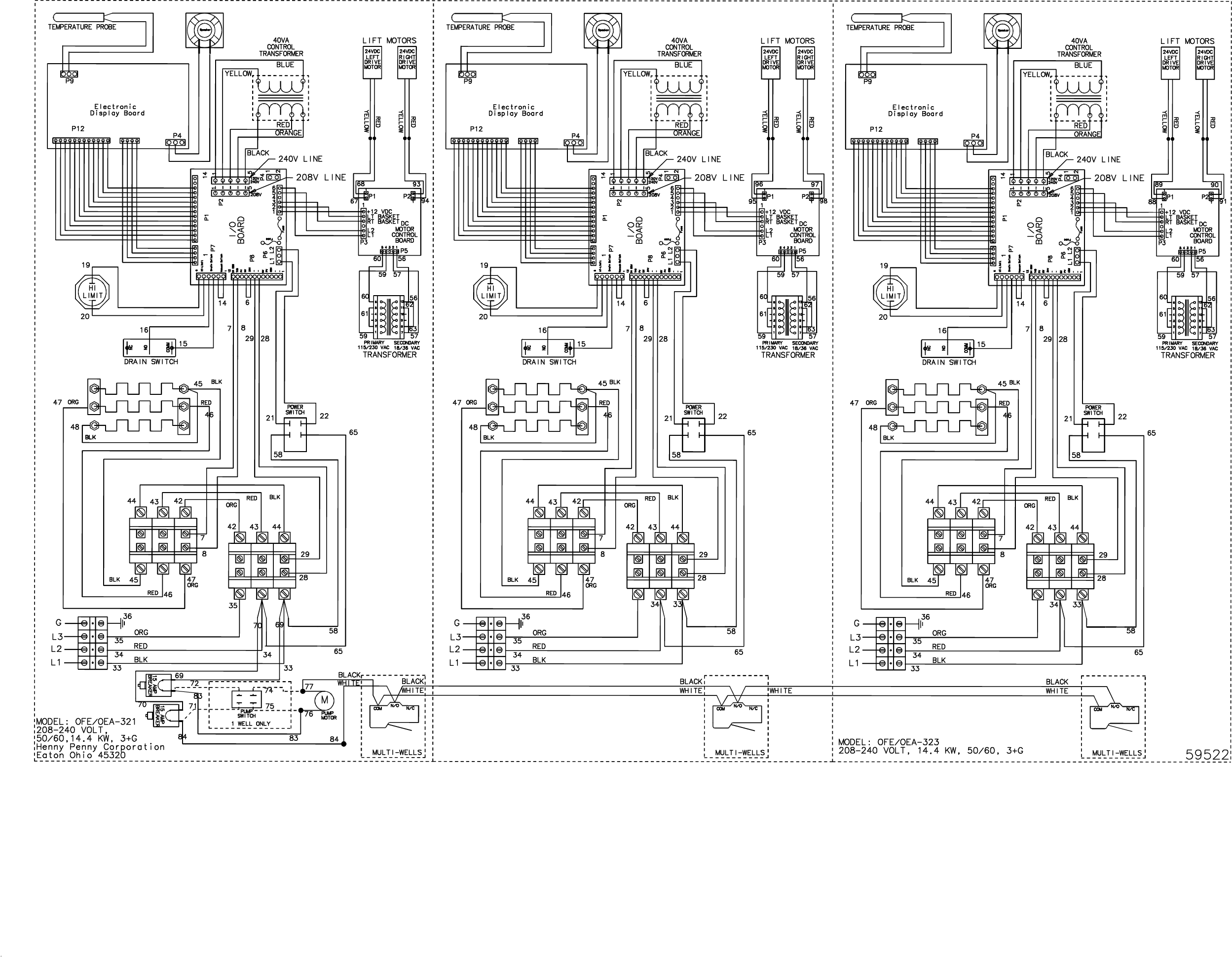

59522 P OFE-OEA-32X, C8000, 208-240 Volts, 50-60 Hz, 3+G (Before 7/2009)

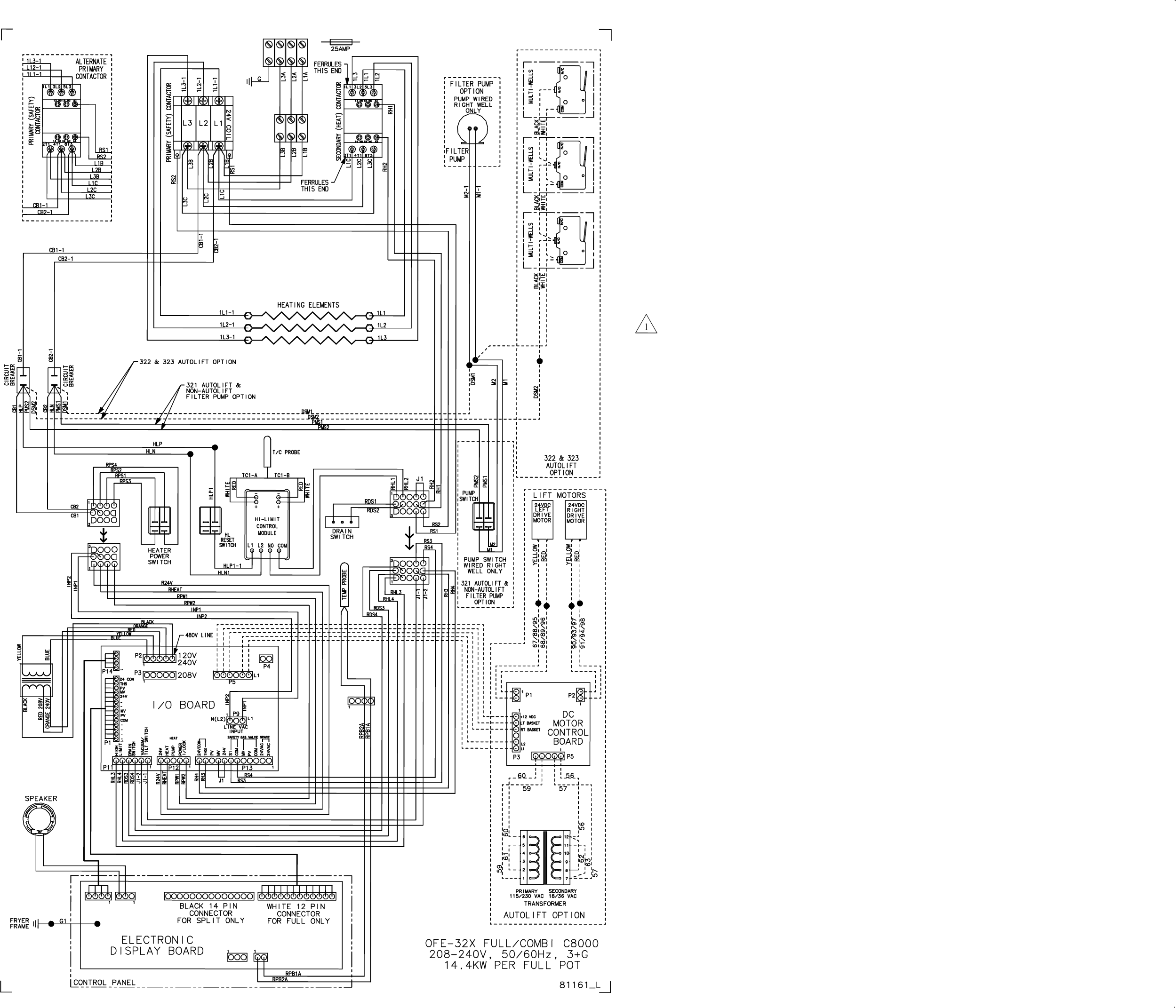

81161 L OFE-32X, C8000, 208-240 Volts, 50-60 Hz, 3+G (After 7/2009)

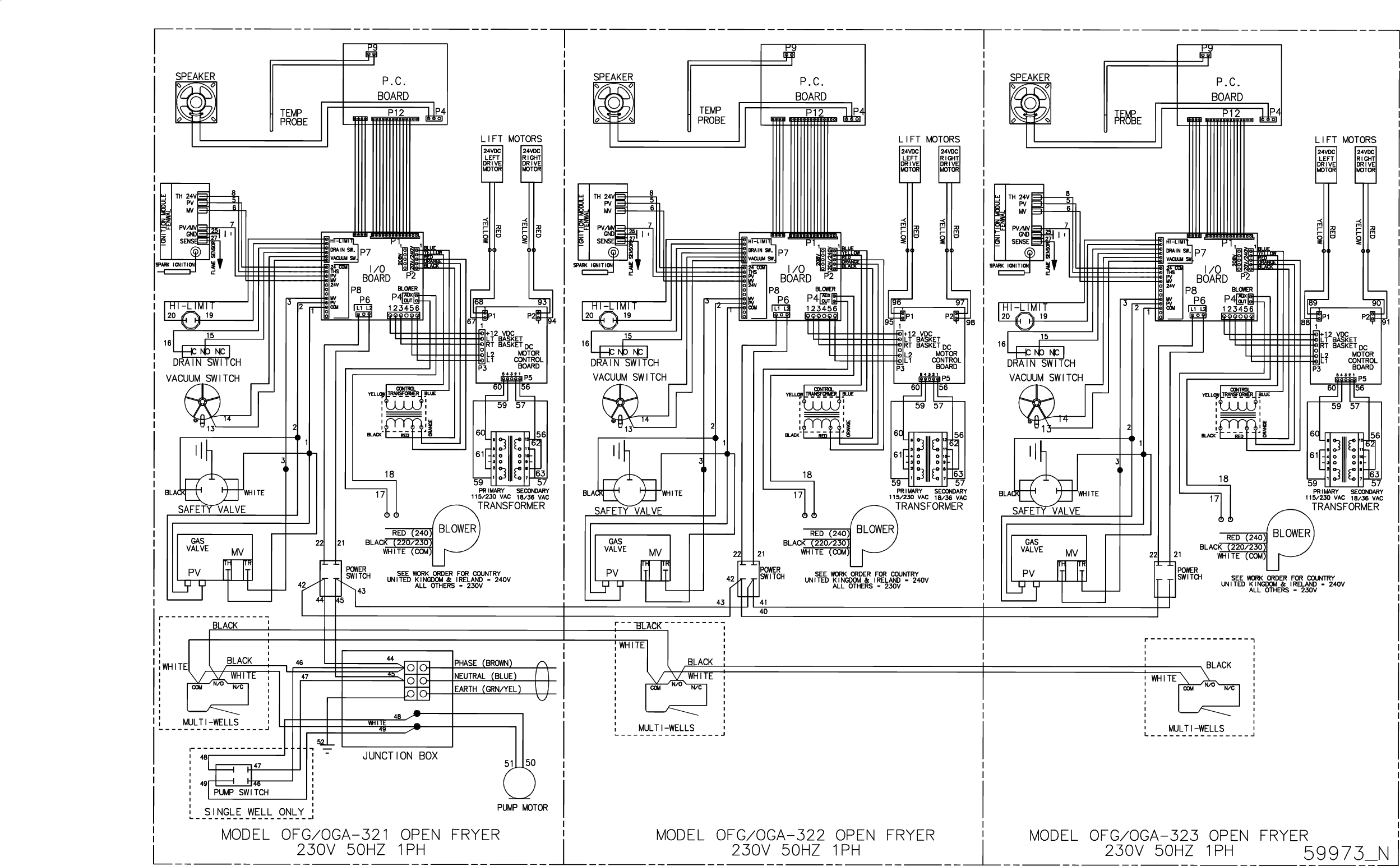

59973 N OFG-OGA-32X, C8000, 230 Volts, 50 Hz, 1 Phase (Before 7/2009)

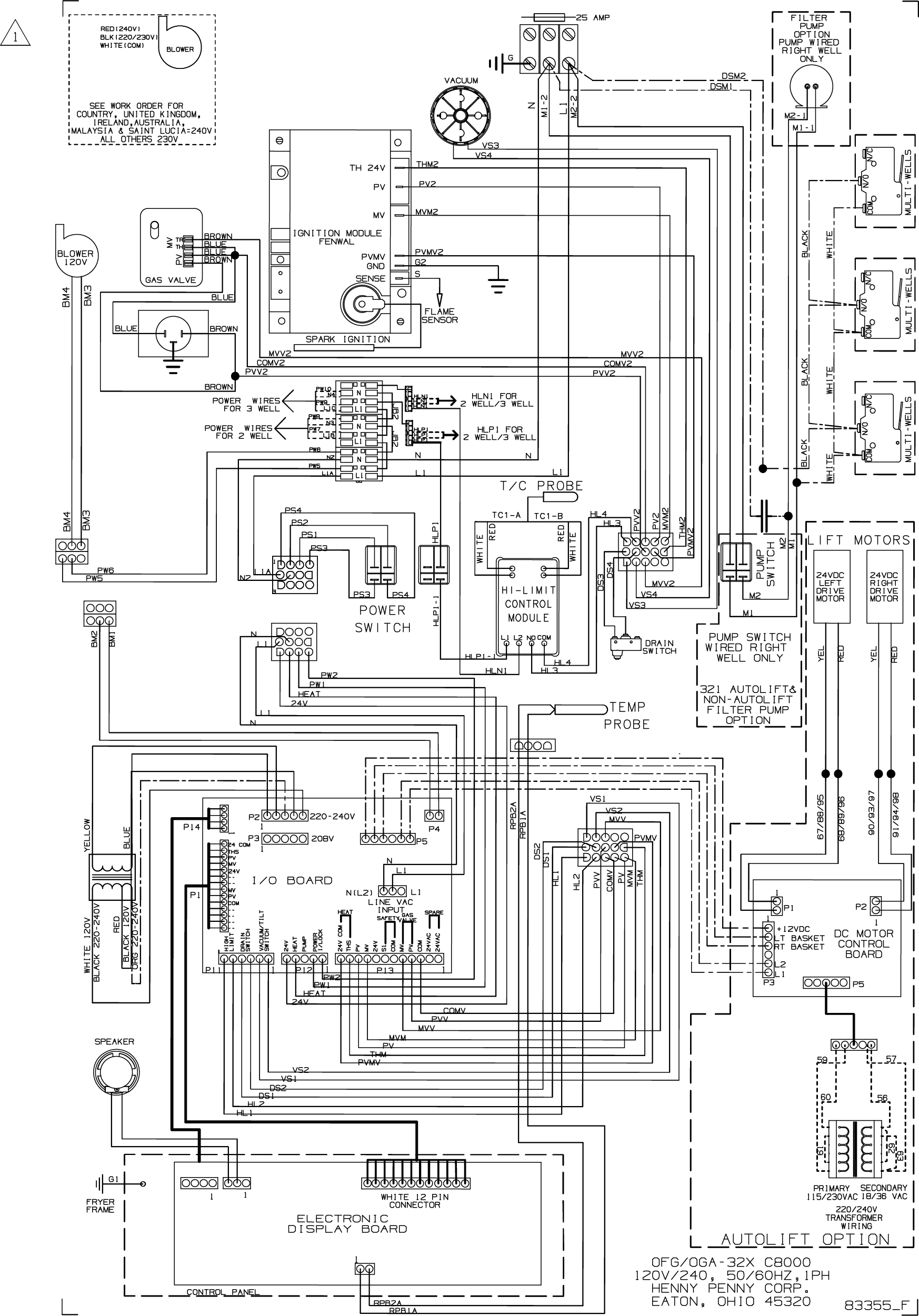

83355 F OFG-OGA-32X, C8000, 120-240 Volts, 50-60 Hz, 1 Phase (After 7/2009)

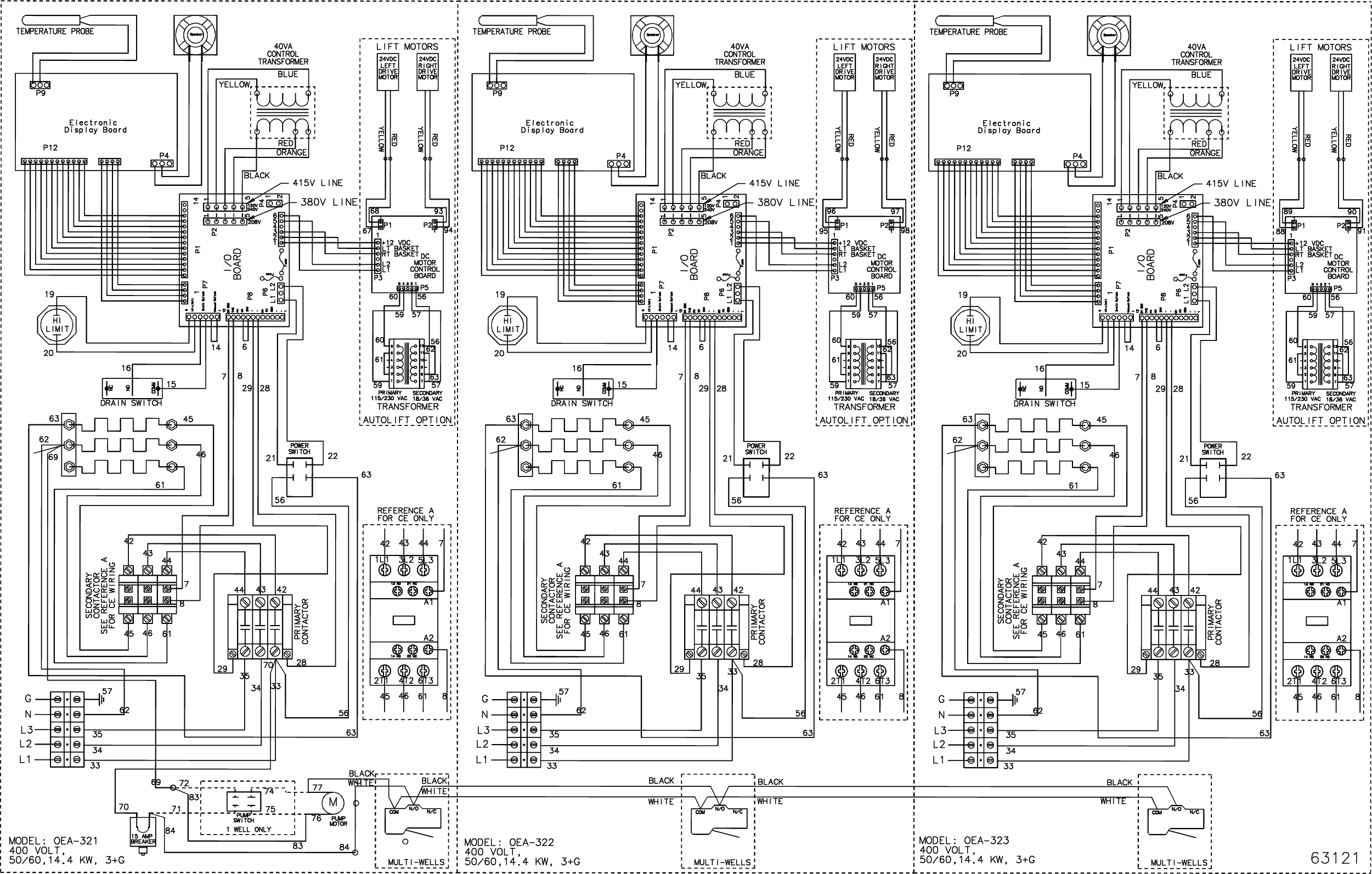

63121 N OEA-32X, C8000, 400 Volts, 50-60 Hz, 3+G (Before 7/2009)

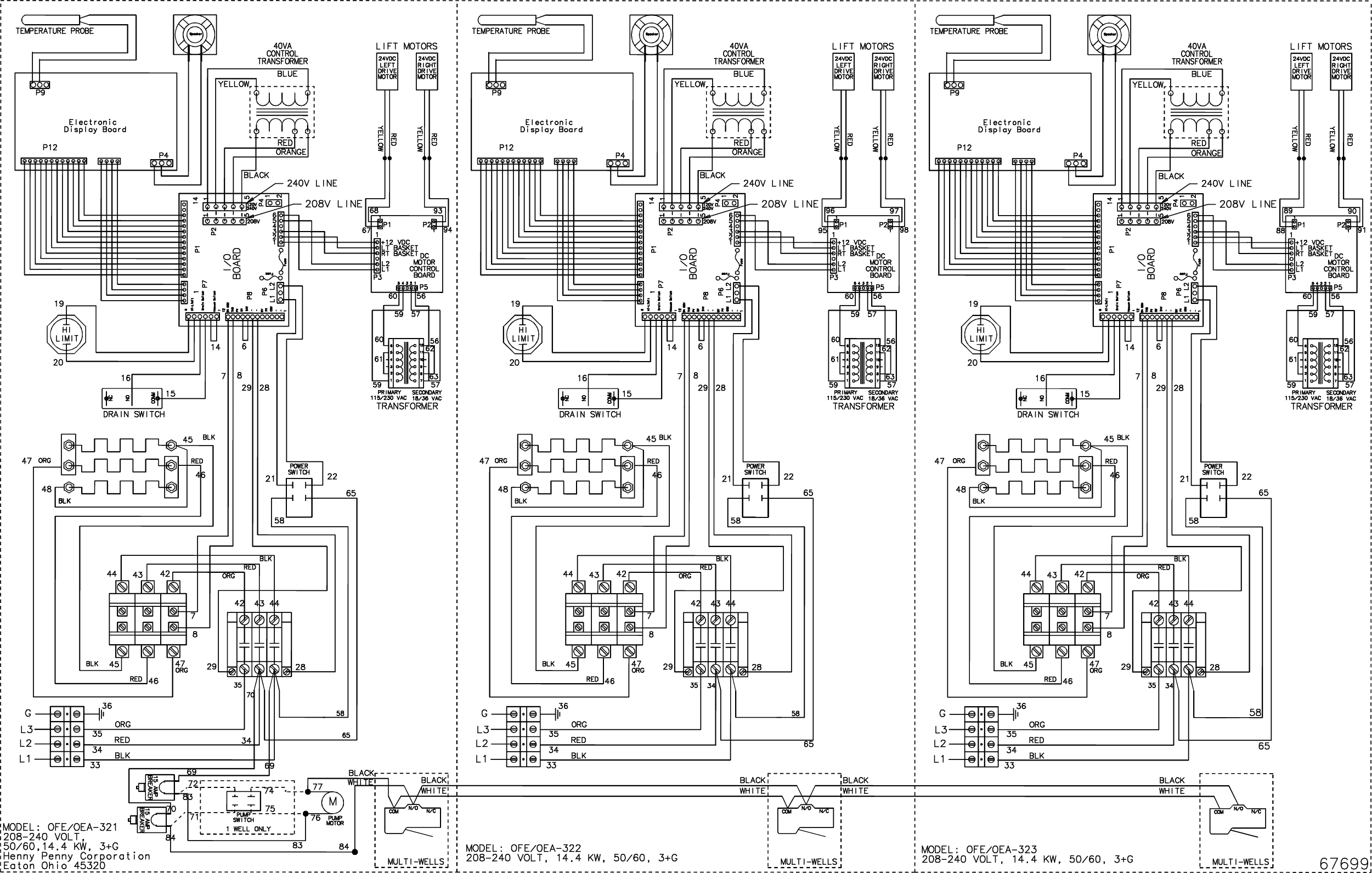

67699 F OFE-OEA-32X, C8000, 208-240 Volts, 50-60 Hz, 3+G (Before 7/2009)

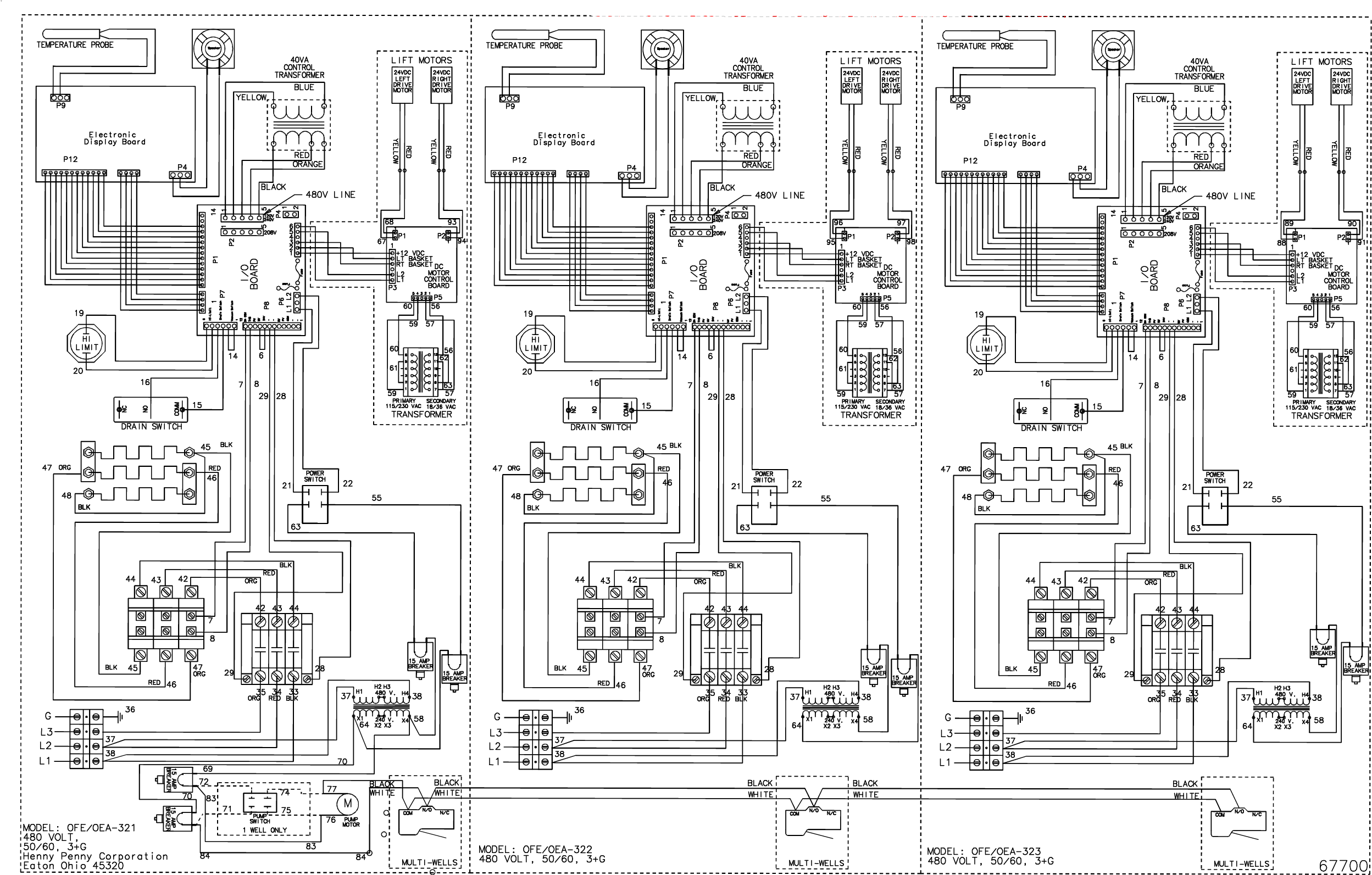

67700 E OFE-OEA-32X, C8000, 480 Volts, 50-60 Hz, 3+G (Before 7/2009)

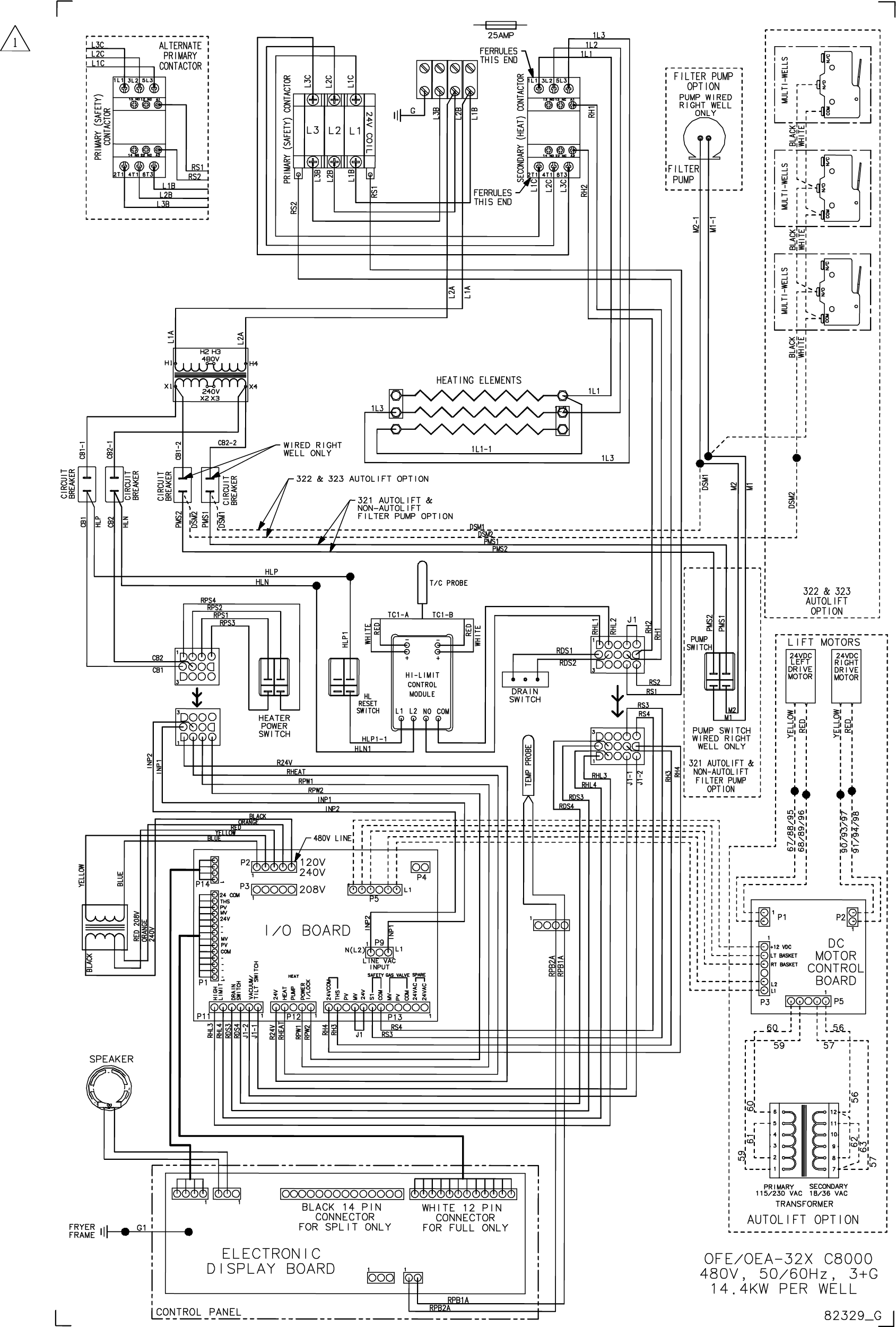

82329 G OFE-OEA-32X, C8000, 480 Volts, 50-60 Hz, 3+G (After 7/2009)

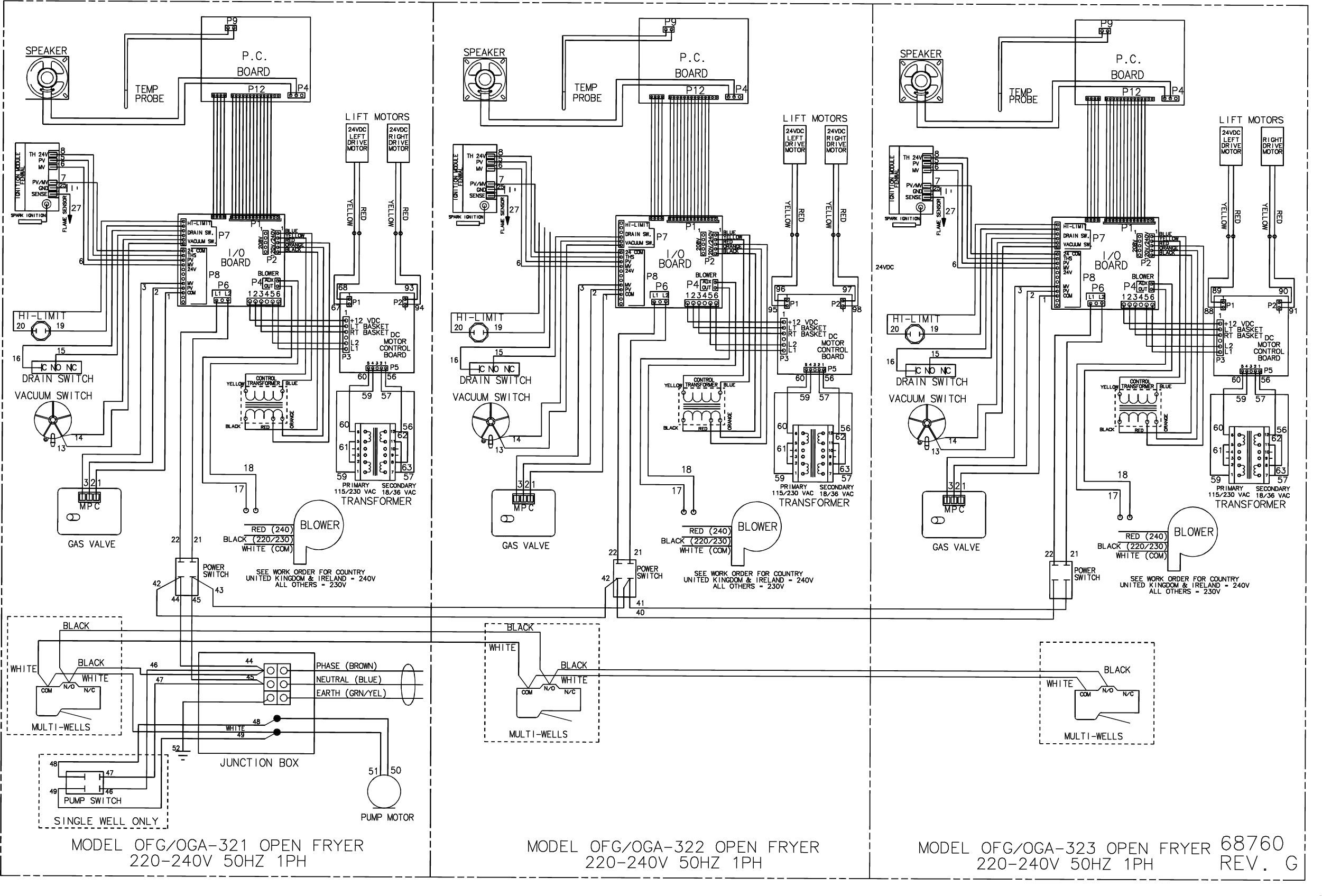

68760 G OFG-OGA-32X, C8000, 220-240 Volts, 50 Hz, 1 Phase (Before 7/2009)

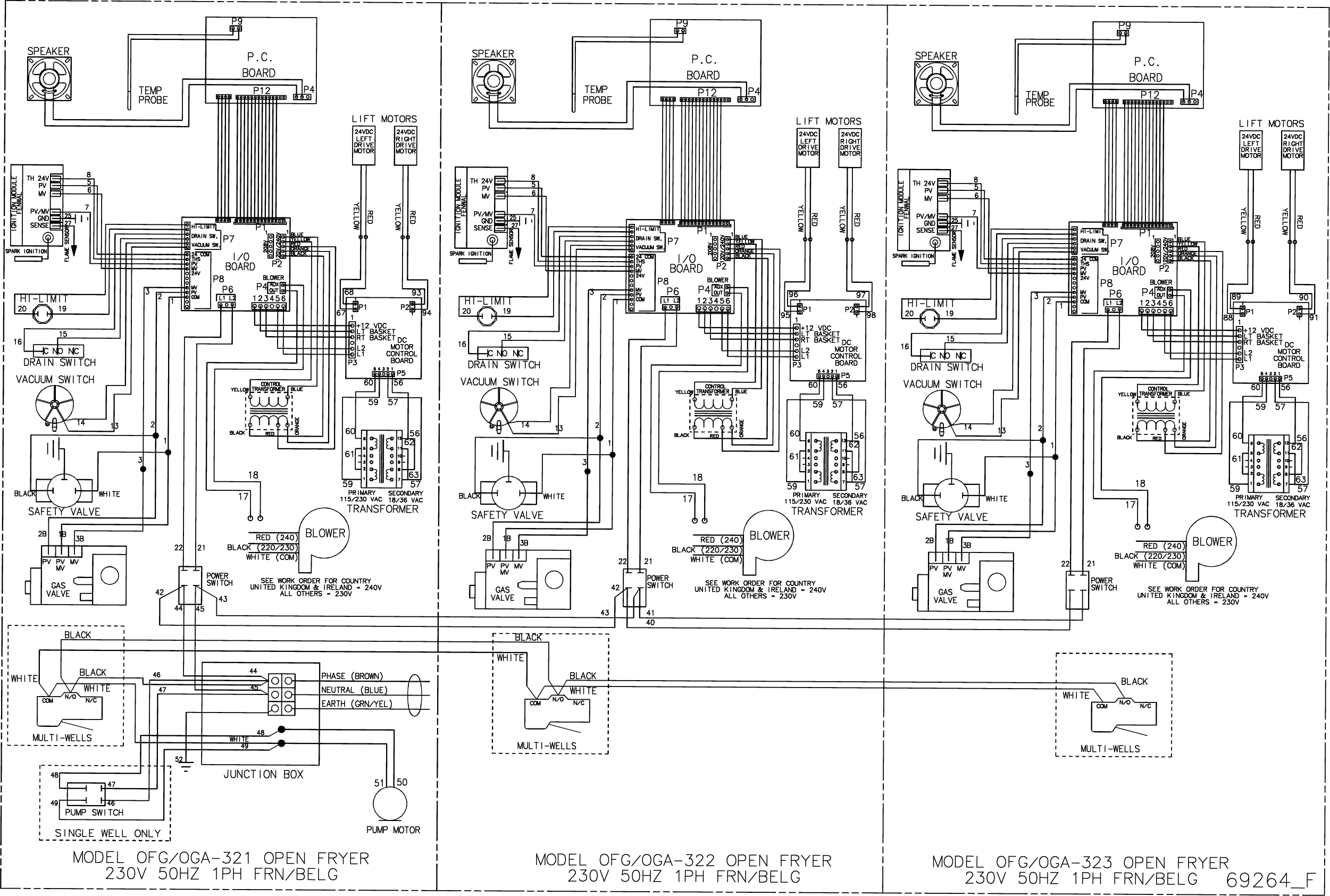

69264 F OFG-OGA-32X, C8000, 230 Volts, 50 Hz, 1 Phase (Before 7/2009)

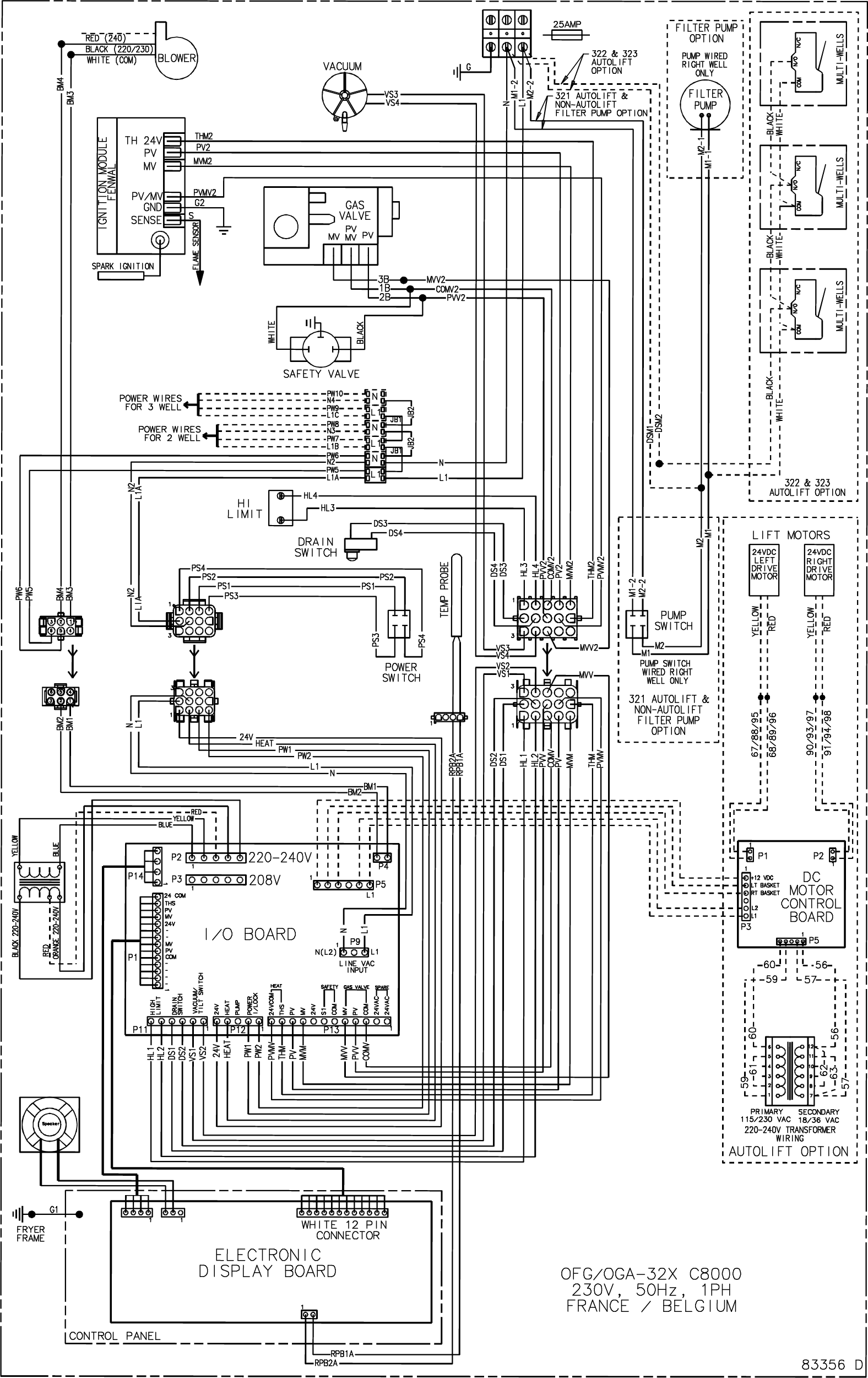

83356 D OFG-OGA-32X, C8000, 230 Volt, 50 Hz, 1 Phase (After 7/2009)

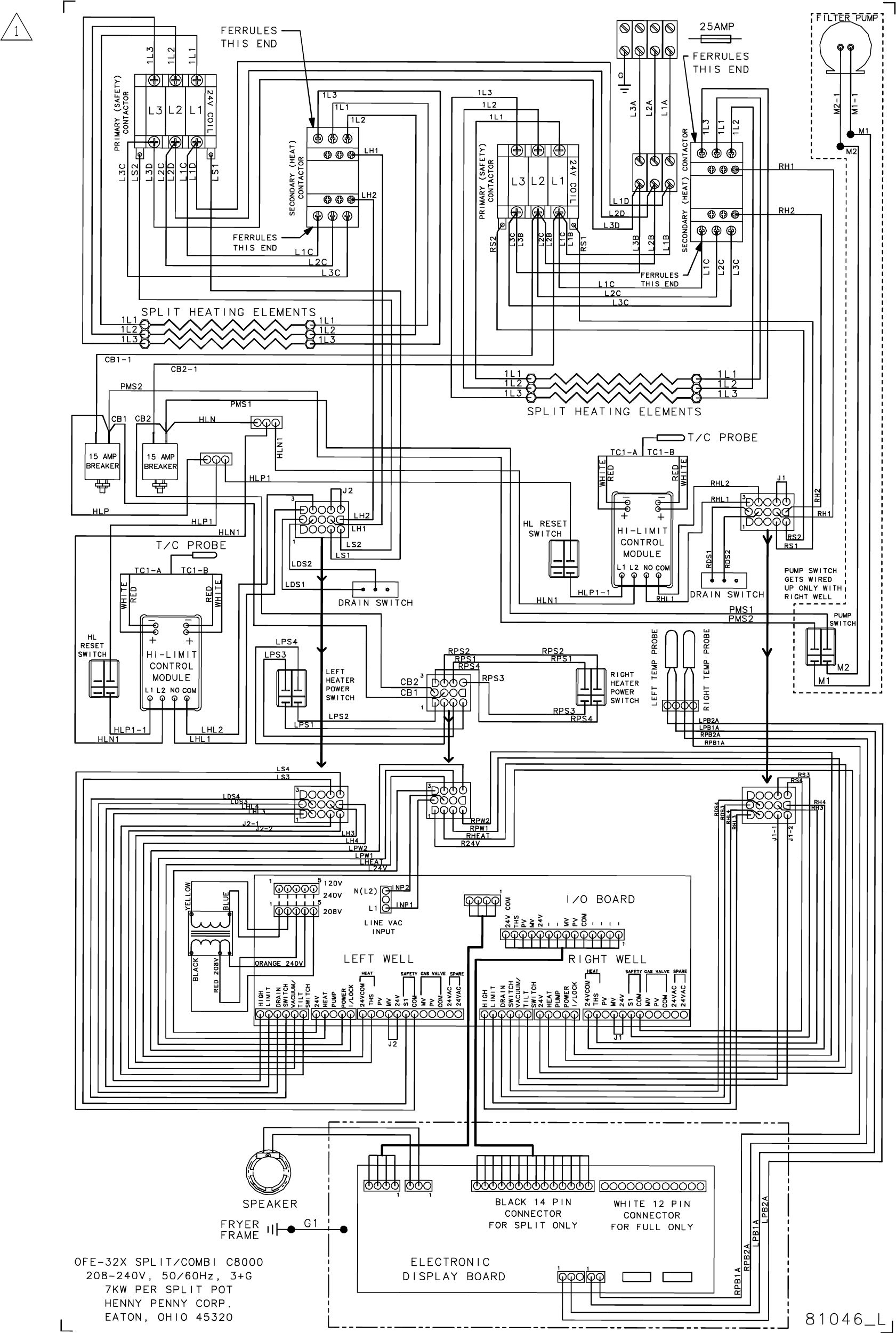

81046 L OFE-32X, C8000, 208-240 Volts, 50-60 Hz, 3+G
