Replacing the Filter Pump and Motor

To avoid electrical shock or property damage, move the power switch to OFF and disconnect power.

Remove electrical power supplied to the unit.

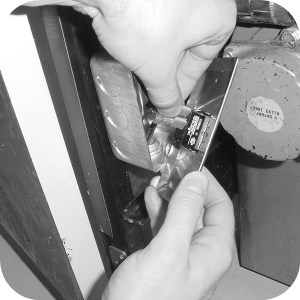

Open the door (left door on two well units) and remove the two screws securing the switch box cover and pull filter motor wires from filter switch.

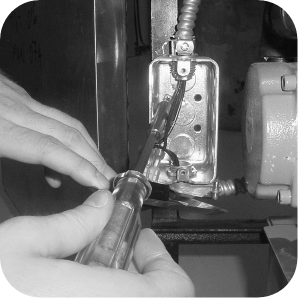

Remove the two screws securing the switch box to the frame.

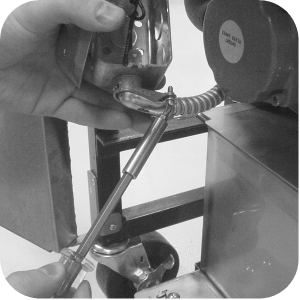

Loosen screws on conduit connector and pull conduit from the connector.
Disconnect filter union to the filter in drain pan

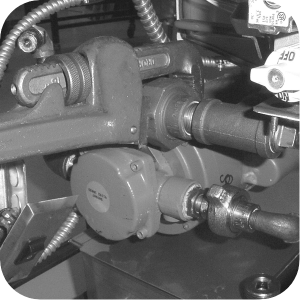

Use a pipe wrench to disconnect the outlet pipe to vat.
Remove left side panel.
Use 9/16 in. socket or wrenches to remove the bolts and nuts securing the motor to the bracket and pull pump, motor and piping from unit.
