Inspecting the Flue

Some locations may choose to do this procedure on a more frequent basis (i.e., quarterly, semi-annually, or other frequency).

Ensure the transition from the flue to the fire box is clean with no holes from corrosion.

1. Remove the left and right side panels from the fryer.

2. Remove the rear cover.

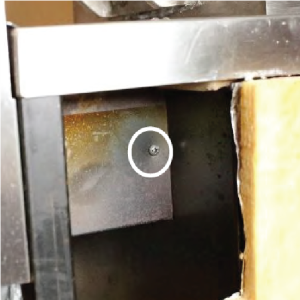

3. Remove the four screws holding the flue to the firebox. One on each side of the fryer. Two underneath the flue.

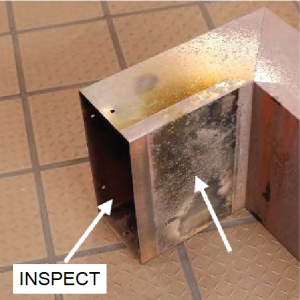

4. Inspect the flue and transition assembly. Clean out any debris or obstruction found in the flue assembly and inspect the integrity of the transition. If excessive corrosion causing holes to form in the transition are found, replace the flue.
