Specifications
Clearances
Back 4 in (102 mm) for power cord
Electrical Specifications
| Models | Volts | Phase | Hertz | kW | Amps | Wire | |
|---|---|---|---|---|---|---|---|
| 200 | 120 | 1 | 60 | 2.27
| 18.9 | 2+G | |
| 200 | 208 | 1 | 60 | 2.15 | 10.3 | 2+G | |
| 200 | 230 | 1 | 50 | 2.03 | 9.1 | 1NG | |
| 300 | 208 | 1 | 60 | 3.57 | 17.2 | 2+G | |
| 300 | 240 | 1 | 60 | 3.58 | 15.7 | 2+G | |
| 300 | 208 | 3 | 60 | 3.57 | 14.8 | 3+G | |
| 300 | 240 | 3 | 60 | 5.58 | 12.8 | 3+G | |
| 300 | 400 | 3 | 50-60 | 3.58 | 8.5 | 1NG | |
| 301 | 208 | 1 | 60 | 3 + deck | 4.01 | 19.3 | 2+G |
| 4 + deck | 4.45 | 21.4 | |||||
| 301 | 240 | 1 | 60 | 3 + deck | 4.02 | 17.5 | 2+G |
| 4 + deck | 4.46 | 19.4 | |||||
| 301 | 208 | 3 | 60 | 3 + deck | 3.57 | 14.8 | 3+G |
| 4 + deck | 4.58 | 19.0 | |||||
| 301
| 240
| 3
| 60
| 3 + deck | 3.58 | 12.8 | 3+G
|
4 + deck | 4.60 | 16.5 | |||||
| 301 | 400 | 3 | 50-60 | 3 + deck | 3.58 | 7.4 | 3NG |
| 4 + deck | 4.60 | 7.5 | |||||
| 400 | 208 | 1 | 60 | 4.58 | 22.0 | 2+G | |
| 400 | 240 | 1 | 60 | 4.60 | 20.0 | 2+G | |
| 400 | 208 | 3 | 60 | 4.58 | 19.0 | 3+G | |
| 400 | 240 | 3 | 60 | 4.60 | 16.5 | 3+G | |
| 400 | 400 | 3 | 50-60 | 4.60 | 7.5 | 1NG | |
| 401 | 208 | 1 | 60 | 3 + deck | 5.13 | 24.7 | 2+G |
| 4 + deck | 5.68 | 27.3 | |||||
| 401 | 240 | 1 | 60 | 3 + deck | 5.15 | 22.3 | 2+G |
| 4 + deck | 5.70 | 24.5 | |||||
401 | 208 | 3 | 60 | 3 + deck | 5.13 | 21.1 | 3+G |
| 4 + deck | 5.68 | 23.4 | |||||
| 401
| 240
| 3
| 60
| 3 + deck | 5.15 | 18.3 | 3+G
|
4 + deck | 5.70 | 20.2 | |||||
| 401 | 400 | 3 | 50-60 | 3 + deck | 5.15 | 8.8 | 3NG |
| 4 + deck | 5.70 | 8.8 | |||||
Electrical Plug
Power cord and plug included with 120 V units only
| Model | Volts | Plug Type | Plug Appearance |
|---|---|---|---|
200 | 120 VAC | NEMA 5-30P |  |
200 | 208 VAC | NEMA 6-15P |  |
300 and 400 1 Phase | 208 VAC and 240 VAC | NEMA 6-20P |  |
| NEMA 6-30P |  | ||
300 and 400 3 Phase
| 208 VAC, 240 VAC, 400 VAC
| NEMA 15-20P |  |
NEMA 15-30P |
| ||
301 and 401 1 Phase | 208 VAC and 240 VAC | NEMA 6-30P | See 300 and 400 1 Phase |
| NEMA 6-50P |  | ||
301 and 401 3 Phase | 208 VAC, 240 VAC, 400 VAC | NEMA 15-30P | 300 and 400 3 Phase |

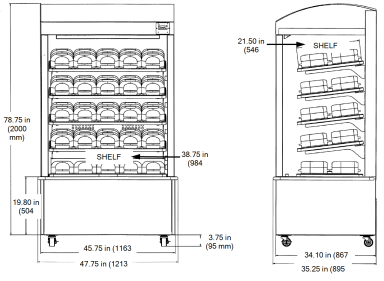

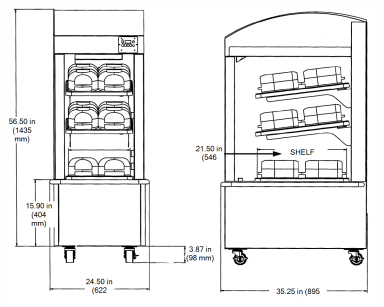

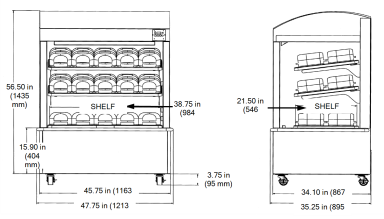

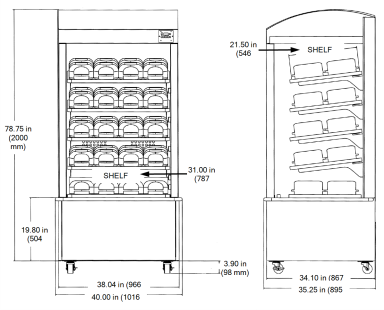

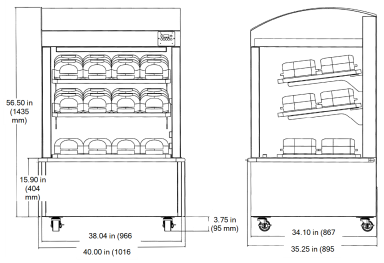

Uncrated Dimensions
200
300
301
400
401
| Model | Height | Width | Depth |
|---|---|---|---|
200 | 60.50 in (1537 mm) | 24.50 in (622 mm) | 35.25 in (895 mm) |
| 300 | 56.50 in (1435 mm) | 40.00 in (1016 mm) | 35.25 in (895 mm) |
| 301 | 78.75 in (2000 mm) | 40.00 in (1016 mm) | 35.25 in (895 mm) |
| 400 | 56.50 in (1435 mm) | 47.75 in (1213 mm) | 35.25 in (895 mm) |
| 401 | 78.75 in (2000 mm) | 47.75 in (1213 mm) | 35.25 in (895 mm) |
Crated Dimensions
| Model | Height | Width | Depth | Volume | Shipping Weight |
|---|---|---|---|---|---|
200 | 69.00 in (1750 mm) | 41.00 in (1040 mm) | 28.00 in (710 mm) | 46 ft3 (1.3 m3) | 352 lb (160 kg) |
| 300 | 69.00 in (1750 mm) | 43.00 in (1090 mm) | 41.00 in (1040 mm) | 71 ft3 (2.0 m3) | 483 lb (219 kg) |
| 301 | 90 in (2285 mm) | 43.00 in (1090 mm) | 41.00 in (1040 mm) | 93 ft3 (2.7 m3) | 598 lb (271 kg) |
| 400 | 69.00 in (1750 mm) | 51.00 in (1295 mm) | 41.00 in (1040 mm) | 84 ft3 (2.4 m3) | 531 lb (241 kg) |
| 401 | 90 in (2285 mm) | 51.00 in (1295 mm) | 41.00 in (1040 mm) | 109 ft3 (3.1 m3) | 669 lb (304 kg) |
Capacity
| Model | Per Shelf | Total | |
|---|---|---|---|
200 | 22.50 x 16.50 in (572 x 419 mm) | 7.75 ft2 (0.72 m2)
| |
| 300 | 31.00 x 21.50 in (787 x 546 mm) | 13.9 ft2 (1.29 m2) | |
| 301 | 31.00 x 21.50 in (787 x 546 mm | 3 shelf + deck | 18.5 ft2 (1.72 m2) |
| 4 shelf + deck | 23.1 ft2 (2.15 m2) | ||
| 400 | 38.75 x 21.50 in (984 x 546 mm) | 17.4 ft2 (1.61 m2) | |
| 401 | 38.75 x 21.50 in (984 x 546 mm) | 3 shelf + deck | 23.1 ft2 (2.15 m2) |
| 4 shelf + deck | 28.9 ft2 (2.69 m2) | ||
