Applies to:
Specifications
Electrical Specifications
| Model | Volts | Phase | Hertz | Amps | Wire |
|---|---|---|---|---|---|
|
554 |
120 | 1 |
50/60 |
9.40 | 2+G |
| 1L, 21L | 120 | 1 | 60 | 0.92 | 2+G |
| 1L, 21L | 230 | 1 | 50 | 0.47 | 1NG |
| 22, 222 | 120 | 1 | 60 | 3.30 | 2+G |
| 22, 222 | 230 | 1 | 50/60 | 1.74 | 1NG |
Uncrated Dimensions
|
554 |
|
|
|
|
1L |
22 |
|
|
|
21L |
222 |
|
|
| Model |
Height |
Width |
Depth |
|---|---|---|---|
|
554 |

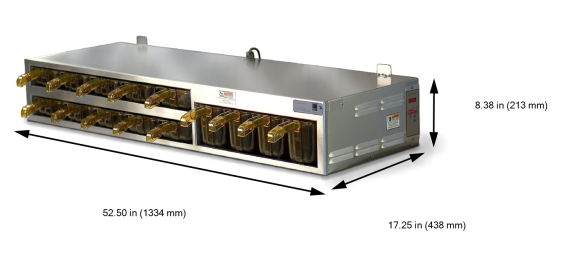

8.38 in (213 mm) | 52.50 in (1334 mm) | 17.25 in (438 mm) |

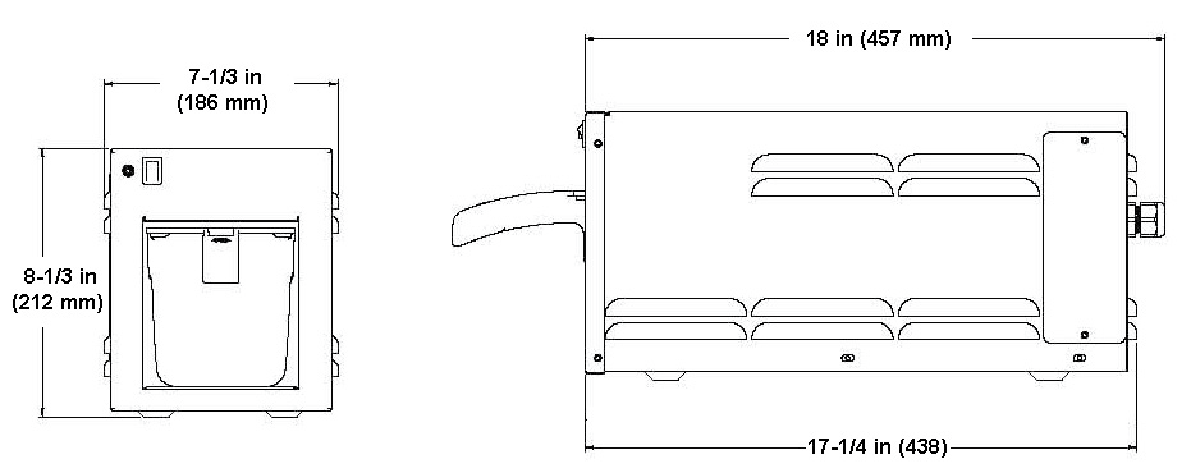

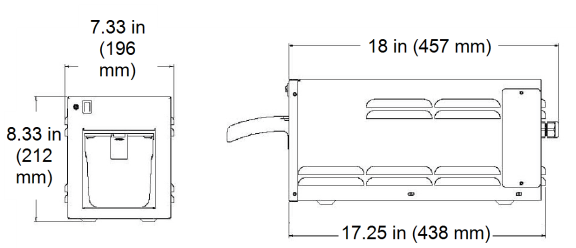

| 1L | 8.38 in (213 mm) | 7.38 in (188 mm) | 17.50 in (445 mm) |

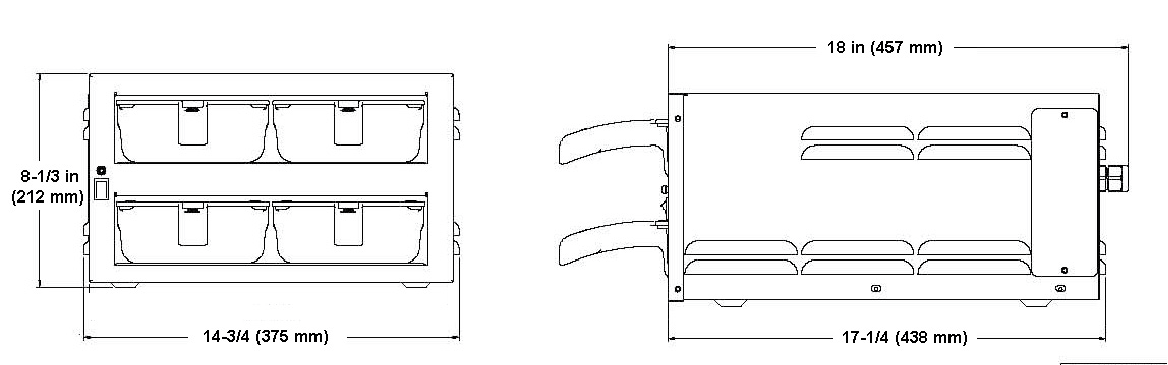

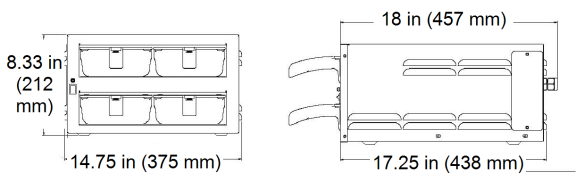

| 22 | 8.38 in (213 mm) | 14.75 in (375 mm) | 17.25 in (438 mm) |

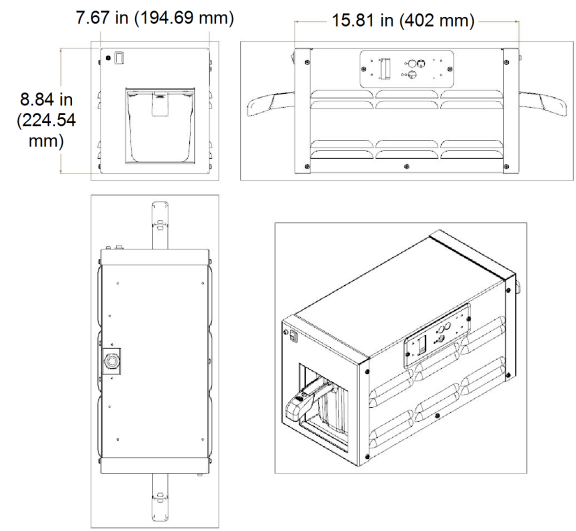

| 21L | 8.75 in (222 mm) | 7.63 in (195 mm) | 15.75 in (400 mm) |

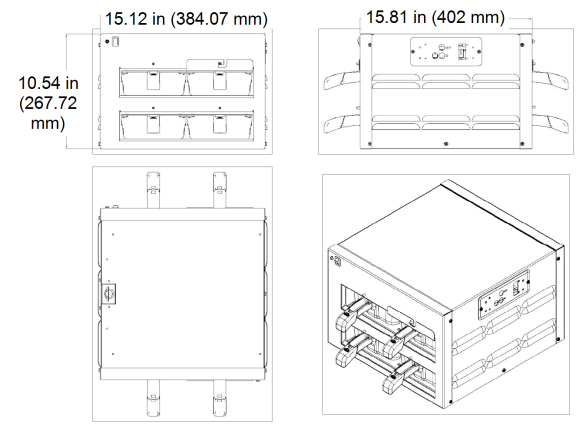

| 222 | 10.50 in (268 mm) | 15.13 in (384 mm) | 15.75 in (400 mm) |
Crated Dimensions
| Model |
Length |
Depth |
Height |
Volume |
Shipping Weight |
|---|---|---|---|---|---|
| 554 | 57.00 in (1448 mm) | 27.00 in (686 mm) | 16.00 in (407 mm) | 14 ft3 (0.40 m3 ) | 151 lbs (69 kg) |
| 1L, 21L | 24.00 in (610 mm) | 11.00 in (280 mm) | 11.00 in (280 mm) | 1.7 ft3 (0.05 m3 ) | 25 lbs (11 kg) |
| 22, 222 | 24.00 in (610 mm) | 19.00 in (483 mm) | 11.00 in (280 mm) | 2.9 ft3 (0.08 m3 ) | 45 lbs (20 kg) |
