EEG 14X Wiring Diagrams
To print a diagram from a desktop:
Select the wiring diagram link.
Right-click on the image.
On the keyboard hold the Ctrl key and tap the P key.
Ensure the print options are correct and select the Print button.
To print a diagram from a touchscreen device:
Select the wiring diagram link.
Tap and hold the image.
Tap Download image.
Open and print the image with your printer app.

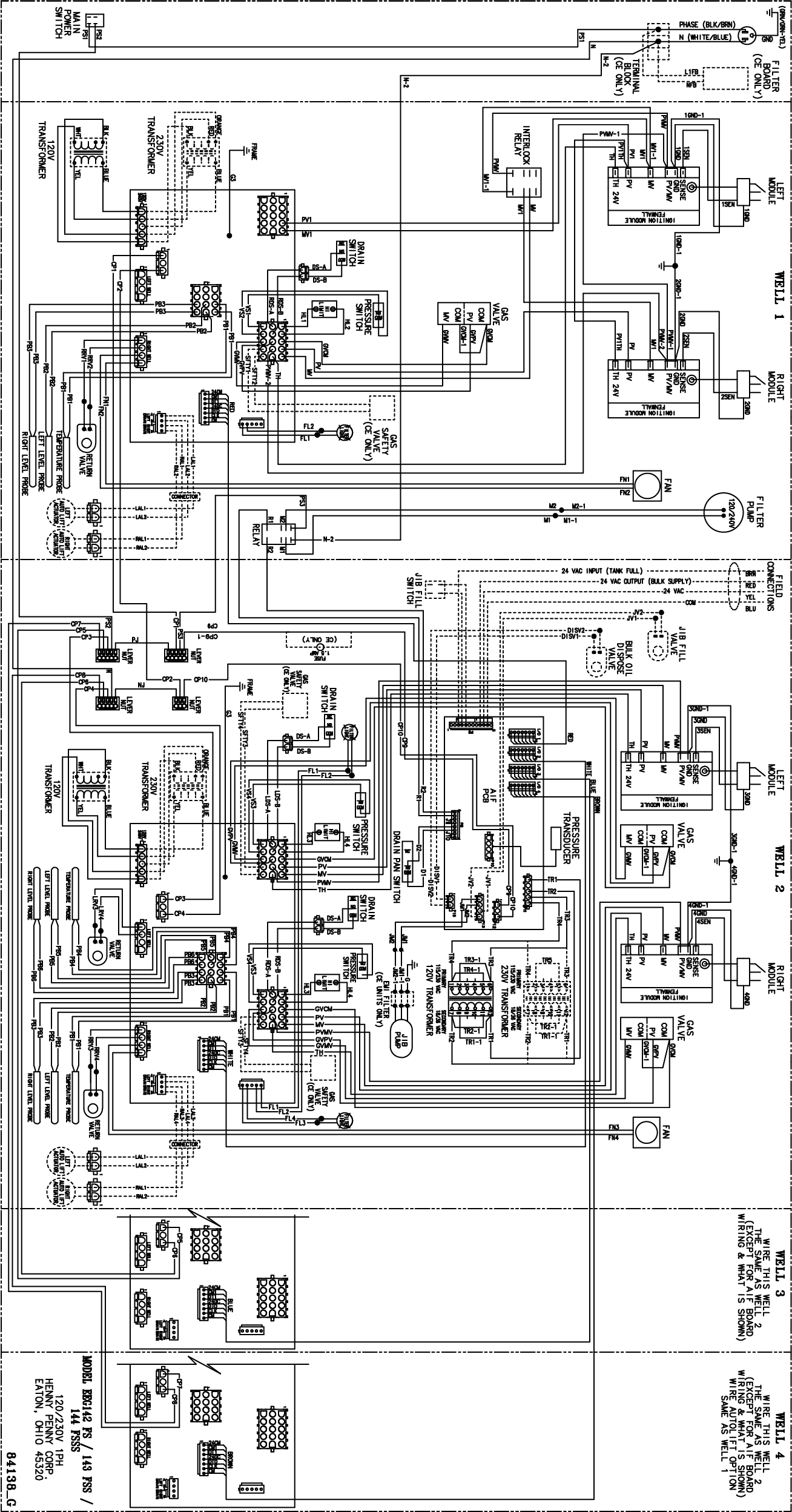

84138, 1 & 2 vat, 120-230V - FS

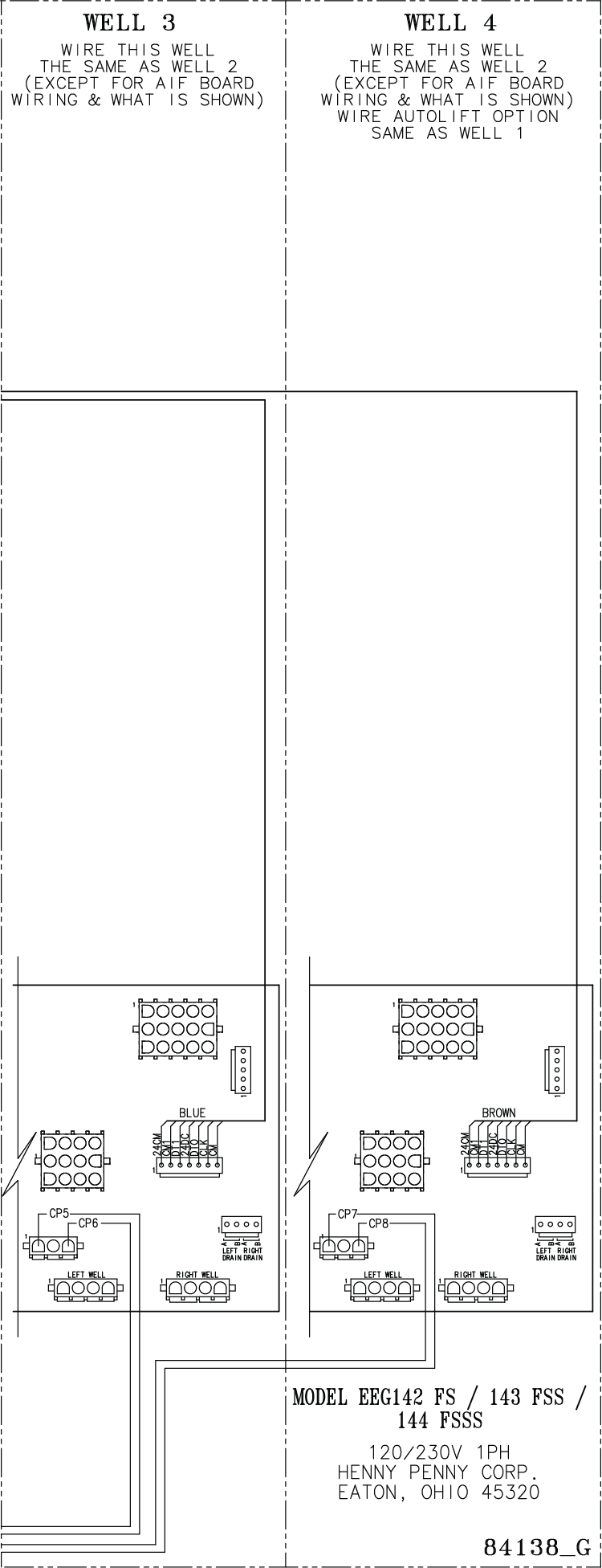

84138, 1 & 2 vat, 120-230V - FSS/FSSS

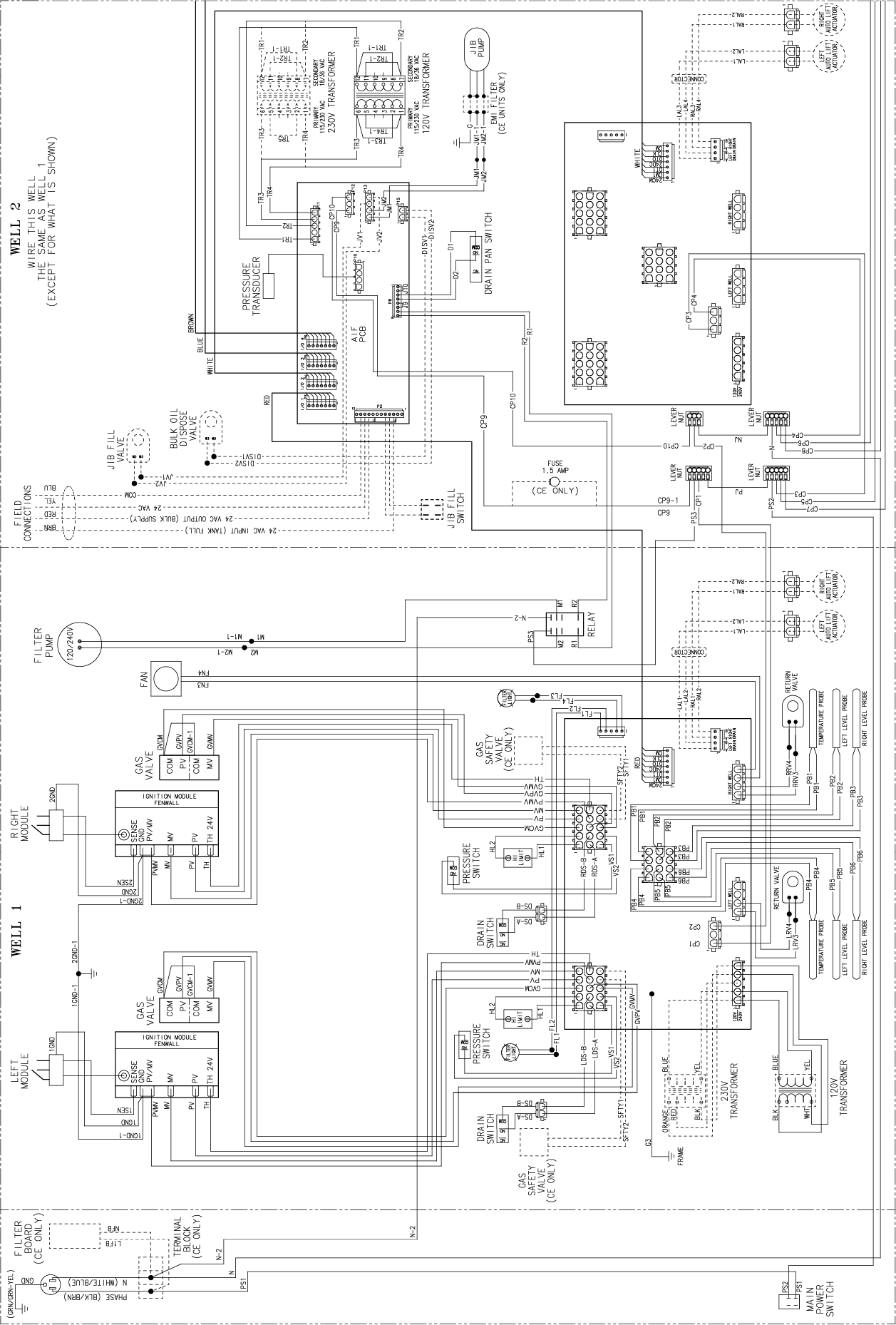

84248, 1& 2 vat, 120-230V - Split Vat

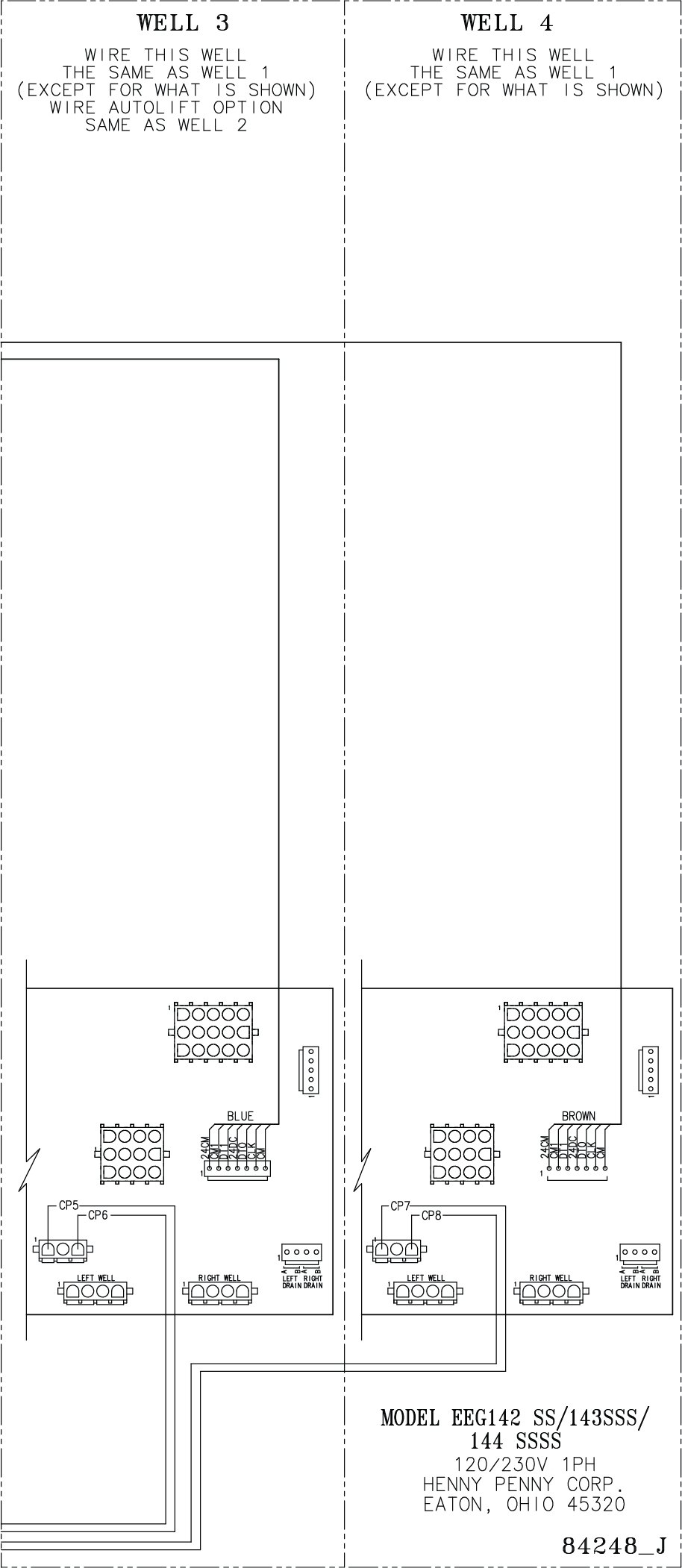

84248, 3 & 4 vat, 120-230V - Split Vat
LEGEND
| Abbreviation | Definition |
|---|---|
| C | Control |
| CM | Common |
| CP | Control power |
| D | Drain pan |
| FB | Filter board |
FL | Filter light |
| FN | Fan |
| G | Ground |
| GV | Gas Valve |
| HL | High limit |
J | Jumper |
| JL | JIB low light |
| JM | JIB motor |
| JV | JIB valve |
| L1 | Line voltage |
LDV | Left drain valve |
| LPB | Left probe |
| LRV | Left return valve |
| M | Motor |
| MV | Main valve |
N | Neutral |
| P | Pressure |
| PB | Probe |
| PJ | Power jumper |
| PRS | Pressure switch |
PS | Power switch |
| PV | Pilot valve |
| R | Relay |
| RDV | Right drain valve |
| RPB | Right probe |
RRV | Right return valve |
| RTIC | RTI Cable |
| RTIK | RTI Key |
| SEN | Flame sensor |
| SV | Safety valve |
SW | Switch |
| TR | Transformer |
| VS | Vacuum switch |
