Applies to:

Replacing the ODS 300.01 Filter Hose

Loctite or Teflon tape

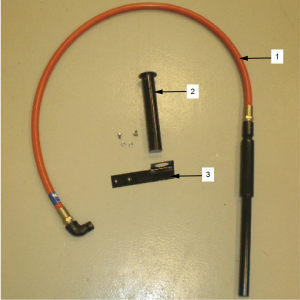

Kit number

03616

1

Filter Hose Assembly
2 Filter Hose Holder
3 Holder Bracket

  1. Remove pipe assembly if present.

  2. Loosen T-bar handle that secures the pump in place.

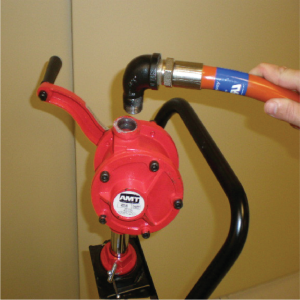

  3. Place the elbow in the top of the pump and spin the pump assembly to tighten the elbow in the top of the pump. (Be sure to use loctite or Teflon tape.)

    Spinning the pump is much easier than trying to screw the whole hose assembly into the pump.

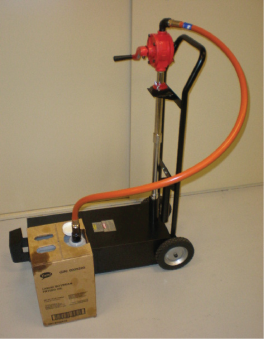

  4. Move pump assembly back into place and tighten the T-bar handle to secure pump in desired position.

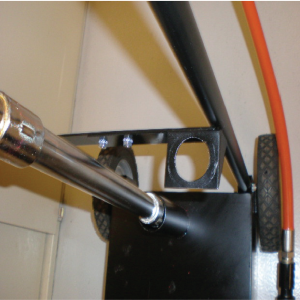

  5. Attach the filter hose bracket to the lower handle support using the bolts and nuts provided.

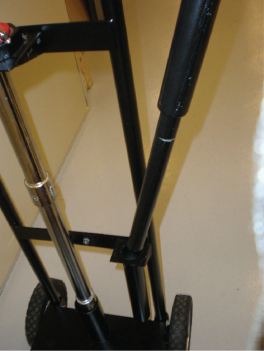

  6. Place the filter hose holder in the hole in the bracket.

  7. Slide the hose assembly into the holder when not in use.
