Applies to:
Installing the ODS 300 Check Valve
Required tools
pipe sealant
Kit number
140078
-

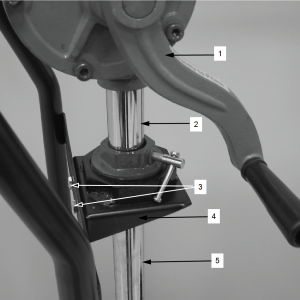

Remove pump (1) from pipe (2).
-
Remove bracket screws (3) and discard lower tube (5) and bracket (4).
-

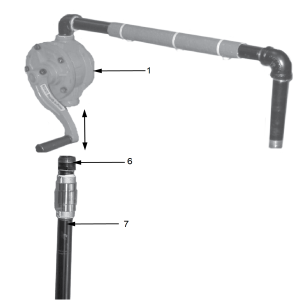

Using pipe sealant on threads (6), install new tube assembly (7) onto pump.
-

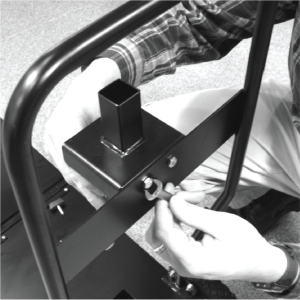

Install new bracket onto handle.
-

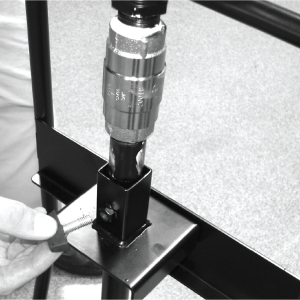

Slide tube assembly (7) into new bracket and secure with thumb screw.
