Wiring Diagrams

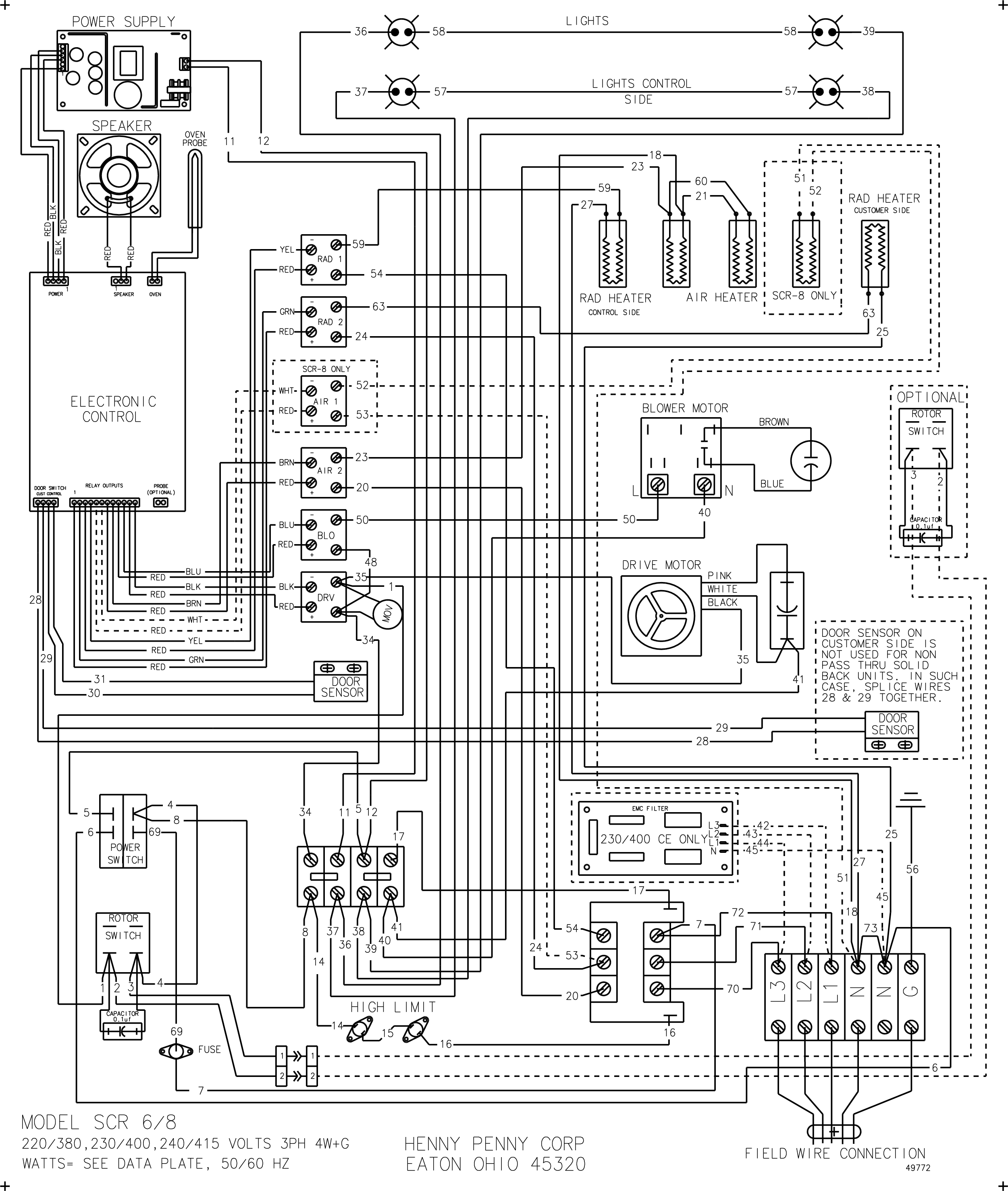

SCR 6/8, 220/380, 230/400, 240/415V, 50/60 Hz, 3 Ph, 4W+G (SN: CA0405008 & below) Wiring Diagram

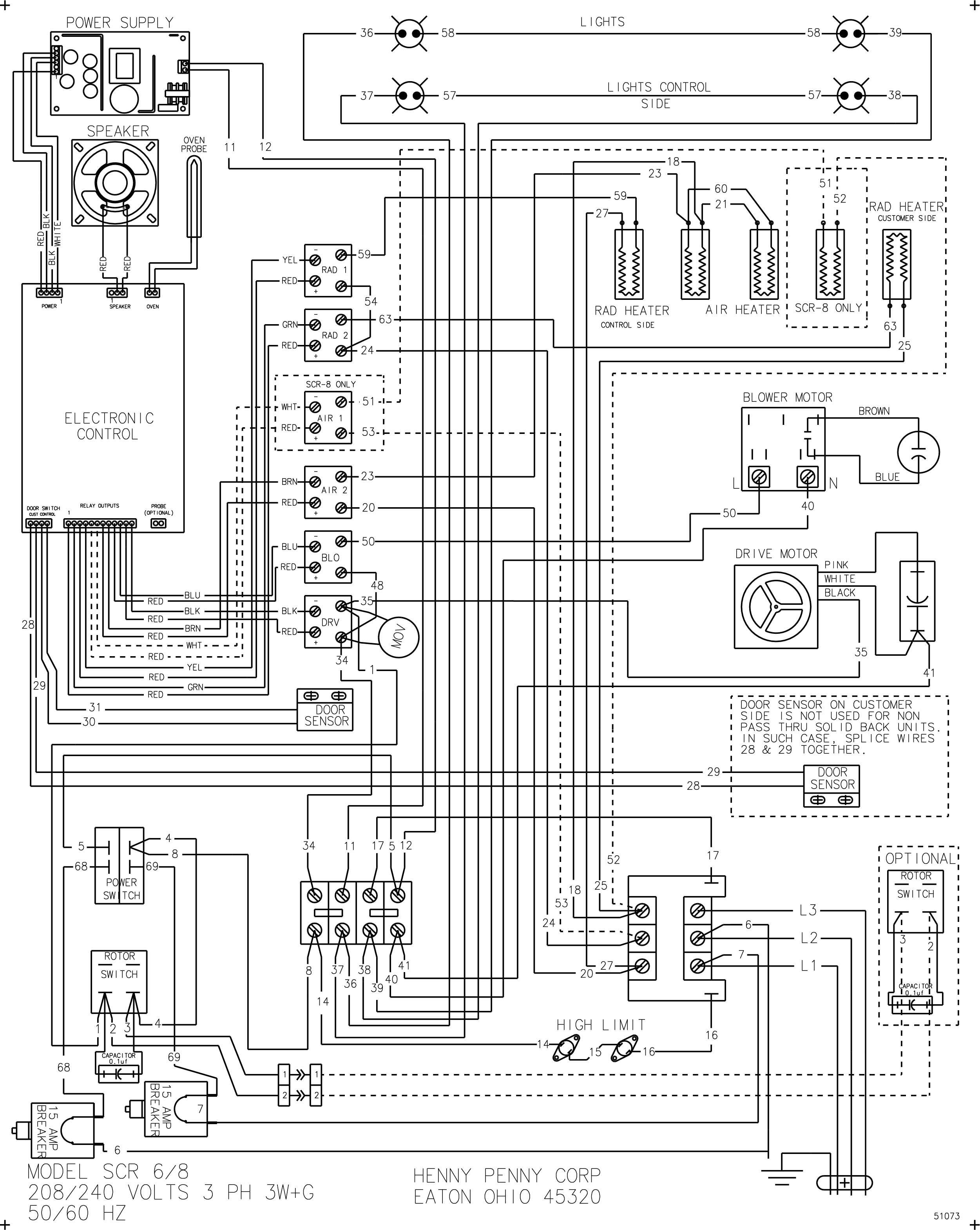

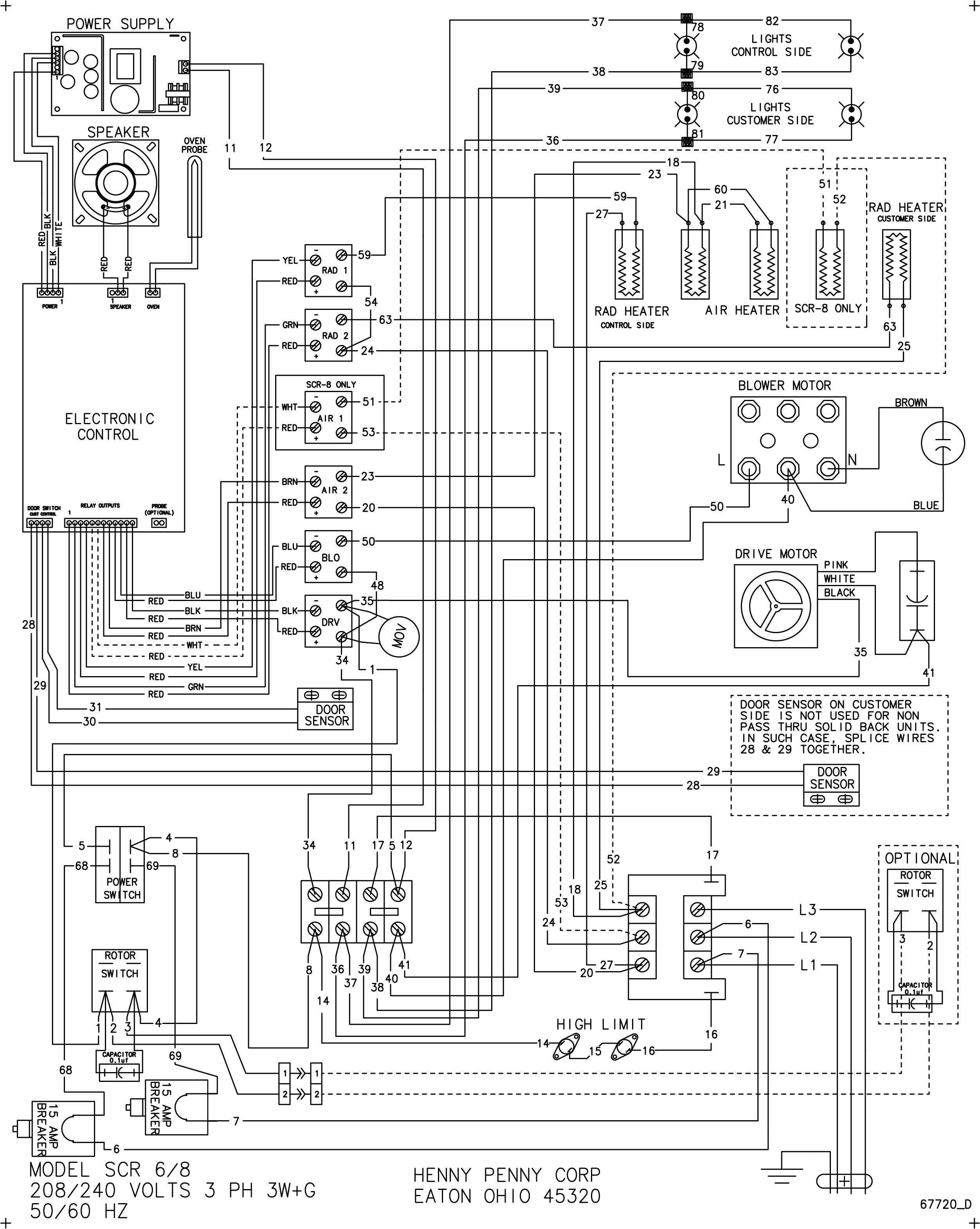

SCR 6/8 208/240V, 50/60 Hz, 3 Ph, 3W+G, SN: CA0610018 & Below - SCR 6, SN: CB0610032 & Below - SCR 8 Wiring Diagram

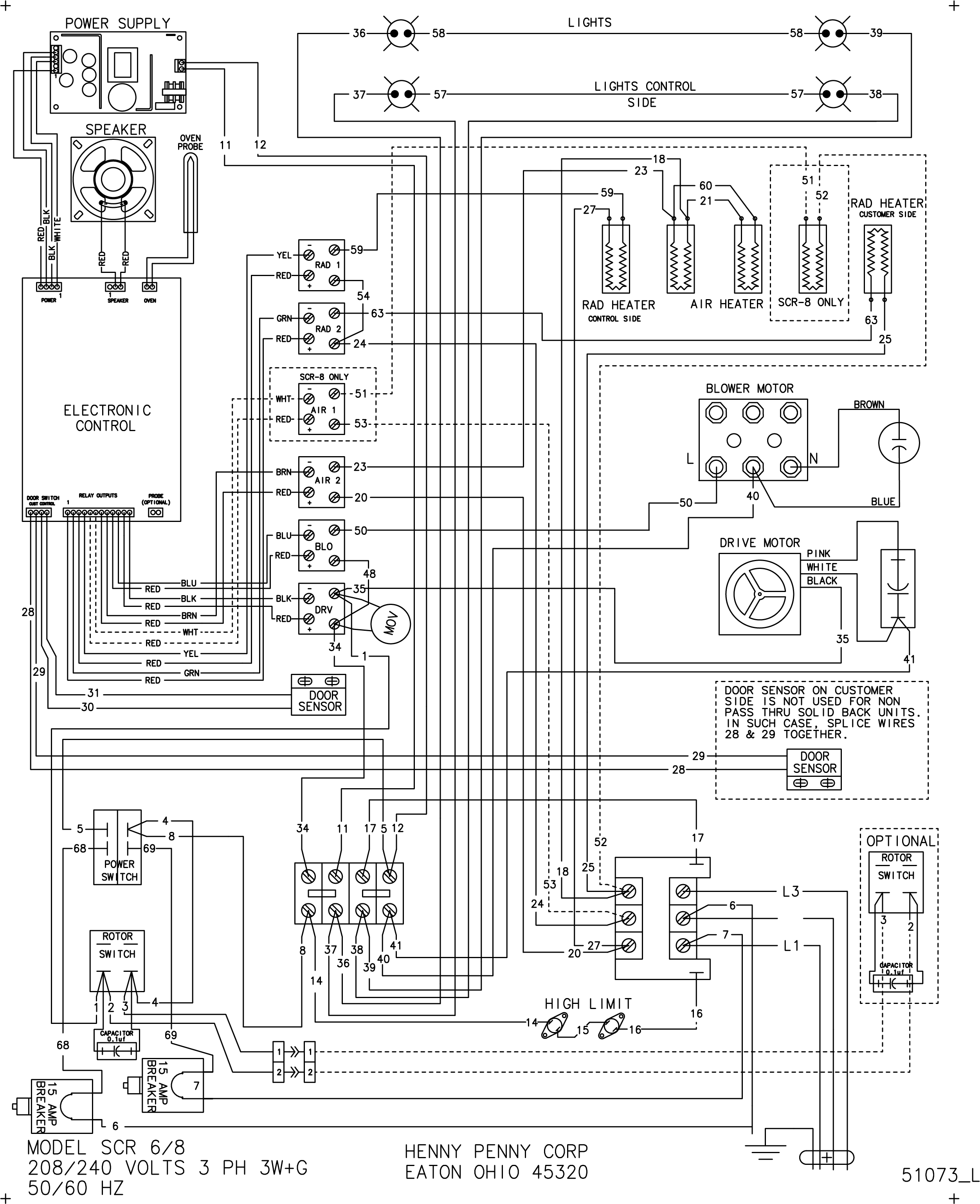

SCR 6/8 208/240V, 50/60 Hz, 3 Ph, 3W+G, SN: CA0610019 & Above - SCR 6, SN: CB0610033 & Above - SCR 8, Wiring Diagram

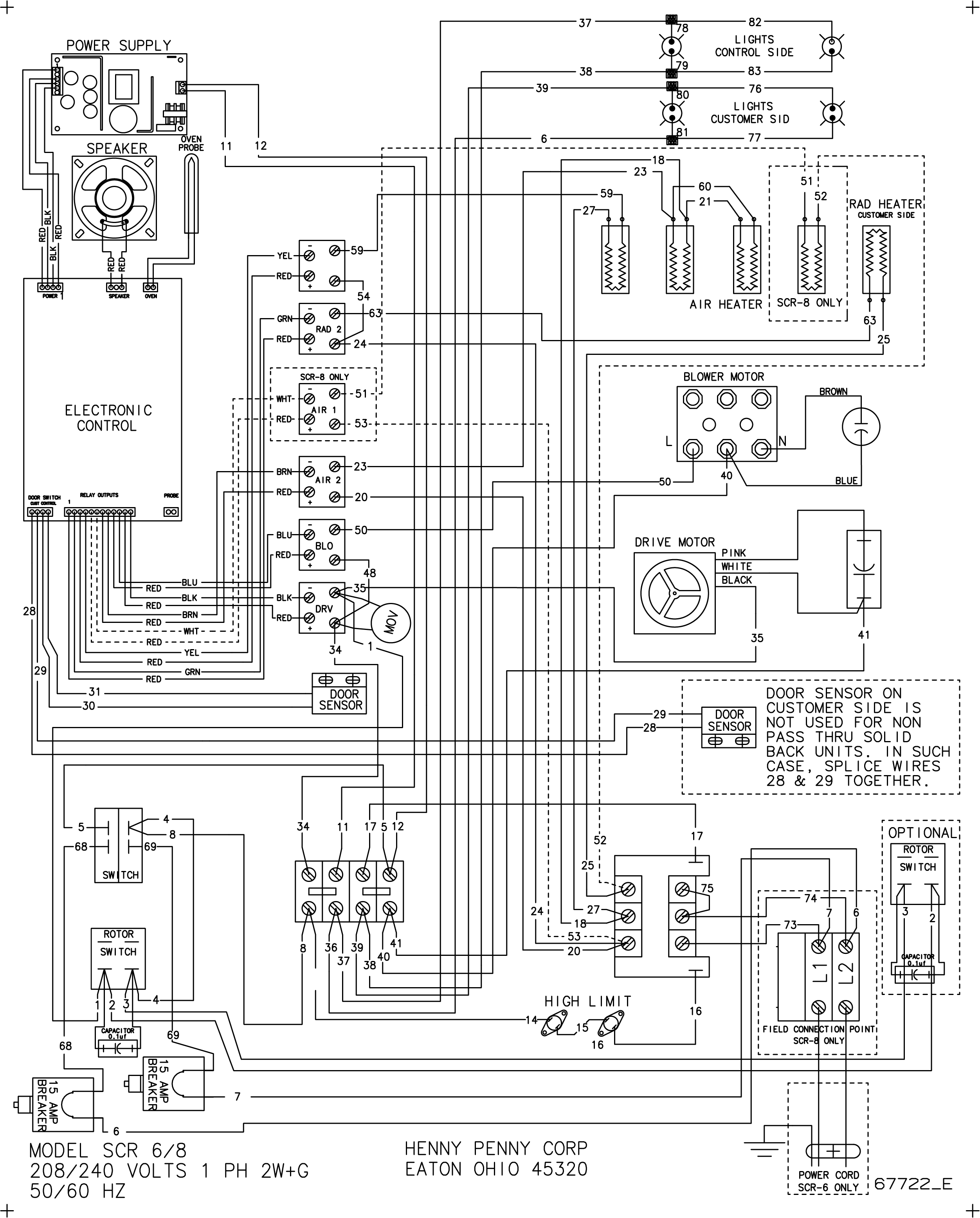

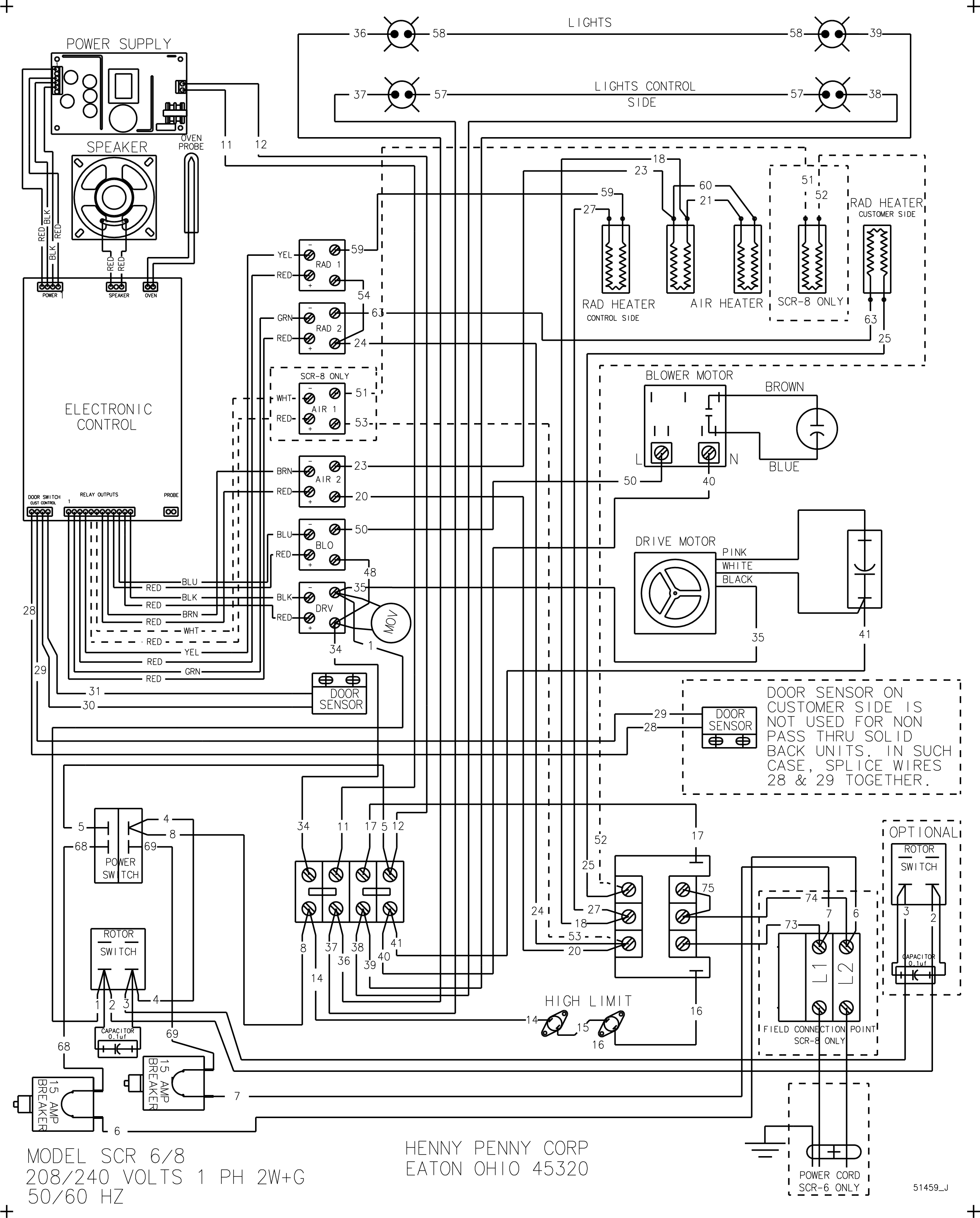

SCR 6/8 208/240V, 1 Ph, 50/60 Hz, 2W+G, SN: CA0610018 & Below - SCR 6, SN: CB0610032 & Below - SCR 8 Wiring Diagram

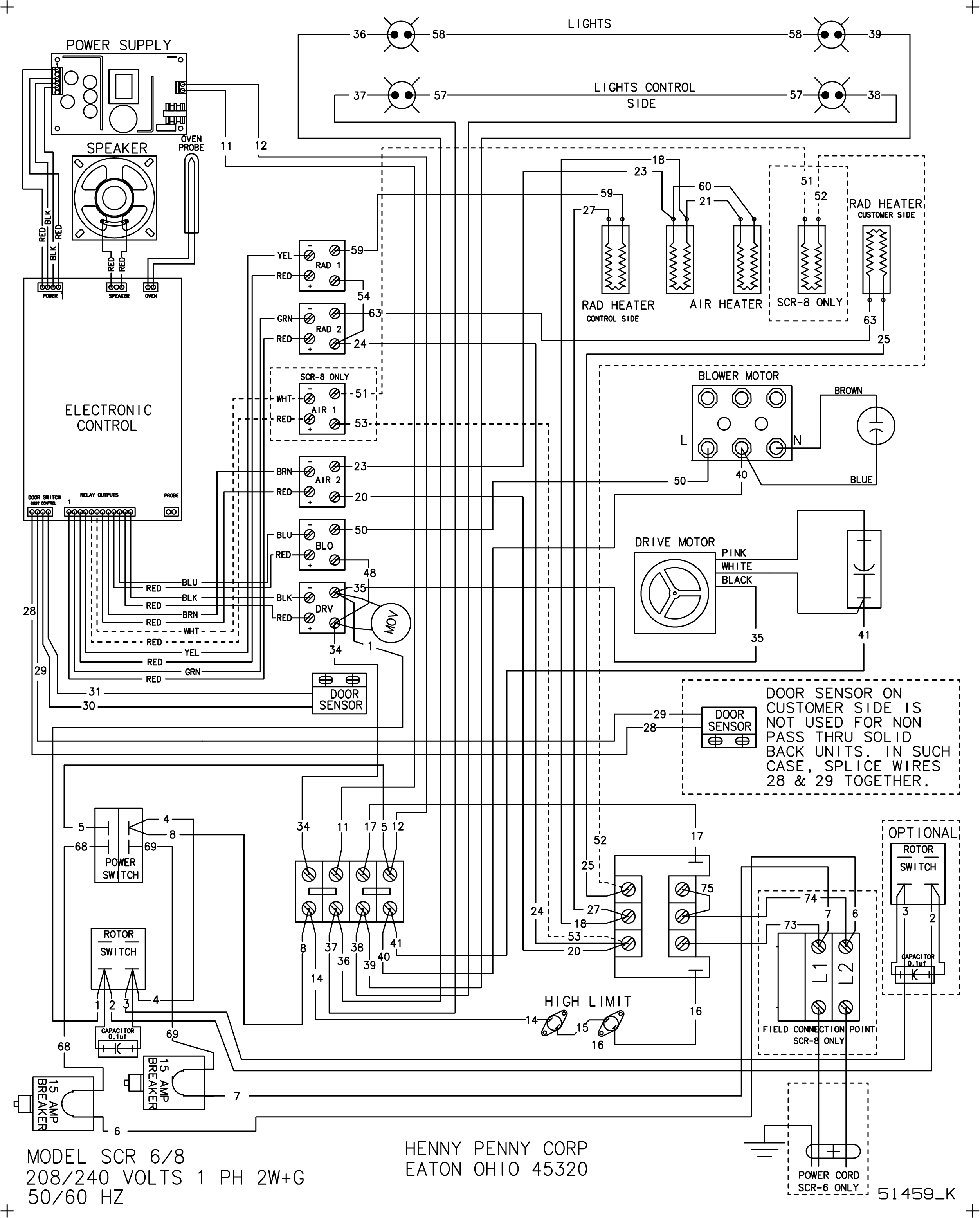

SCR 6/8 208/240V, 1 Ph, 50/60 Hz, 2W+G, SN: CA0610019 & Above - SCR 6, SN: CB0610033 & Above - SCR 8 Wiring Diagram

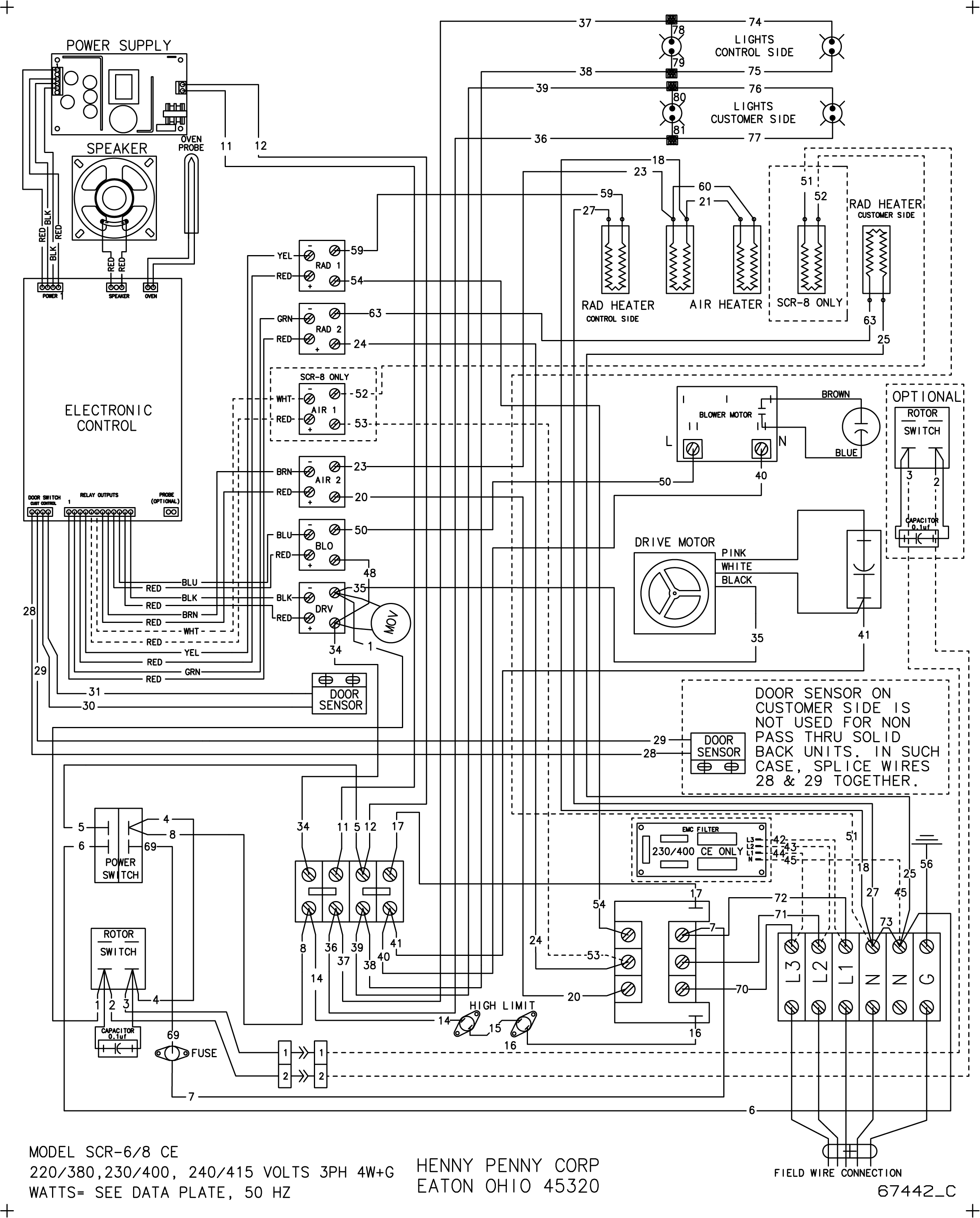

SCR 6/8 CE, 220/380, 230/400, 240/415V, 50 Hz, 3 Ph, 4W+G Wiring Diagram

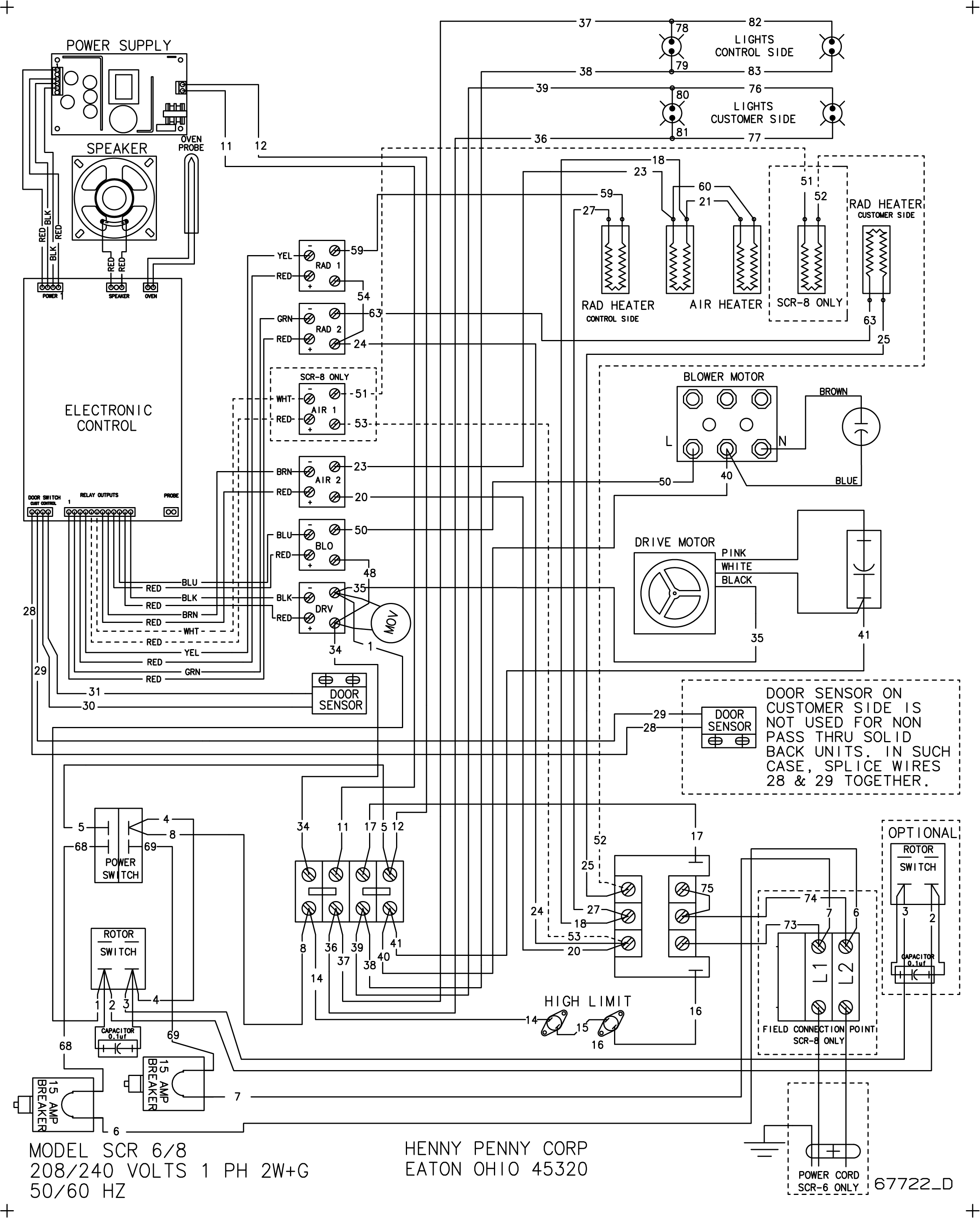

SCR 6/8 208/240V, 1 Ph, 50/60 Hz, 2W+G, International, SN: CA0610018 & Below - SCR 6, SN: CB0610032 & Below - SCR 8 Wiring Diagram

SCR 6/8 208/240V, 1 Ph, 50/60 Hz, 2W+G, International, SN: CA0610019 & Above - SCR 6, SN: CB0610033 & Above - SCR 8 Wiring Diagram

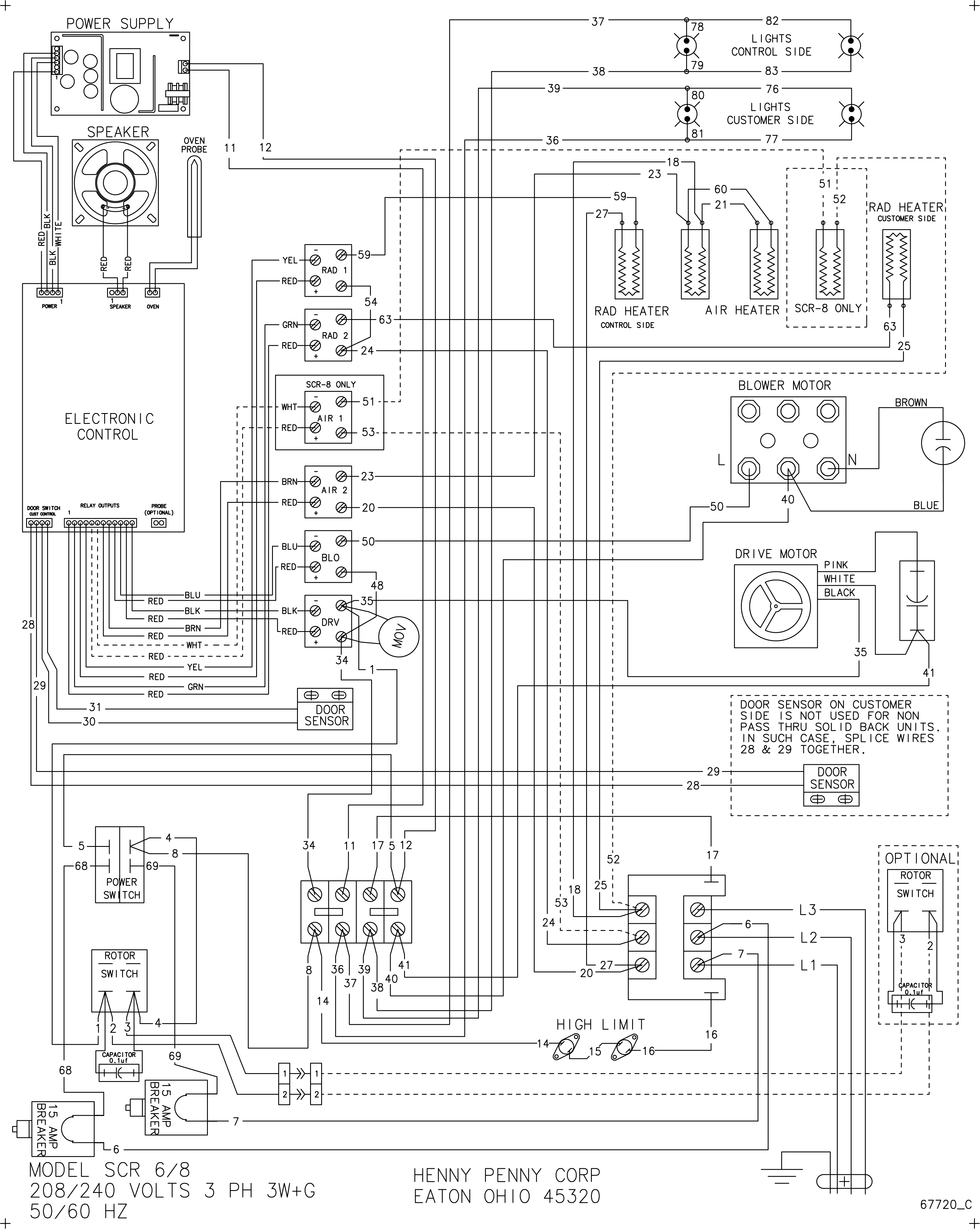

SCR 6/8 208/240V, 50/60 Hz, 3 Ph, 3W+G, SN: CA0610018 & Below - SCR 6, SN: CB0610032 & Below - SCR 8 Wiring Diagram

SCR 6/8 208/240V, 50/60 Hz, 3 Ph, 3W+G, SN: CA0610019 & Above - SCR 6, SN: CB0610033 & Above - SCR 8 Wiring Diagram
