Replacing the Autolift Transformer

To avoid electrical shock or property damage, move the power switch to OFF and disconnect power.

  1. Remove electrical power supplied to the unit.

  2. Remove the control panel.

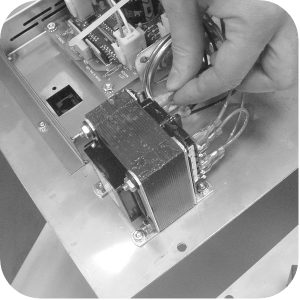

  3. Label and remove wires from transformer.

  4. Use a 3/8 in. nut-driver or wrench to remove nuts securing transformer to panel.

  5. Remove transformer from panel.

  6. Install new transformer.
