Replacing the AIF Transformer

To avoid electrical shock or property damage, move the power switch to OFF and disconnect power.

The transformer reduces voltage down to accomodate those components with low voltage.

1. Remove electrical power supplied to fryer.

2. Remove the control panel.

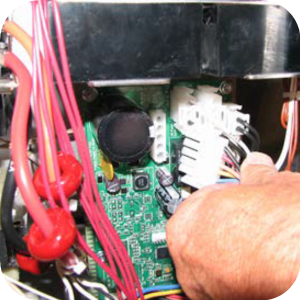

3. Squeeze on the wire connector at the AIF board assembly to disconnect the wires from the transformer.

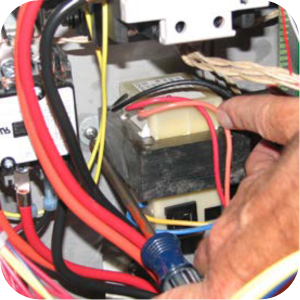

4. Use a cross-tip head screwdriver to remove the two screws securing the transformer.

5. Install the new transformer.
