Replacing the Circuit Breakers

To avoid electrical shock or property damage, move the power switch to OFF and disconnect power.

  1. Remove electrical power supplied to fryer.

  2. Remove the control panel.

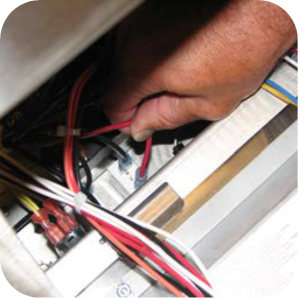

  3. Label and remove wires from the old circuit breaker.

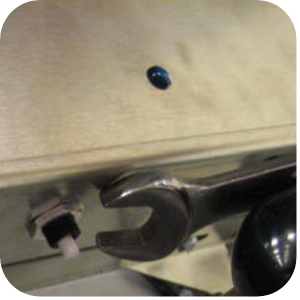

  4. Loosen the nut securing the breaker from underneath with a 9/16 in. wrench.

  5. Pull the old breaker from the control panel area.

  6. Install new circuit breaker.
