Replacing Complete Control Panel

To avoid electrical shock or property damage, move the power switch to OFF and disconnect power.

  1. Remove electrical power supplied to the unit.

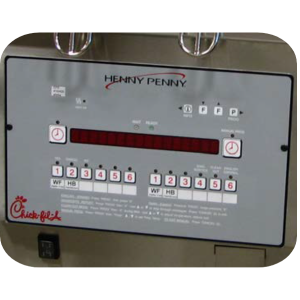

  2. Remove the two screws securing the control panel and lift out.

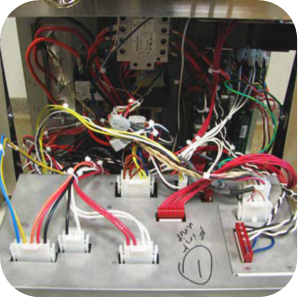

  3. Unplug the wire connectors going to the control board.

  4. Install new control panel in reverse order.
