Replacing the LED Strips

screwdriver

  1. Loosen the screw.

  2. Lift the clamp.

  3. Remove the clear tube.

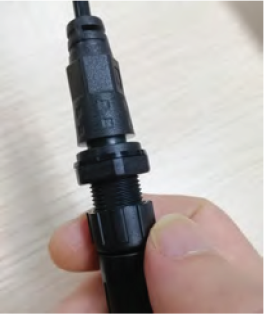

  4. Unscrew the plastic connector.

  5. Remove the LED strip.

    The notch on the male and female connectors must align before plugging in the LED.

  6. Plug in the new LED and snug the connector.
