Replacing Fuse Holder
Required tools
multimeter or ohm meter
|
To avoid electrical shock or property damage, move the power switch to OFF and disconnect power. |
Checkout
-
Carefully pry out on the front cover of the unit, unsnapping the plastic fasteners, and remove front cover.
-
With the front cover removed, remove the 3 screws securing the control panel and hinge the panel down.
-

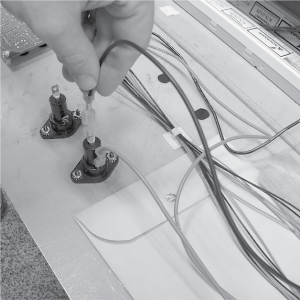

Label wires and pull wires from the terminals of the faulty fuse holder.
-

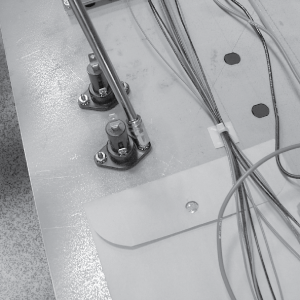

Remove the nuts securing the fuse holder and pull the fuse holder from the unit.
-
Replace with new fuse holder in reverse order.
