Replacing the Heating Element

To avoid electrical shock or property damage, disconnect power before installing or servicing equipment. A qualified technician must perform the service procedures.

Disconnect the electrical supply to the cabinet.
Remove the drawer from the appropriate liner.

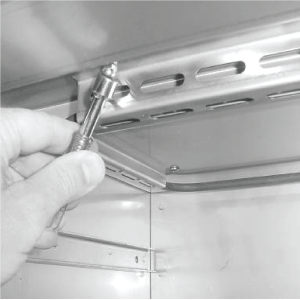

Using a 3/8” socket, remove the four acorn nuts securing the front of the bracket.

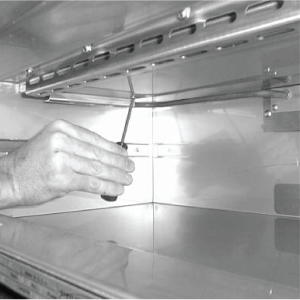

Using a crosshead screwdriver, remove the six screws securing the bracket and remove the bracket.

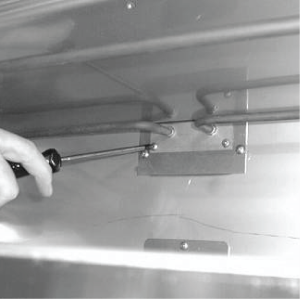

Using a crosshead screwdriver, remove the two screws securing the element to the back of the liner.
Pull the element out towards you until the terminals are exposed.

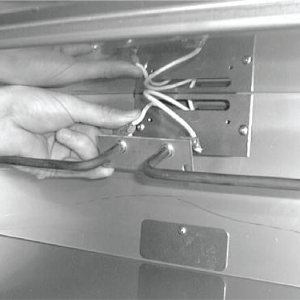

Pull the wires off of the terminals and remove element from the unit.
To check the elements, they should show an ohm reading of 30 ohms, after the wires have been removed.
Install new element in reverse order.
