Replacing the Temperature Probe

To avoid electrical shock or property damage, disconnect power before installing or servicing equipment. A qualified technician must perform the service procedures.

Disconnect the electrical supply to the cabinet.
Remove the appropriate drawer.

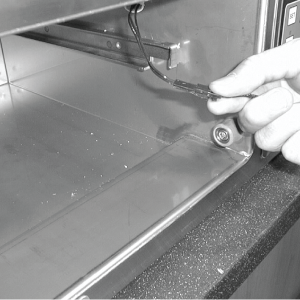

Using a flat blade screwdriver, pry the rubber strain relief from the liner.
Pull the probe wires out of the unit far enough to access the connector encased in a protective cover.
Cut the wire ties on the ends of cover and slide the protective cover up and out of the way.
Disconnect the wires at the connector.
Reconnect the new probe assembly to the unit and pull protective cover back over the connector, then secure with wire ties.
Thread the wire back through the hole and push the strain relief back into the liner.
Place drawer back into unit and the unit is now ready.
