Applies to:

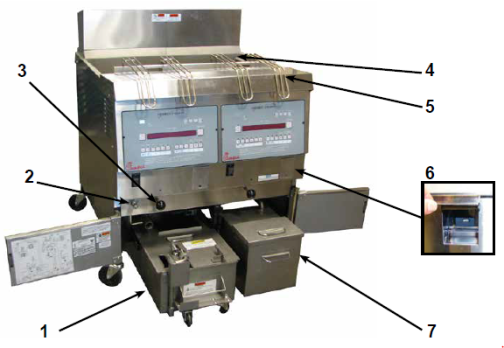

Fryer Components

Item No.	Description	Function
1	Filter Pan Assembly	Oil is drained into this pan and then is pumped through filters to help prolong the use of the oil.
2	Quick Disconnect	Connection for oil disposal shuttle.
3	Drain Valve Knob	Pull-out on black knobs to open drain valve and oil drains from vat. Push-in to close drain valve and oil can be pumped into vat.
4	Vat Covers	Cover the vat when not in use.
5	1/2 Basket	Each vat accommodates 2 baskets w/handles.
6	USB Port	Used to download information from controls.
7	JIB (Oil Reservoir)	Used to hold oil for the automatic oil top-off feature, it should be filled once a day.
