Replacing the Front Glass

Raise the front glass to expose the gas shocks.

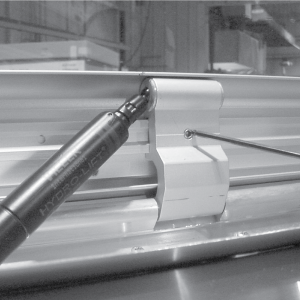

Using a 3 mm Allen wrench, loosen the set screws on the shock bracket armature.

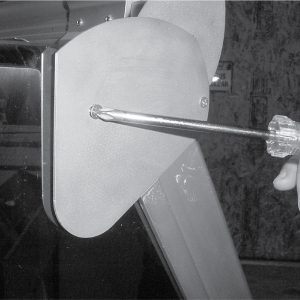

Using a crosshead screwdriver, remove the screws securing the exterior end cap and remove end cap.

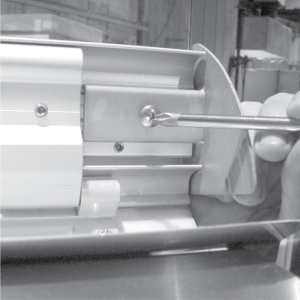

Using a crosshead screwdriver, remove the screws securing the interior end cap and remove cap.

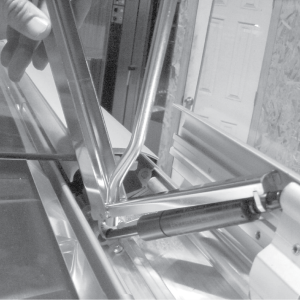

Hold glass upright, then use the gas shock tool, to release the shock from the brackets. Place tool on shock as shown and squeeze handle. Be sure to hold onto glass to prevent glass from breaking.

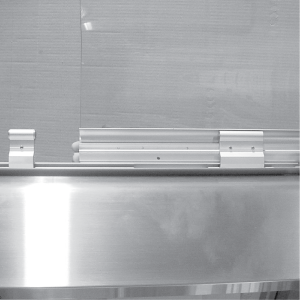

Slide glass assembly off end of unit.

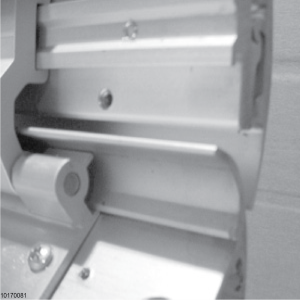

Slide new glass assembly into place, aligning outside edge of glass clamp to the outside edge of the canopy.

Tighten set screws on shock bracket armatures.

Using the gas shock tool, reinstall the gas shocks, placing the bottom end of shock in place first.

Replace interior end cap, with it being completely flush with glass clamp.

Replace the exterior end caps. Make sure spacers are between the end cap and the canopy.
