Replacing the Light Socket
Required tools
3/8” socket
crosshead screwdriver
|
To avoid electrical shock or property damage, disconnect power before installing or servicing equipment. A qualified technician must perform the service procedures. |
-
Raise canopy glass and remove light bulb.
-

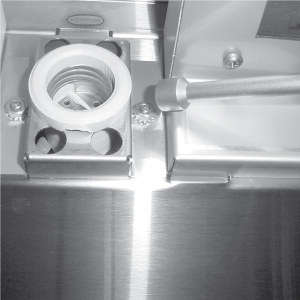

Using 3/8” socket, remove the 2 keps nuts securing the light socket assembly.
-
Pull socket assembly from studs.
-

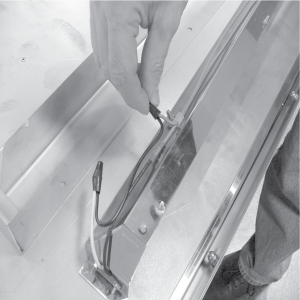

Using a crosshead screwdriver, remove the wires from the socket.
-

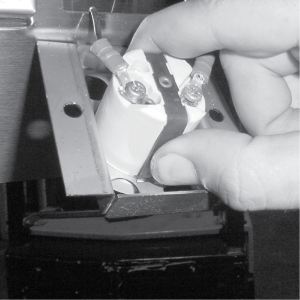

Squeeze the brackets and pull socket from housing.
-
Install new socket in reverse order.
