Replacing the Speaker

To avoid electrical shock or property damage, disconnect power before installing or servicing equipment. A qualified technician must perform the service procedures.

Remove electrical power to unit.
Using crosshead screwdriver, remove the side panel closest to the controls.
Unplug the red connector from the board.

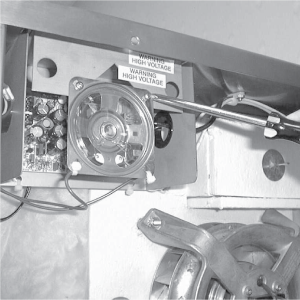

Using a crosshead screwdriver, remove the two screws securing the speaker and remove the speaker.
Replace with new speaker in reverse order.
Replace side panels and restore power to unit.
