Replacing the Blower

To avoid electrical shock or property damage, disconnect power before installing or servicing equipment. A qualified technician must perform the service procedures.

Disconnect electrical supply to unit.
Remove the cabinet top.
Remove the two blower wires from the L1 and L2 wire nuts.
Remove the four screws and lockwashers securing the blower to the blower box.

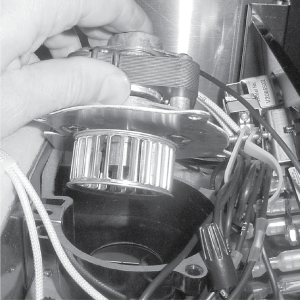

Remove blower.
Install new blower in reverse order of disassembly.
Replace the cabinet top.
Reconnect electrical supply to the cabinet.
