Replacing the Fan

To avoid electrical shock or property damage, disconnect power before installing or servicing equipment. A qualified technician must perform the service procedures.

Disconnect electrical supply to unit.
Remove the cabinet top.

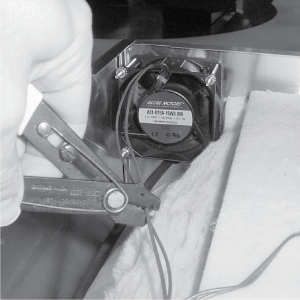

Cut the fan wires about six inches (152.4 mm) from the fan.

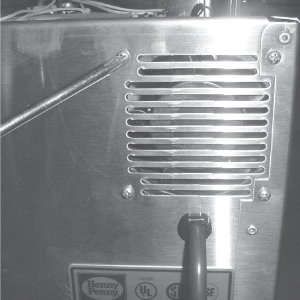

Remove the four nuts and screws securing the fan and remove fan from the cabinet.
Install new fan in reverse order.
Strip ends of cut wires and connect them to the new fan wires.
Replace the cabinet top.
Reconnect electrical supply to the cabinet.
