Replacing the Thermometer

To avoid electrical shock or property damage, disconnect power before installing or servicing equipment. A qualified technician must perform the service procedures.

  1. Disconnect electrical supply to unit.

  2. Remove the cabinet top.

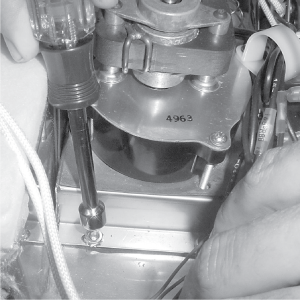

  3. Remove the four nuts securing the blower box to the cabinet.

  4. Pull the blower box up to expose the thermometer and thermostat bulbs. Carefully lay the blower and blower box off to one side.

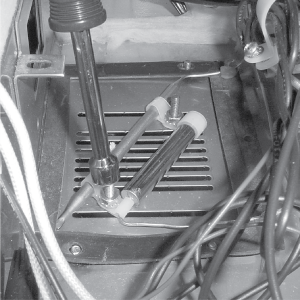

  5. Remove the two nuts securing the bulb retaining clips and remove the thermometer bulb from the clips.

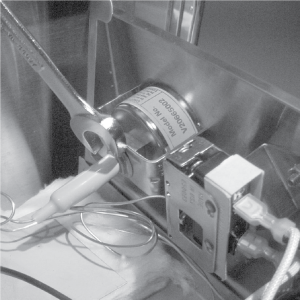

  6. Remove the nut securing the thermometer to the mounting bracket on the back of the thermometer body.

  7. Remove the thermometer through the control panel.

  8. Install new thermometer in reverse order, using the bulb clips provided with the thermometer.

    Be sure that both the thermometer and thermostat capillary tubes pass through the notches in the front corners of the blower box. Failure to do so could permanently damage the thermometer or thermostat and cause improper operation of the cabinet.

  9. Reseal notches in the blower box corners with silicone sealant.

  10. Replace the cabinet top.

  11. Reconnect electrical supply to the cabinet.
