Replacing the Complete Control Panel

Should the control board become inoperative, follow these instructions for replacing the board.

To avoid electrical shock or property damage, move the power switch to OFF and disconnect power.

1. Remove electrical power supplied to the unit.

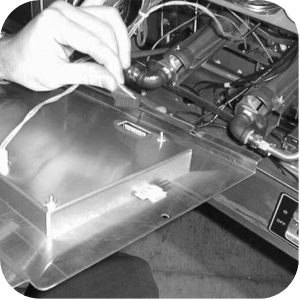

2. Remove the four screws securing the control panel and lift out.



3. Unplug the wire connectors going to the control board.

4. Install new control panel.
