OFG 32X C1000 to C8000 Retrofit Kit
Flat-Head Screwdriver
Crosstip Screwdriver
1/2 in Wrench
Wire Cutter/Stripper
Kit number
140074
Estimated Time
1 Hour to 1.5 hours
-
Drain oil into filter pan.
-
Use a crosstip screwdriver to remove screws from the control panel.
-
Remove wires to C1000 control panel and remove panel from unit.
-

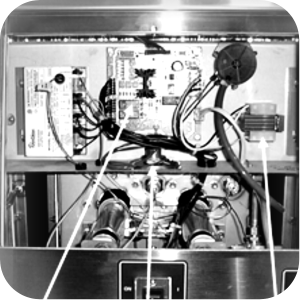

Locate I/O PC board in kit and install on component shroud. Use spacer and keps nuts from kit.
-
Locate speaker assembly in kit and mount in front of I/O board using screws and nuts from kit.
-
Remove the transformer from the C1000 controls and mount on component shroud. Use screws provided in kit.
-
Connect transformer P2 connector on I/O board.
-
Locate C8000 control in kit and connect 4-pin connector from control to probe wires.
-
Connector speaker wires to C8000 control.
-
Connect 4-pin and flat 14-pin connector from C8000 control to I/O board (P14 and P1).
-
Locate 15-pin wire harness in kit and connect to 15-pin connector on in fryer and I/O board.
-
Locate 6-pin wire harness in kit and connect to blower connector and I/O board.
-
Locate 12-pin wire harness in kit and connect 12-pin connector in fryer and I/O board. Refer to wiring diagrams in kit when making connections.
-
Attach ground wire to stud on control panel
-
Tie the wires to keep them from interfering with the components especially burner intakes. Pull wires to left side of the controls and do not bundle the power switch or probe wire with the others for ease of panel removal.
-
Secure C8000 control panel in place with screws provided in kit.
-
Replace wiring diagram 79166 on fryer with 83354 from kit, or 79352 with 83355 or 83356 (Belgium/France).
-
Supply power to fryer and unit is ready for operation. Refer to 12 button controls in Operator's Manual
|
To avoid personal injury or property damage, before starting this procedure, move the main power switch to the off position. Disconnect the main circuit breakers at the circuit breaker box or unplug service cord from wall receptacle. |
![]() | Shock Hazard HIGH VOLTAGE PRESENT! To avoid personal injury, this procedure should only be performed by a service technician who is trained and understands electrical safety. |
Notes: Gas open fryers before serial #BN0908013 require a 9-pin to 12-pin power adapter harness in kit.
