Applies to:
Replacing the Filter Beacon
|
To avoid electrical shock or property damage, move the power switch to OFF and disconnect power. |
-
Remove right or left side panel for end vats, or hinge-down the control panel for center vats.
-
Pull apart the light by pulling on the rear of the light and removing the front part of the light from the front of the fryer.
-

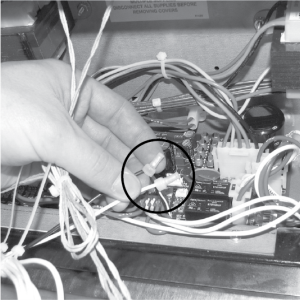

Locate and cut the light wires and pull the light from unit.
-
Connect new light wires using wirenuts, and install light in reverse order.
-
Restore power to the unit.
