Replacing the Power Switch

To avoid electrical shock or property damage, move the power switch to OFF and disconnect power.

  1. Do one of the following:

    • For switches on top rear cover, remove the cross head screws securing the top rear cover and let hinge down.

    • Remove the crosshead screws securing the bottom, rear cover and let hinge down.

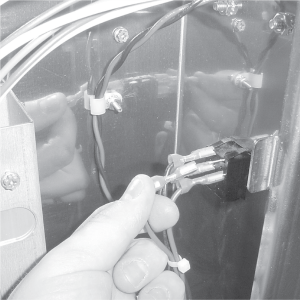

  2. Label wires and then pull them from the switch.

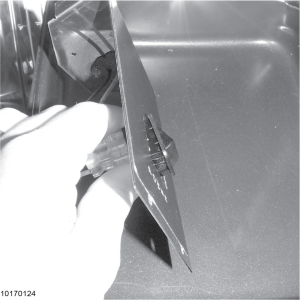

  3. Press tabs together and pull switch from front of panel.

  4. Install new switch in reverse order.
