Troubleshooting a Blank Display on FlexFusion Team Combi Ovens

Overview

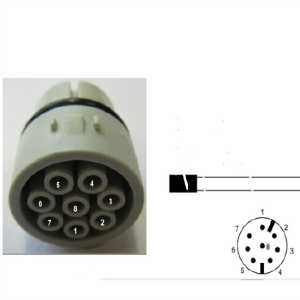

When troubleshooting the control part # MM10019401 on a Flex Fusion Team Unit, you can reference the following voltage checks on the round control harness part # MM10021779 in the below table.

Color	From	To	Description	Top/Bottom
Gray (GR)	-X-30-1	+1-A1-X9-2	+24V DC Main Supply	Top
Pink (RS)	-X-30-2	+1-A1-X9-1	-24V DC Main Supply	Top
Blue (BL)	-X-30-3	+1-T1- +V	+24V DC To Rocker Switch	Top
Red (RT)	-X-30-4	+1-A3-X2-3	+24V DC From Rocker Switch	Top
White (WS)	-X-30-5	+2-T1- +V	+24V DC To Rocker Switch	Bottom
Brown (BN)	-X-30-6	+2-A3-X2-3	+24V DC From Rocker Switch	Bottom
Green (GN)	-X-30-7	+2-A1-X9-2	+24V DC Main Supply	Bottom
Yellow (GE)	-X-30-8	+2-A1-X9-1	-24V DC Main Supply	Bottom
