Replacing Gas Valve

Required tools

• Gas Valve

• 1/2" NPT Elbow

• 1/4" Tube Elbow

• Pilot Tube

• Pilot Tube Compression Fittings

• Screws

Required tools

• 7/16" (11 mm) Wrench

• Adjustable Wrench

• 3/8" (10 mm) Socket or Nut Driver

• White Pipe Thread Sealant

• Basic Hand Tools

Only perform this procedure when the fryer is cool or severe burns may result.

Preparing Fryer

1. Turn power switch off.

2. Ensure fryer is cool to the touch before moving.

3. Pull out fryer and unplug from power source.

Replacing Gas Valve

1. Remove 2, 3, or 4 screws, depending on fryer, securing front cover using drill with crosstip bit or screwdriver.



2. Unplug wire connector. Remove cover and set it aside.



3. Using 3/8" (10 mm) socket or nut driver, remove 2 nuts securing GMU bracket. Lower bracket to service position, replace nuts and hand tighten to secure.



4. Using 7/16" (11 mm) wrench, loosen compression fitting on brass elbow and pull pilot tube out.

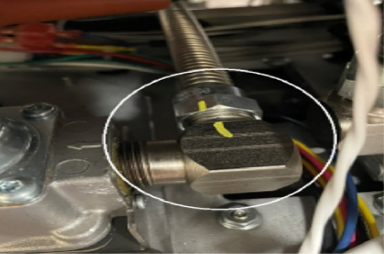

5. Use adjustable wrench, loosen gas flex line nut on both elbows.



6. Disconnect wiring on gas valve coils.

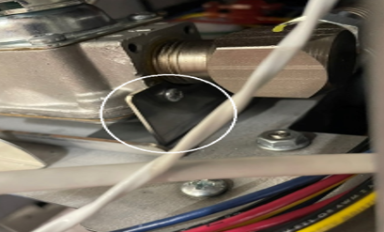

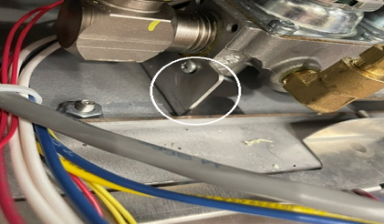

7. Using 3/8" (10 mm) socket or nut driver, remove 2 nuts securing gas valve brackets.

NOTE: Stem cover is secured by nut on right hand side. Support while loosening nut and remove. Set cover aside.

8. Remove gas valve.

9. Locate new gas valve, 1/2 NPT elbows, and brass elbow from kit. Using white pipe thread sealant, assemble elbows onto gas valve.

10. Using drill with crosstip bit or screwdriver, remove 2 mounting brackets from old gas valve and install onto new gas valve.

11. Install new gas valve assembly on fryer.



12. Reinstall 2 nuts using 3/8" (10 mm) socket or nut driver to secure gas valve mounting brackets.

13. Reconnect wiring on gas valve coils.

14. Reinstall gas flex line nut on both elbows, using adjustable wrench to tighten.

15. Locate new pilot tube and compression fittings from kit and install.

16. Loosen 2 nuts securing GMU bracket, move bracket back into operating position and reinstall nuts using 3/8" (10 mm) socket or nut driver to tighten.

17. Reconnect wire connector on front cover. Reinstall front cover using drill with crosstip head bit or screwdriver to tighten screws.

18. In reverse order, complete steps 3 through 1 in Preparing Fryer, and return fryer to operation.

To avoid personal injury or explosion, check piping and fittings for gas leaks. Leaking gas may cause an explosion.

Check for leaks per Gas Supply. If a leak is detected, shut off gas control valves and repair leak.
