Specifications

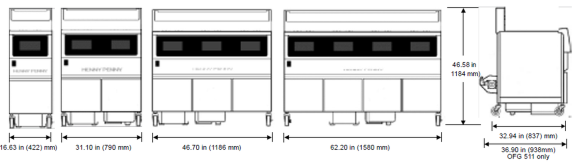

Fryer Dimensions
| OFG 51X | 511 | 512 | 513 | 514 |
|---|---|---|---|---|
|
Width |
16.63 in. (422 mm) |
31.10 in. (790 mm) | 46.70 in. (1186 mm) | 62.20 in. (1580 mm) |
| Depth | 36.90 in. (938 mm) | 32.94 in. (837 mm) | 32.94 in. (837 mm) | 32.94 in. (837 mm) |
| Height | 46.58 in. (1184 mm) | 46.58 in. (1184 mm) | 46.58 in. (1184 mm) |
46.58 in. (1184 mm) |
Crated Weights
| OFG 511 | OFG 512 | OFG 513 | OFG 514 |
|---|---|---|---|
| 340 lb. (154 kg.) | 509 lb. (231 kg.) | 738 lb. (335 kg.) | 989 lb. (449 kg.) |
Vat Dimensions
21 inches front to back
12.2 inches side to side
9.5 inches top to bottom
Electrical Specifications
| Volts | Phase | Hertz | kW per vat* | 14kW Heating Amps per vat | 17 kW Heating Amps per vat | Wire† |
| 208 | 3 | 60 | 14.0/17.0 | 39.4** | 48** | 3+G |
| 220-240 | 3 | 50/60 | 14.0/17.0 | 36** | 44.6** | 3+G |
| 240 | 3 | 60 | 14.0/17.0 | 34.2** | 41.6** | 3+G |
* Split vats include two 7.0 or 8.5 kW heating elements connected to one power cord.
** Additional amperage required to operate non-heating electrical components.
† Units shipped without power cord and plug must have power cord and plug installed on site by a qualified electrician.
|
14 kW Heating |
17 kW Heating |
|---|---|
|
Not available for all destinations |
|
| 208,240 V only | 208,240 V only |
|
|
|
|
3NG NEMA 15-60P |
NEMA L21-20P |
| Required in Canada for 14 kW heating | |
Straight or right angle plug.
Not available for all destinations.
