OFG 51X Wiring Diagrams

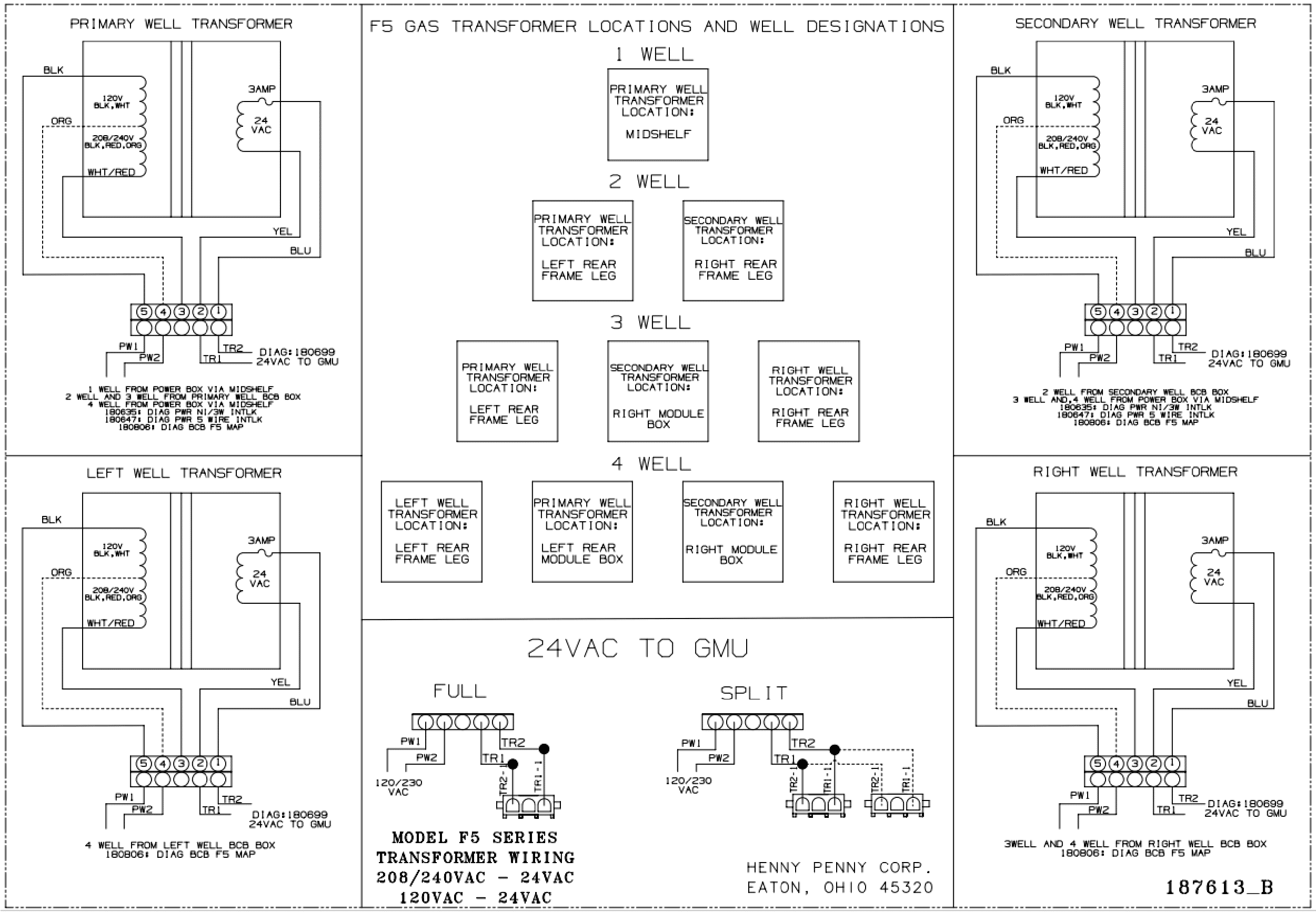

120V, 208V - 240V Power supply power distribution wiring diagrams labeled on unit

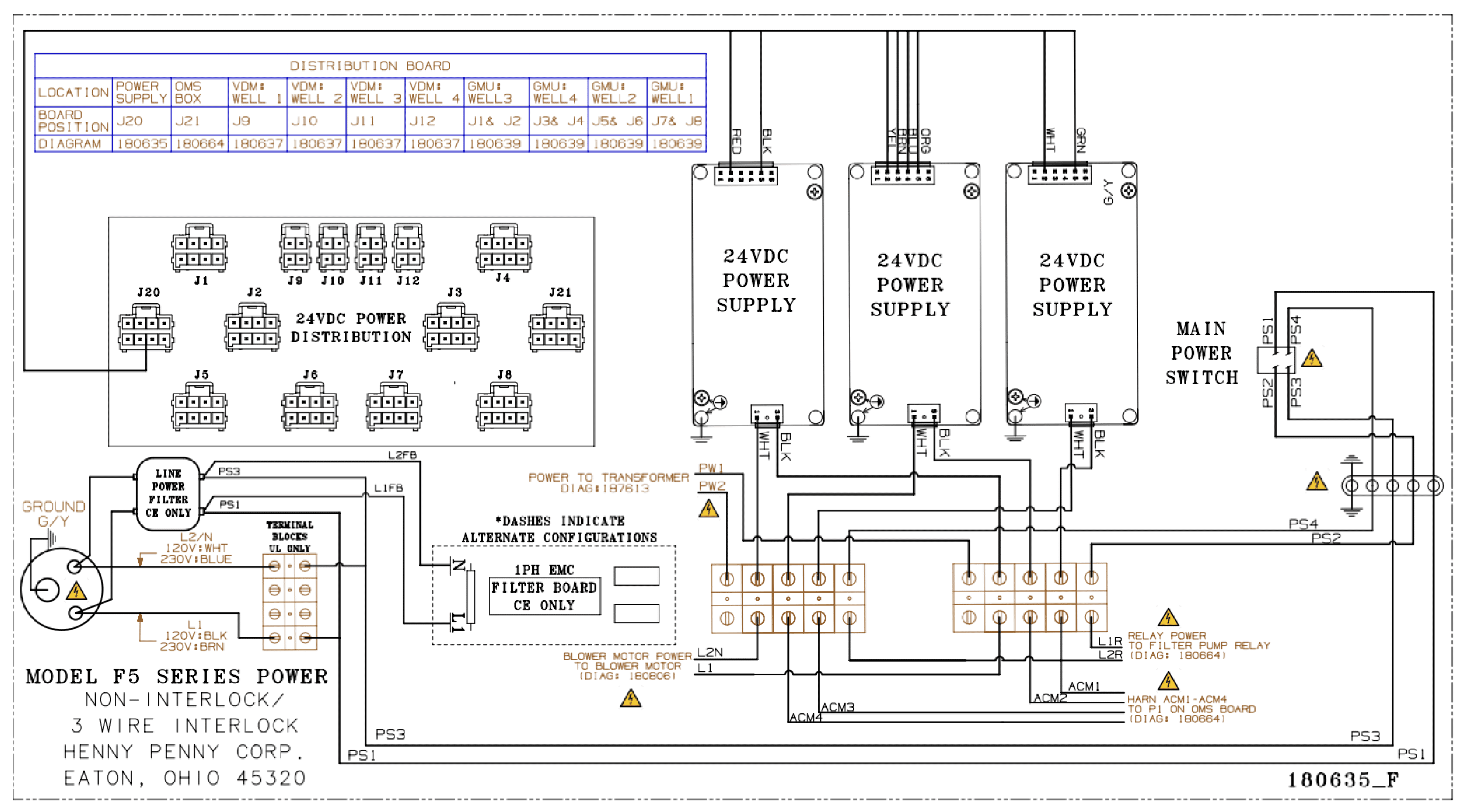

180635 F Power Supply and Distribution Diagram - Non-Interlock/3 Wire Interlock

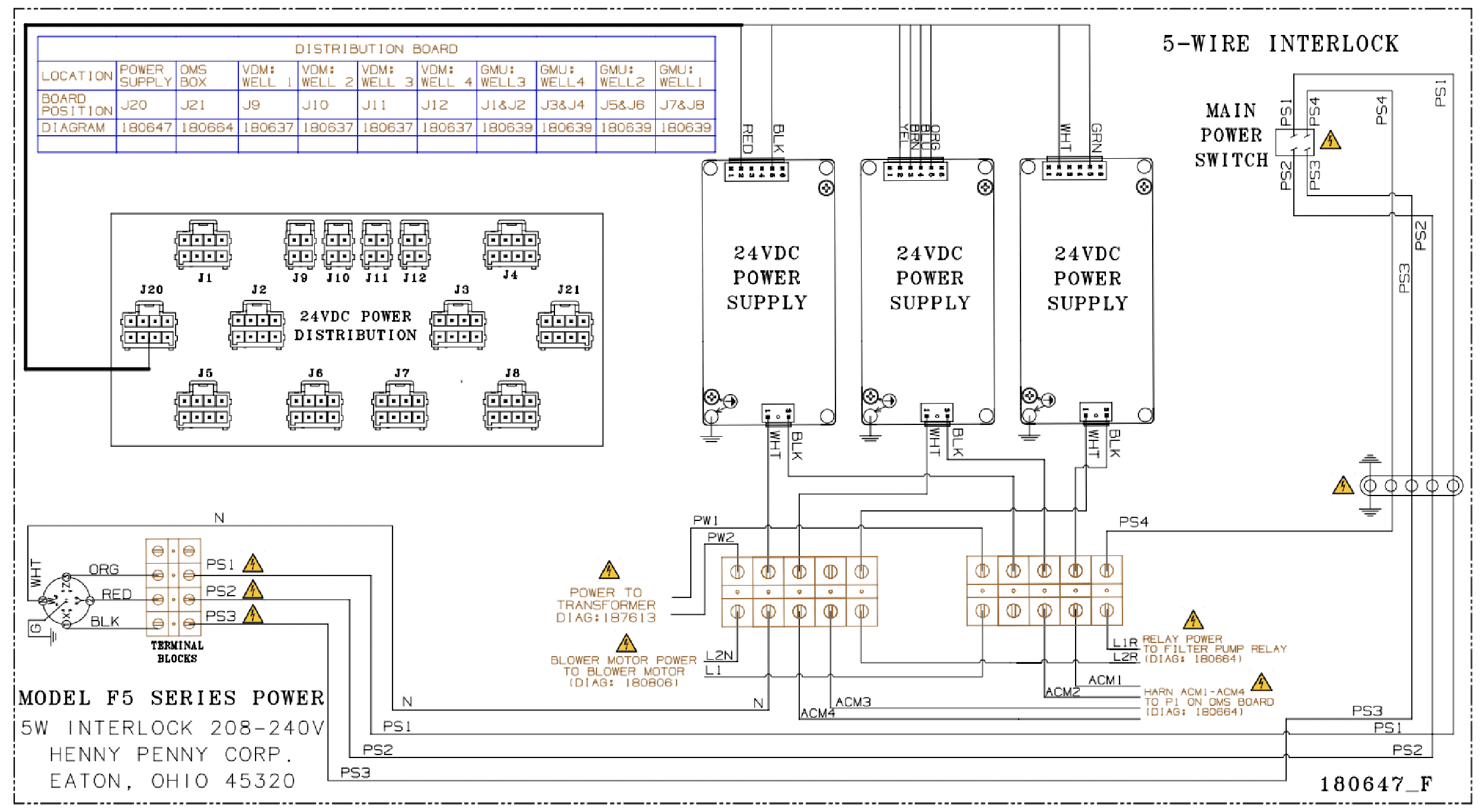

180647 F Power Supply and Distribution Diagram - 5 Wire Interlock

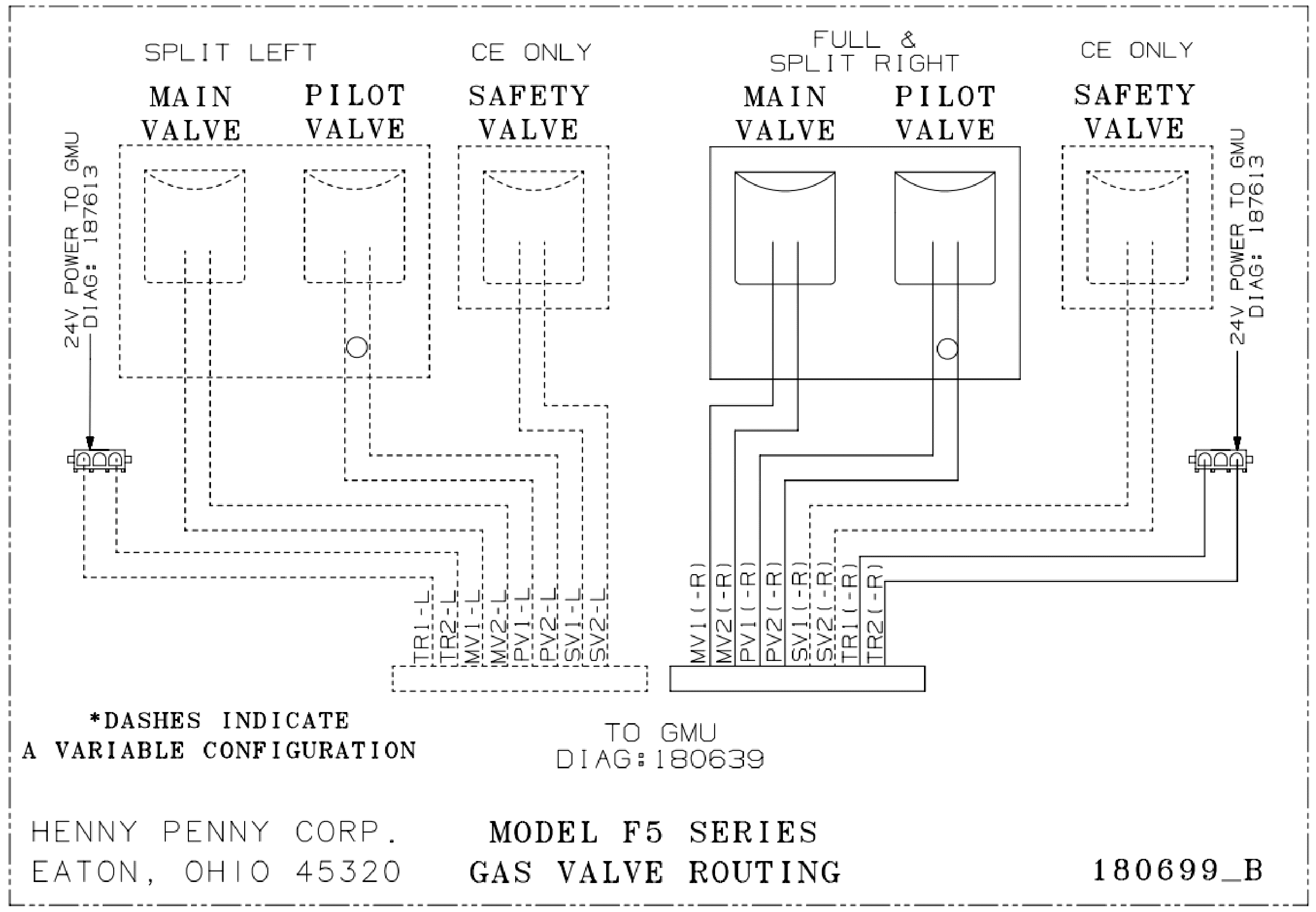

Wiring Diagrams

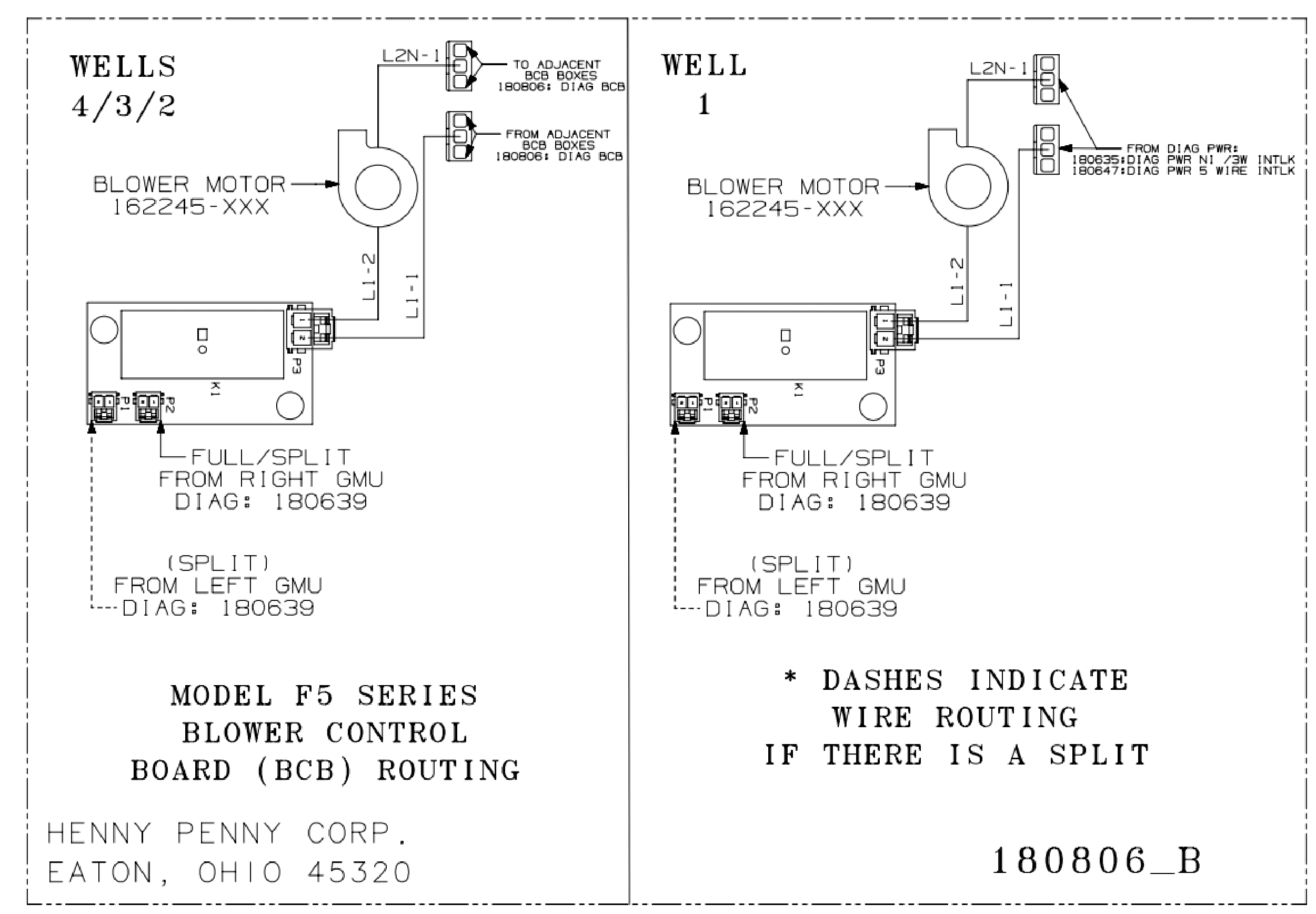

180806 B Blower Control Board Diagram

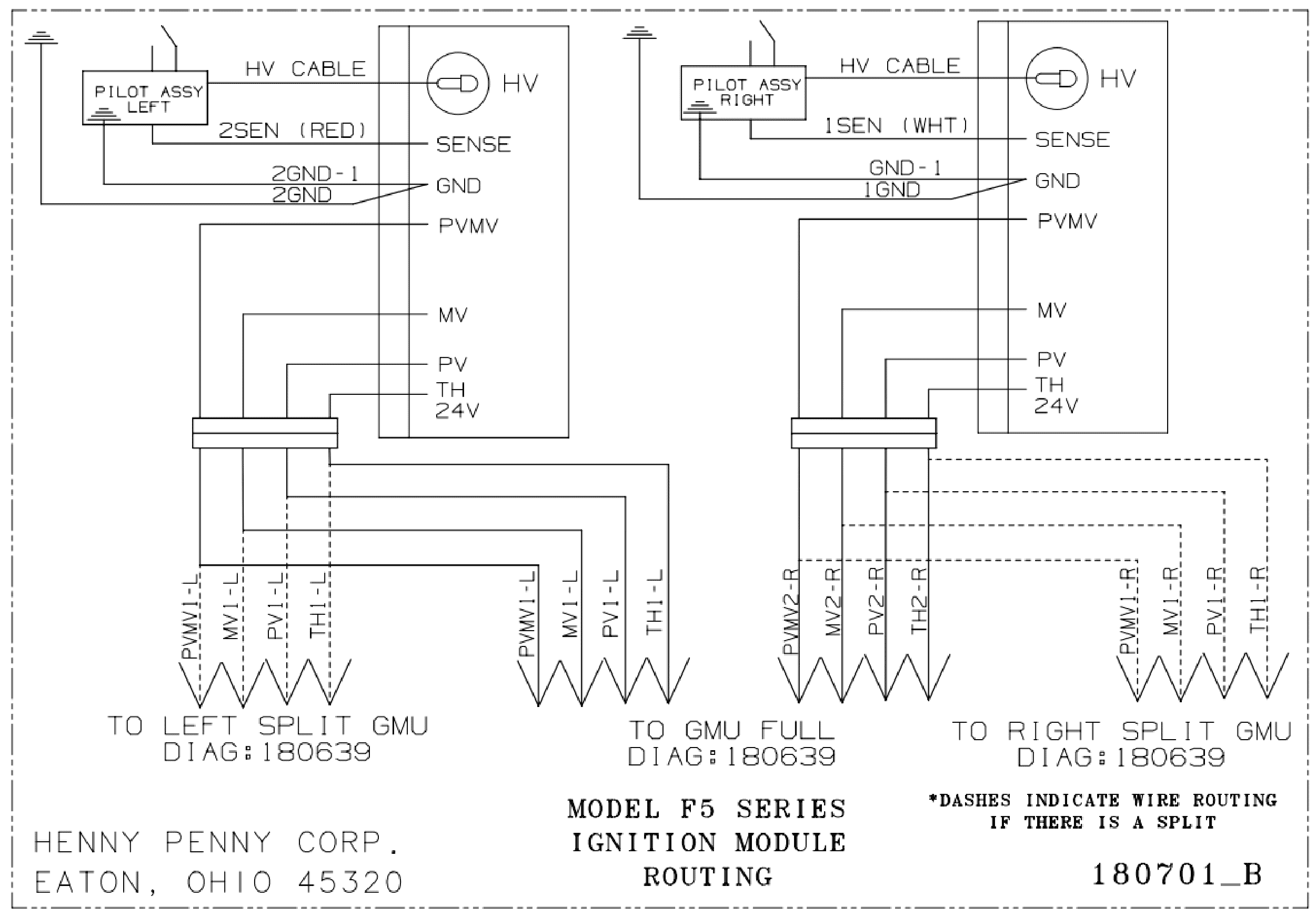

180701 B Ignition Module Diagram

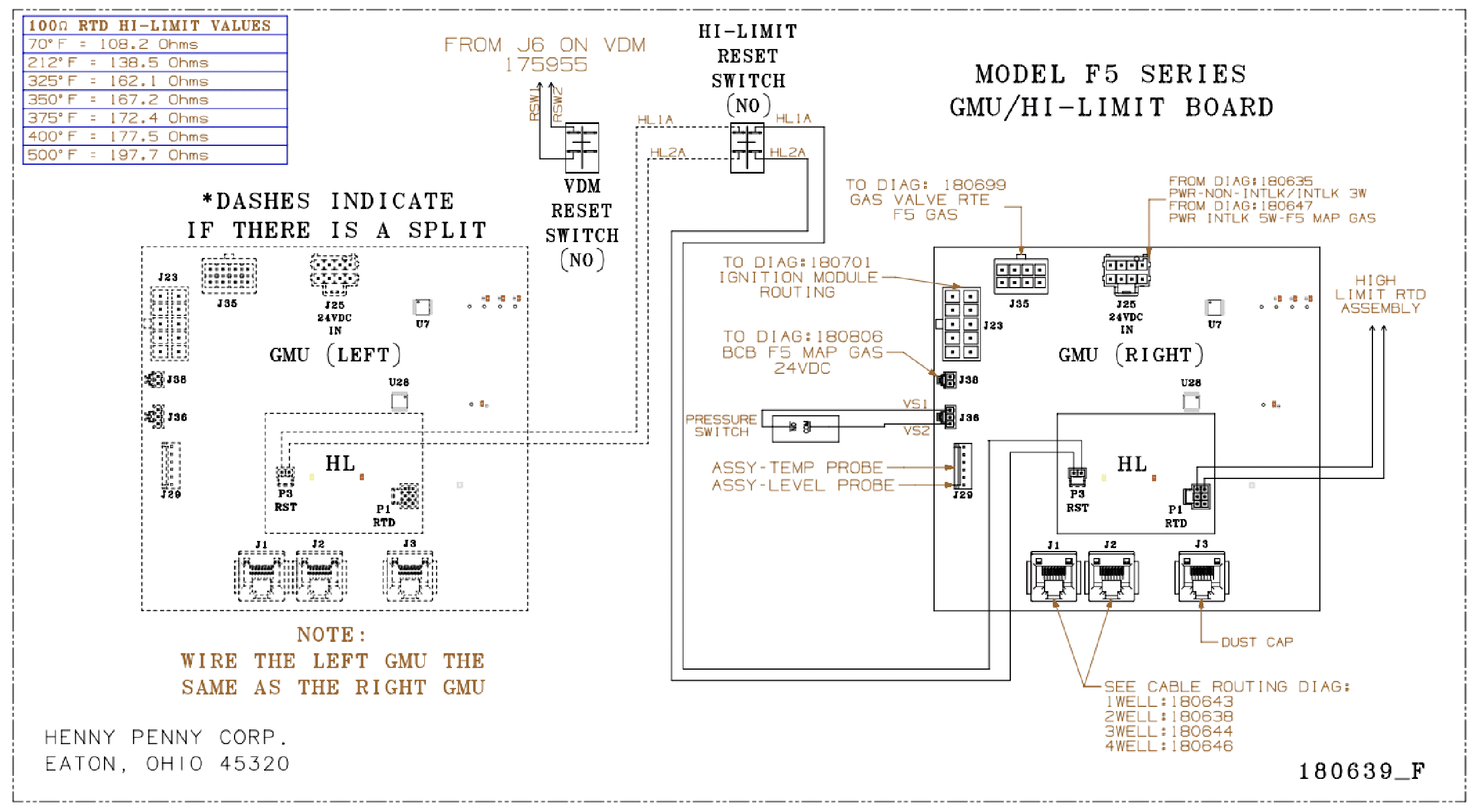

180639 F High Limit GMU Diagram

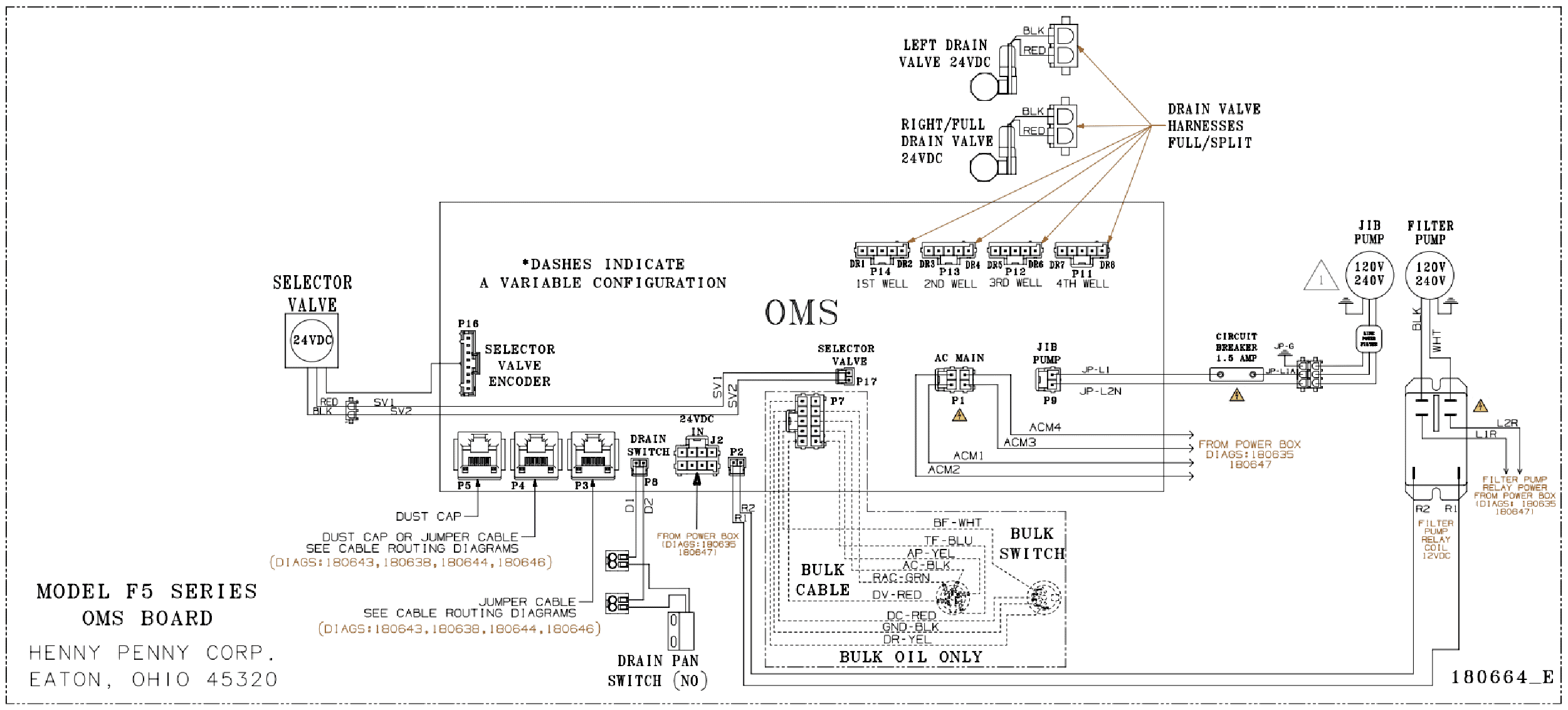

180664 E OMS Filter Board Diagram

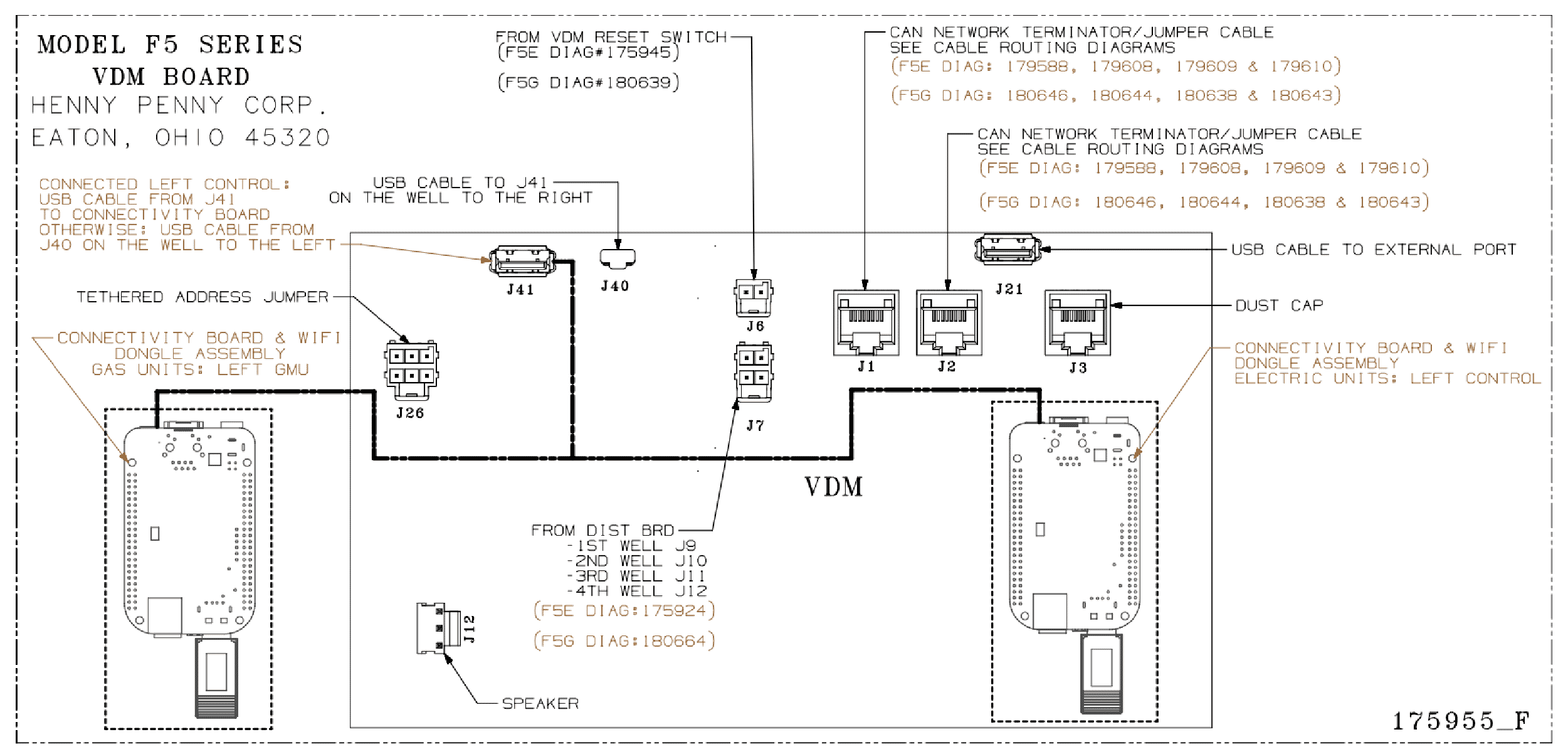

175955 F Display Control Diagram - Rear

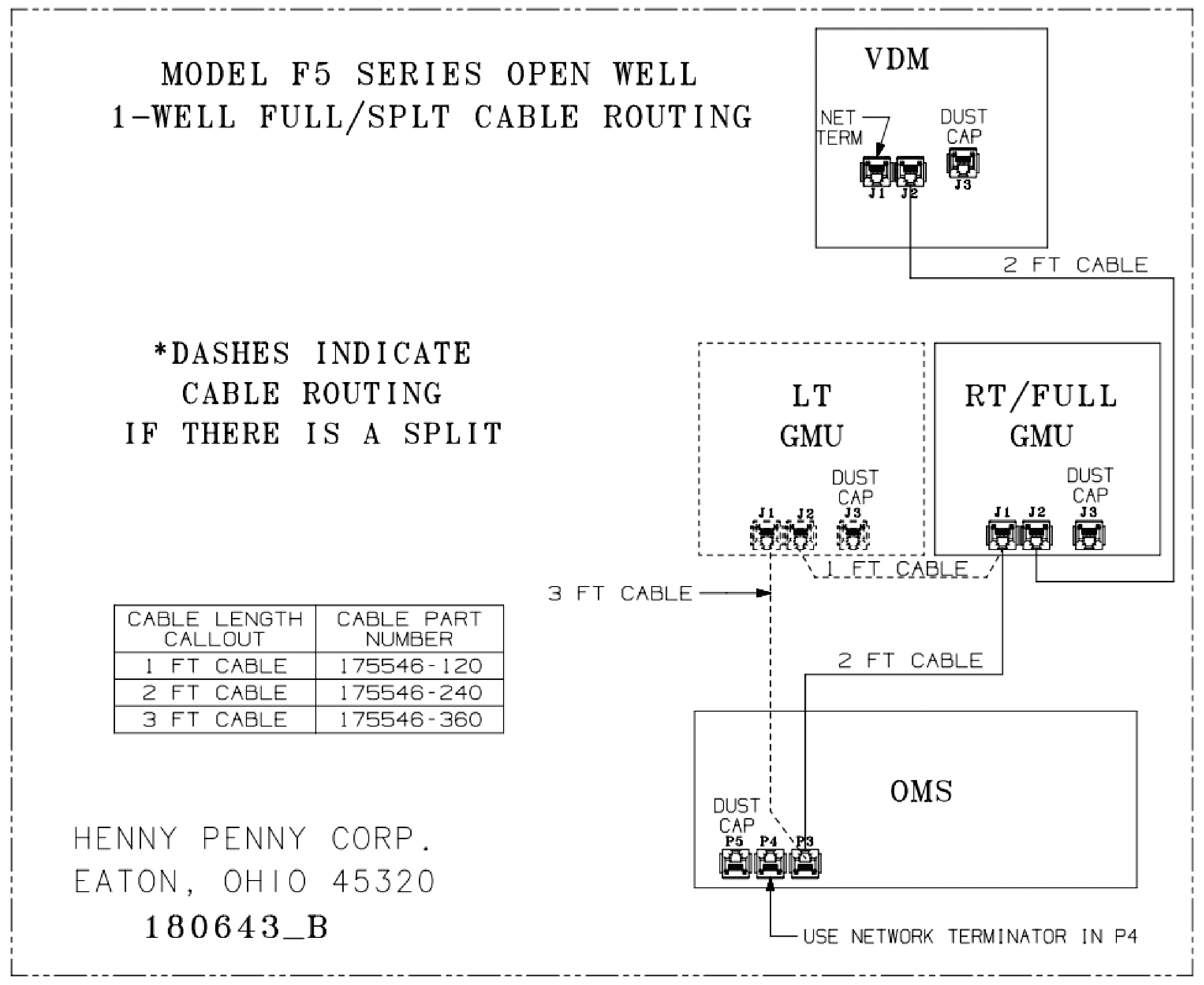

180643 B Display Control Communication Cable Routing Diagram - 1 Well Fryer

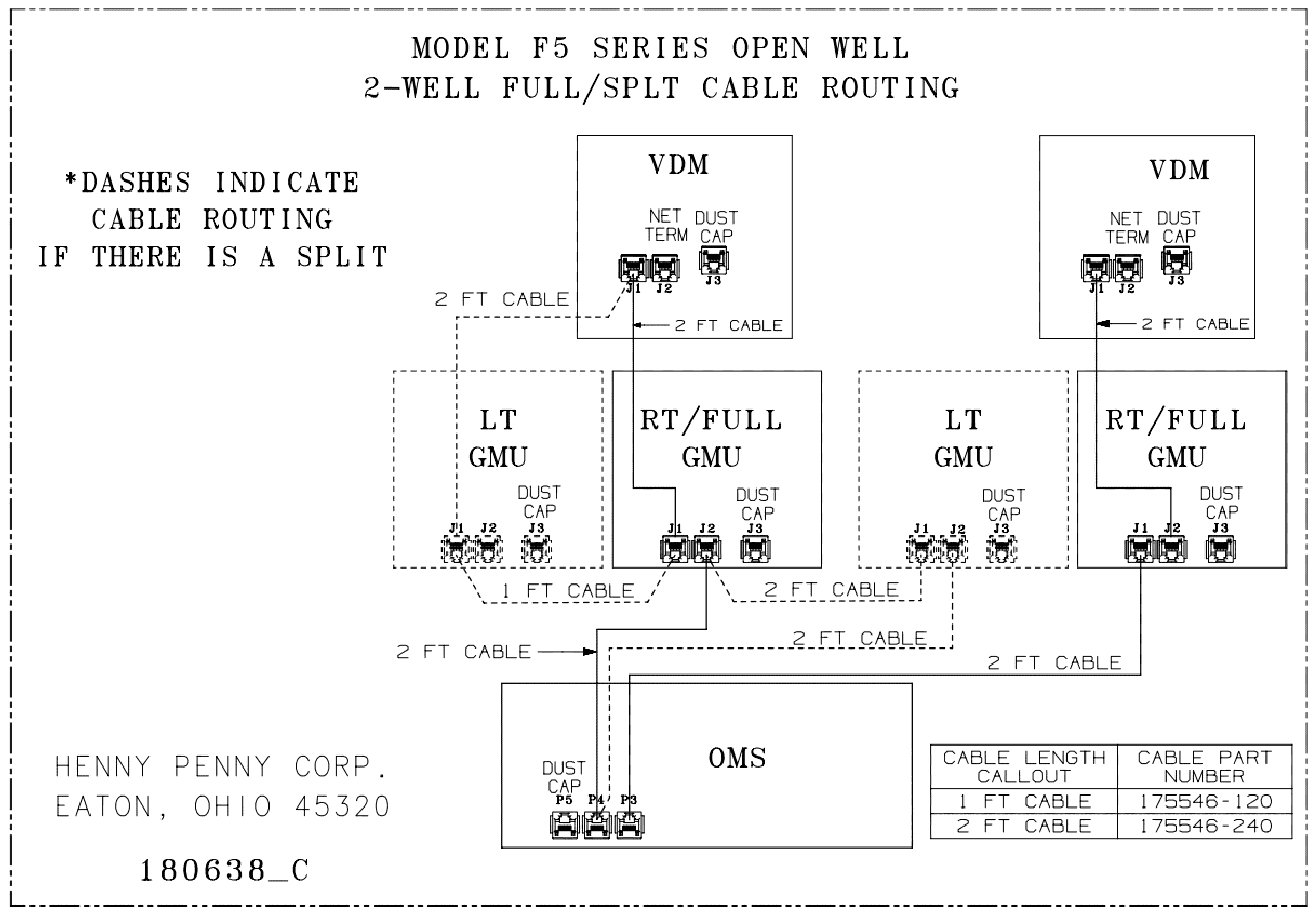

180638 C Display Control Communication Cable Routing Diagram - 2 Well Fryer

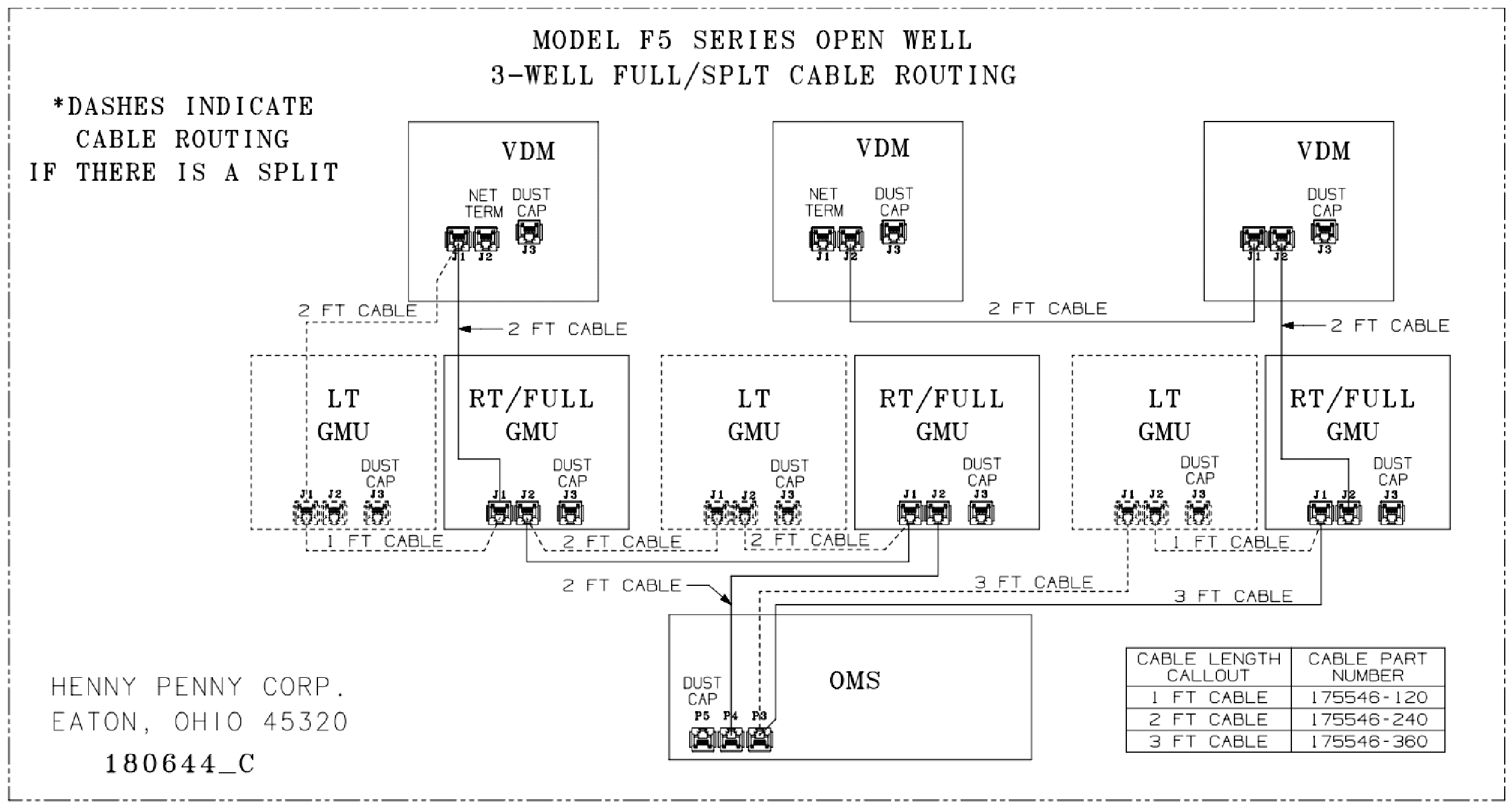

180644 C Display Control Communication Cable Routing Diagram - 3 Well Fryer

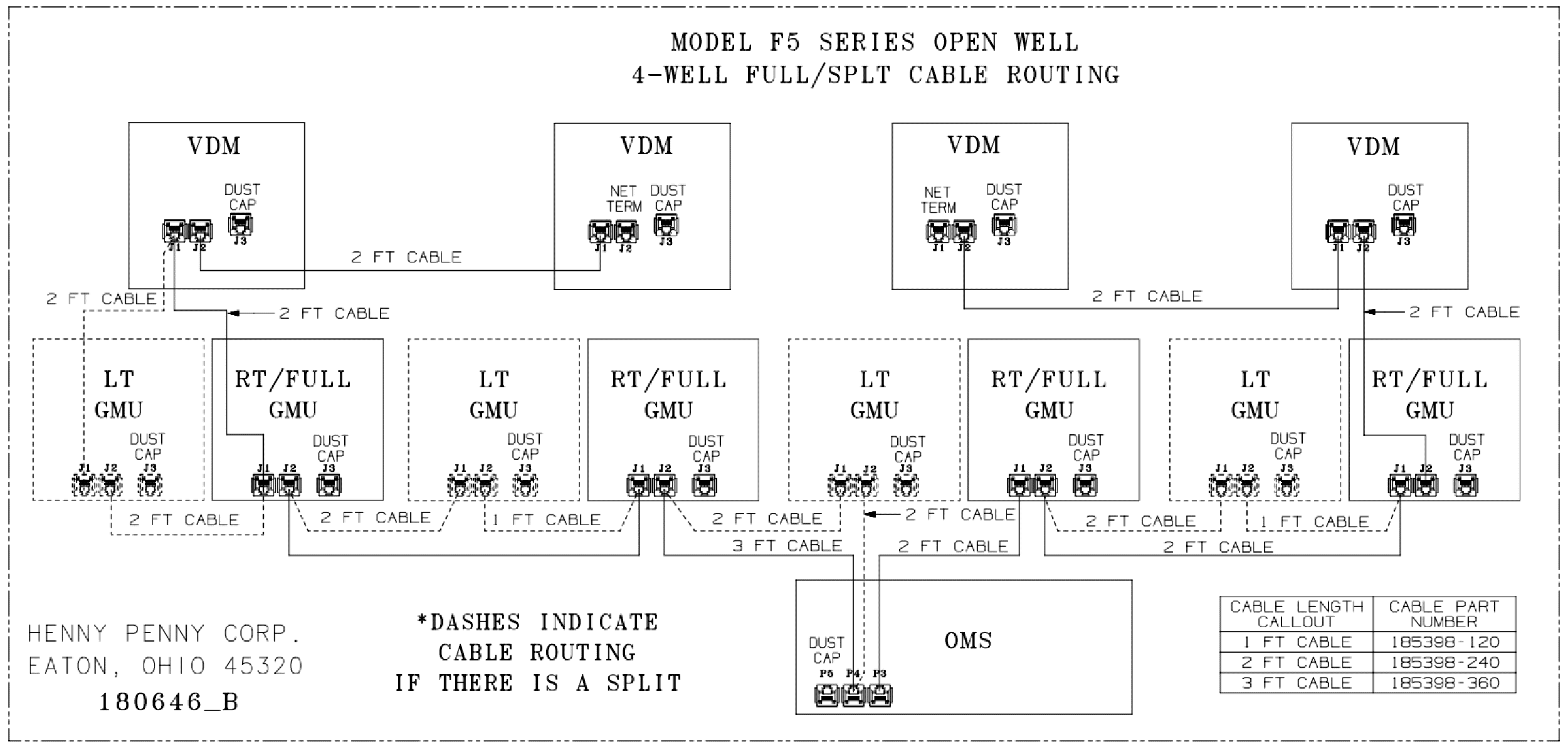

180646 B Display Control Communication Cable Routing Diagram - 4 Well Fryer
