Applies to:
LVG 300 Wiring Diagrams
This product is in test and not for sale at this time.
120V Power supply power distribution wiring diagrams labeled on unit

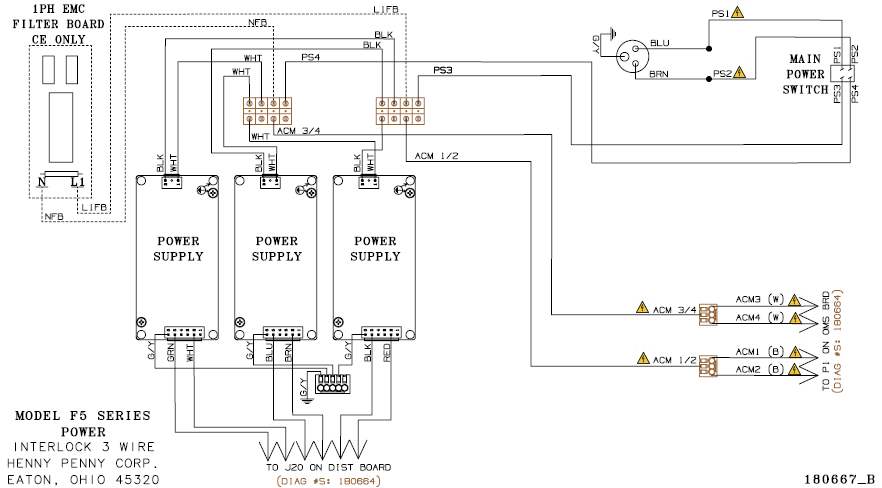

180667 B Power Distribution Label

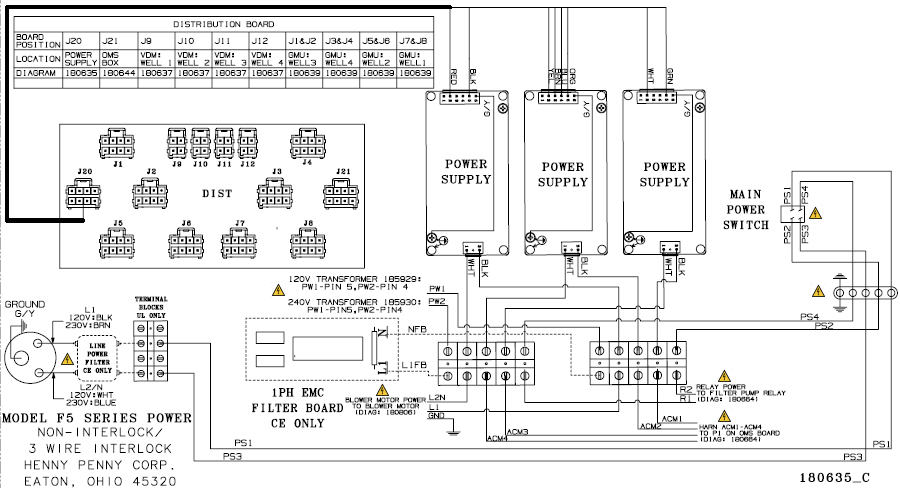

180635 C Power Distribution Label
208 – 240V Power supply power distribution wiring diagrams labeled on unit

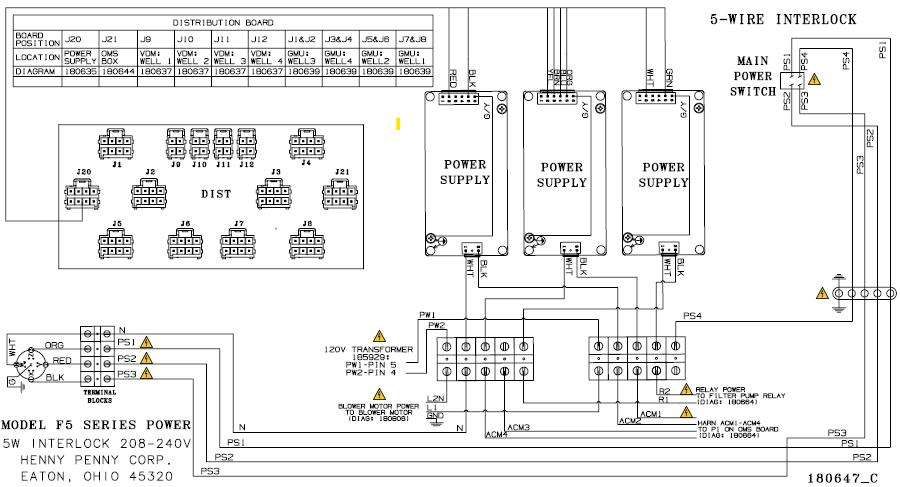

180647 C Power Distribution Label

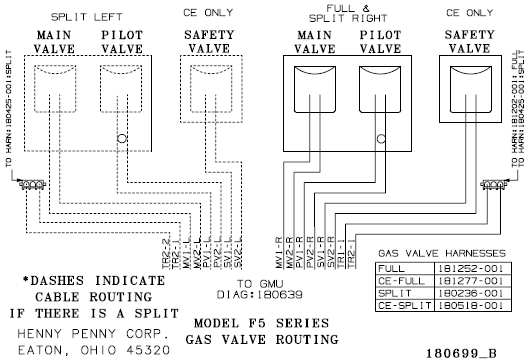

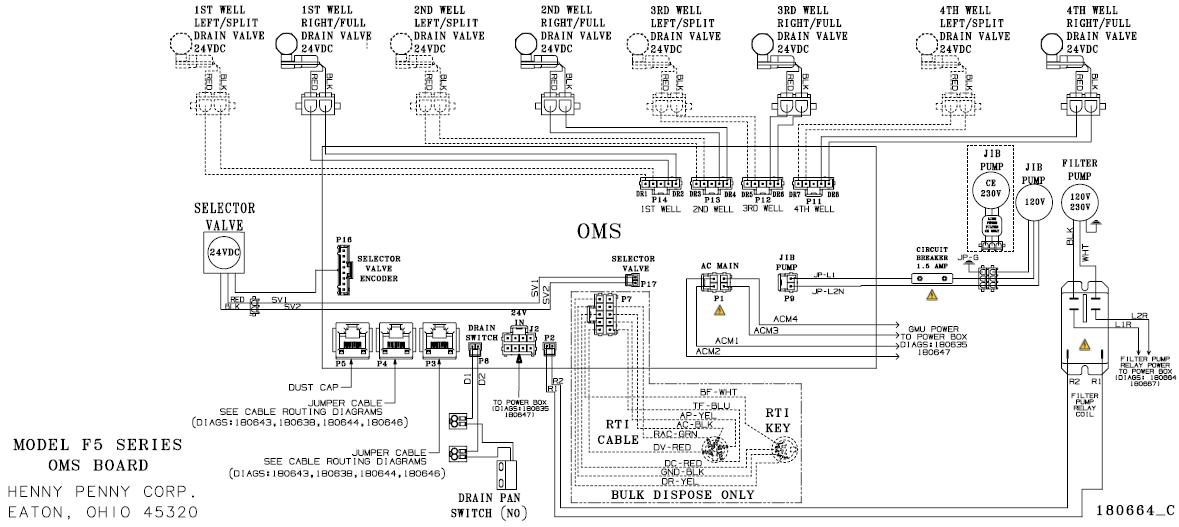

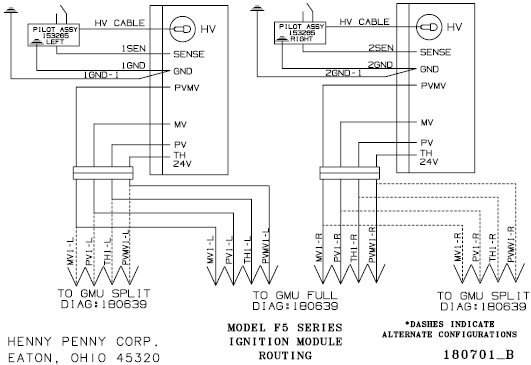

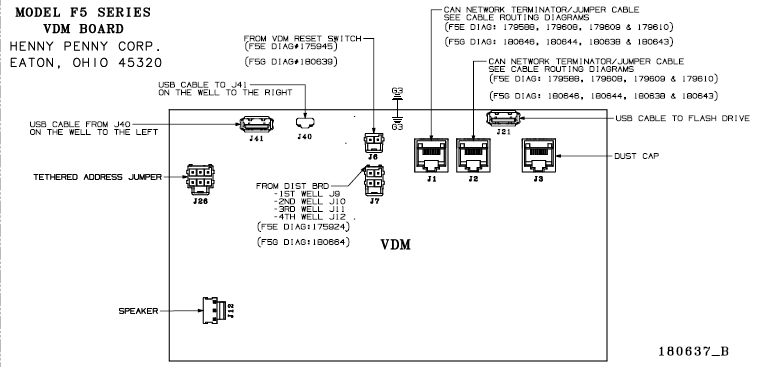

Wiring Diagrams

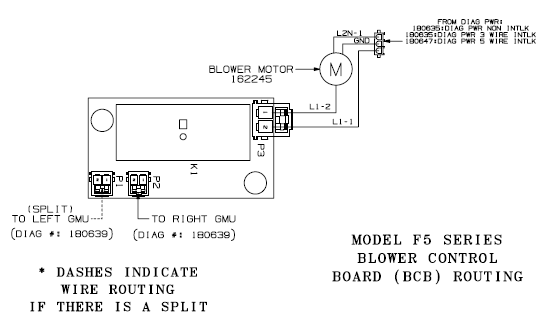

180806 B Blower Control Board Diagram

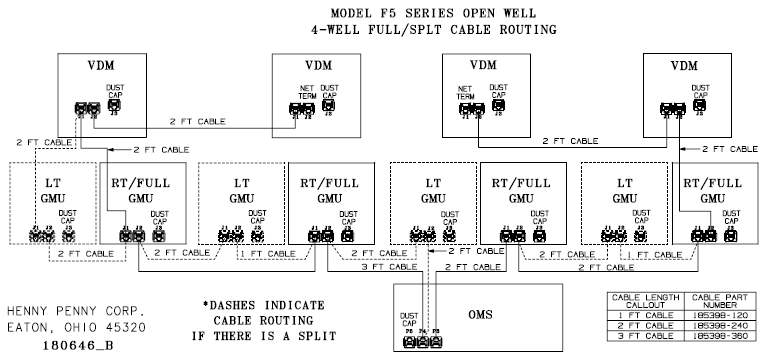

180646 B Can Bus Cable Routing Diagram

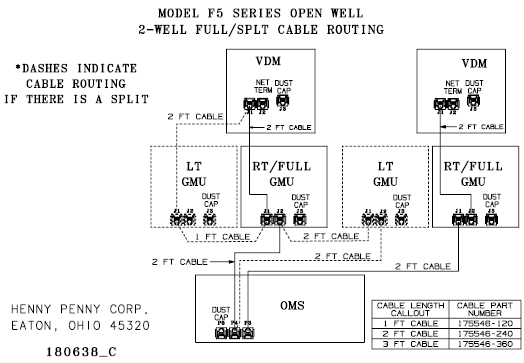

180638 B Can Bus Cable Routing 2 Well Diagram

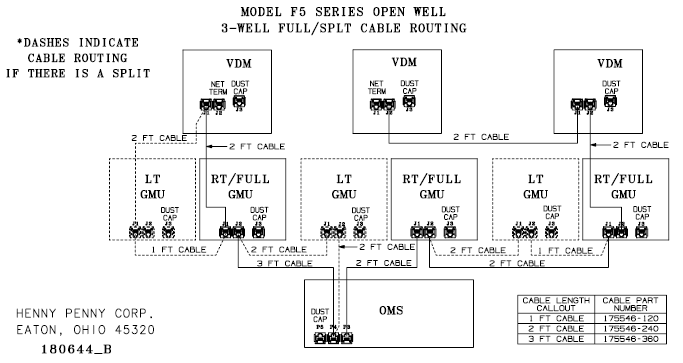

180644 B Can Bus Cable Routing 3 Well Diagram

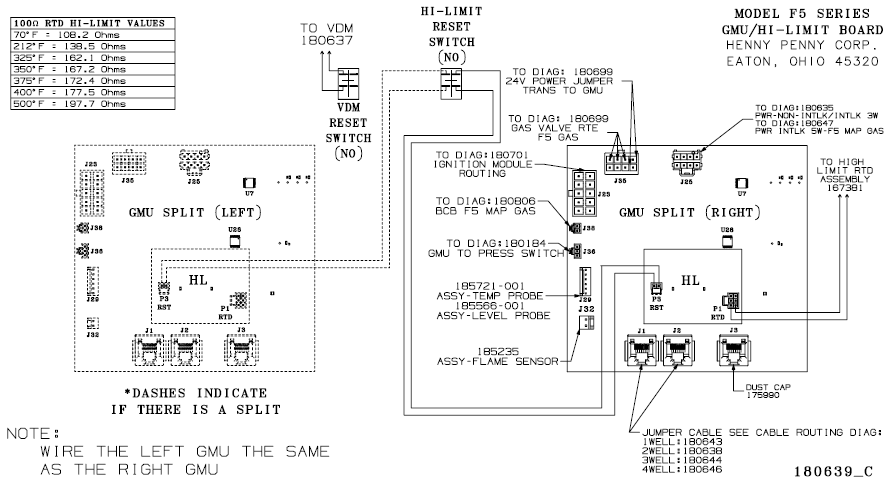

180639 C High Limit GMU Diagram
