Specifications

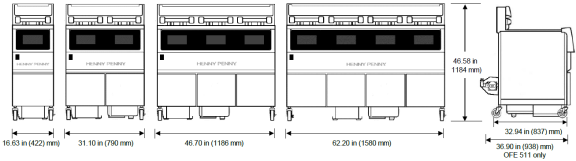

Fryer Dimensions
| OFE 511 | OFE 512 | OFE 513 | OFE 514 | |
|---|---|---|---|---|
|
Width |
16.63 in. (422 mm) |
31.10 in (790 mm) | 46.70 in (1186) | 62.20 in (1580 mm) |
| Depth | 36.90 in (938 mm) | 32.94 in (837 mm) | 32.94 in (837 mm) | 32.94 in (837 mm) |
| Height | 46.58 in. (1184 mm) | 46.58 in (1184 mm) | 46.58 in (1184 mm) |
46.58 in (1184 mm) |

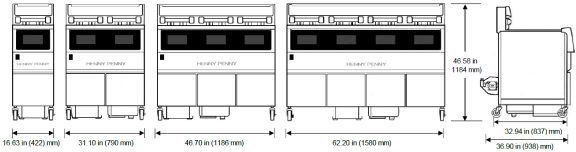

| LVE 302 | LVE 303 | LVE 304 | |
|---|---|---|---|
|
Width |
31.10 in (790 mm) | 46.70 in (1186) | 62.20 in (1580 mm) |
| Depth | 32.94 in (837 mm) | 32.94 in (837 mm) | 32.94 in (837 mm) |
| Height | 46.58 in (1184 mm) | 46.58 in (1184 mm) |
46.58 in (1184 mm) |
Crated Weights
| 1 VAT | 2 VAT | 3 VAT | 4 VAT | |
|---|---|---|---|---|
| Full | 302 lb. | 441 lb. | 528 lb. | 702 lb. |
| 137 kg. | 200 kg. | 240 kg. | 319 kg. | |
| Split | 317 lb. | 472 lb. | 606 lb. | 758 lb. |
| 144 kg. | 214 kg. | 275 kg. | 344 kg. |
Crated Weights
| Vat Config. | 1 vat | 2 vat | 3 vat | 4 vat |
|---|---|---|---|---|
| Full |
302 lb. 137 kg. |
441 lb. 200 kg. |
528 lb. 240 kg. |
702 lb. 319 kg. |
| Split |
317 lb. 144 kg. |
472 lb. 214 kg. |
606 lb. 275 kg. |
758 lb. 344 kg. |
Vat Dimensions
21 inches front to back
12.2 inches side to side
9.5 inches top to bottom
Electrical Specifications
| Volts | Phase | Hertz | kW per vat* | 14kW Heating Amps per vat | 17 kW Heating Amps per vat | Wire† |
| 208 | 3 | 60 | 14.0/17.0 | 39.4** | 48** | 3+G |
| 220-240 | 3 | 50/60 | 14.0/17.0 | 36** | 44.6** | 3+G |
| 240 | 3 | 60 | 14.0/17.0 | 34.2** | 41.6** | 3+G |
| 220/380 | 3 | 50/60 | 14.0/17.0 | 24.3** | 30.2** | 3NG |
| 230/400 | 3 | 50/60 | 14.0/17.0 | 24.3** | 30.2** | 3NG |
| 240/415 | 3 | 50/60 | 14.0/17.0 | 24.3** | 30.2** | 3NG |
* Split vats include two 7.0 or 8.5 kW heating elements connected to one power cord.
** Additional amperage required to operate non-heating electrical components.
† Units shipped without power cord and plug must have power cord and plug installed on site by a qualified electrician.
|
14 kW Heating |
17 kW Heating |
|---|---|
|
Not available for all destinations |
|
| 208,240 V only | 208,240 V only |
|
|
|
|
3NG NEMA 15-60P |
NEMA L21-20P |
| Required in Canada for 14 kW heating | |
Straight or right angle plug.
Not available for all destinations.
