Specifications
Dimensions

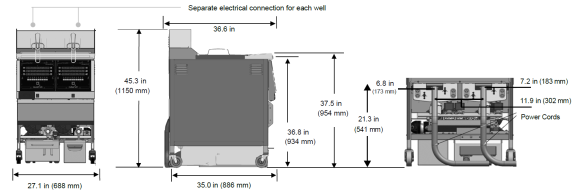

CFE 520

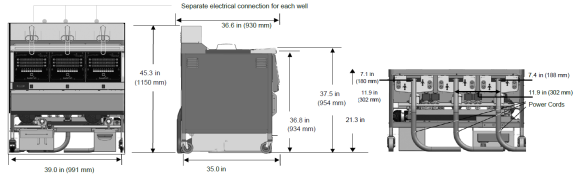

CFE 530
|
520 |
530 |
|
|
Width |
27.1 in (688 mm) | 39.0 in (991 mm) |
|
Depth |
36.6 in (930 mm) | 36.6 in (930 mm) |
|
Height |
45.3 in (1150 mm) | 45.3 in (1150 mm) |
|
Weight |
415 lb (188 kg) | 530 lb (240 kg) |
Crated Dimensions
|
520 |
530 |
|
|
Length |
32 in (813 mm) | 43 in (1092 mm) |
|
Depth |
46 in (1164 mm) | 46 in (1164 mm) |
|
Height |
56 in (1422 mm) | 56 in (1422 mm) |
|
Volume |
47.7 ft3 (1.4 m3) | 64.1 ftɜ (1.8 mɜ) |
Shipping Weight
|
520 |
530 |
|
|
Shipping Weight |
580 lb (263 kg) | 730 lb (331 kg) |
Heating Specifications
|
520 |
530 |
|
|
kW |
22 kW per vat / 44 kW total | 22 kW per vat / 66 kW total |
Electrical Specifications
| Volts | Phase | Hertz | kW/vat | Amps/vat | Wire | Cord & Plug /vat |
|---|---|---|---|---|---|---|
| 208 | 3 | 60 |
22 |
65 | 3+G |
Cord: #2/4 SOOW 10' power cord *Plug optional: 100 Amp 4100R9W Pin and Sleeve |
