PQE 500 Specifications

Electrical Specifications

Volts	Phase	Hertz	kW	Amps	Wire	Cord & Plug Included
208	3	60	17	48	3+G	NEMA, 15-60P Right angle plug

Oil Capacity

70 lbs (32 L) per vat

The vat has 2 level indicator lines inscribed on the rear wall of the vat. The upper-most line shows the proper oil level when at cooking temperature.

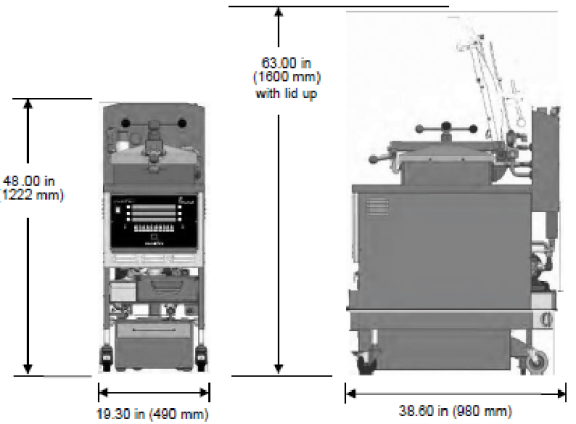

Dimensions

Uncrated Dimensions

Width	19.3 in (490 mm)
Depth	38.6 in (980 mm)
Height	48 in (1222 mm) top of stack
Height	63.0 (1600 mm)

Crated Dimensions

Length	44 in (1118 mm)
Depth	27 in (686 mm)
Height	56 in (1420 mm)
Volume	39 ftɜ (1.1 mɜ)

Shipping Weight

Shipping Weight

460.00 lb (209 kg)

Heating Specifications

kW

17 kW
