Realigning the Lid

Only perform this procedure when the fryer is cool or severe burns may result.

This appliance contains no user serviceable parts - servicing shall be carried out only by authorized personnel. For spare parts and service contact the manufacturer or authorized local agent for this product. To avoid electrical shock or property damage, disconnect power before installing or servicing equipment.

Overview

The PXE 100 lid can come out of alignment. An out of alignment lid has one side of the lid resting higher than another side of the lid.

Procedure

1. Close and lock the lid.



2. Remove the back panel.

3. Remove the weights from the weight carrier and bolt weight carrier to frame.

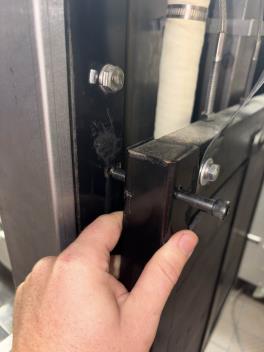

4. Identify the eight bolts (4 on each side of the lid) that attach the hook arm.

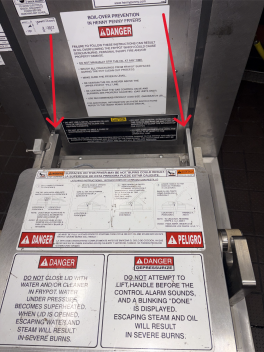

5. Loosen all eight bolts and push down the front weight arms to realign the carrier.

   Placing a lot of weight on top will force the lid to sit fully down in the correct position.

6. Replace the split ring washer for each bolt.

When the lid is flush with the vat, tighten each bolt.

Tightening the bolts all at once will put the lid out of alignment.



PXE 100 Lid out of alignment

7. Reverse steps 1-3.
