32X Direct Connect Oil System Operating Instructions
Kit number
14364
14367
14368
14371
14374
14375
Estimated Time
30 - 60 minutes
-

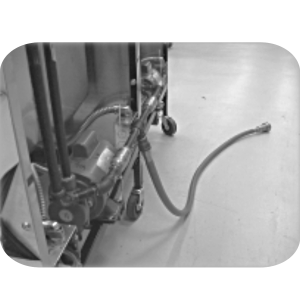

Connect the female quick disconnect to the male quick disconnect at the wall.
-
Leave hose attached unless fryer is moved.
-
Open the drain valve and drop oil from the vat to the drain pan.
-

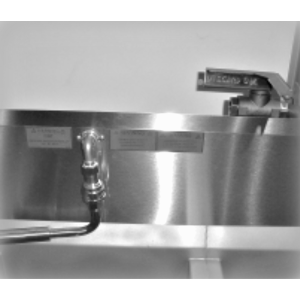

On the back of the fryer pull diverter handle towards you from "FILTER" to "DISCARD".
-
When all oil is drained from the vat, turn filter pump switch to "ON". Oil will then be pumped from the drain pain.
-
When oil is emptied from the drain pain, turn filter pump switch to "OFF".
-

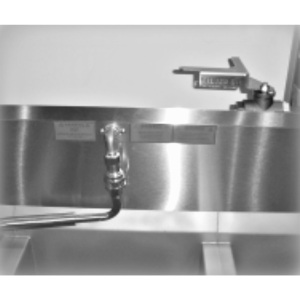

Located on the back of the fryer, push diverter handle from "DISCARD" to "FILTER".
-
Fryer is ready for fresh oil.
|

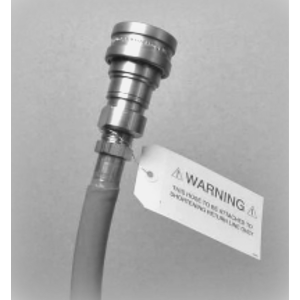

In order for the system to work properly, attach the hose to the oil return line only. |
