OFX 32X Retrofit Faucet
Required tools
3/8 in Wrench
5/8 in Wrench
Crosstip Screwdriver
Flat-head Screwdriver
Kit number
14757
Estimated Time
1 Hour to 1.5 Hours
-
Disconnect power to fryer and allow it to cool.
-

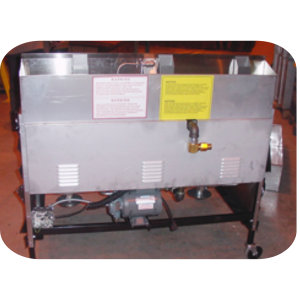

Remove rear cover screws and the cover from the unit.
-
Save these items to be reused. OFG unites have two covers, OFE unites have one cover.
-
Loosen the nuts on the fittings of the 3/8 in. tubing. Remove the tubing from the fryer and discard.
-

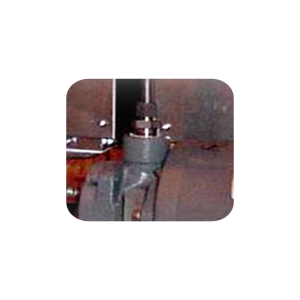

Remove straight fitting from the top of the pump and replace it directly with the new pump fitting. Discard the old fitting.
-

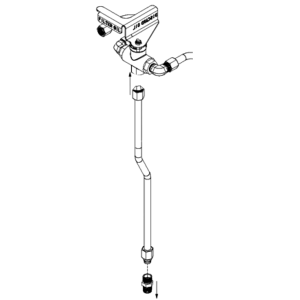

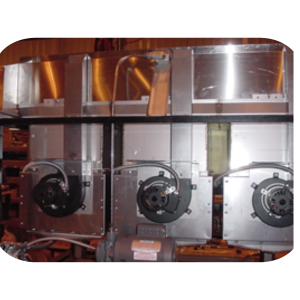

Attach the bottom of the new 5/8 in. tubing assembly to the pump. Then attach the top of the tube assembly to the bottom of the valve.
-

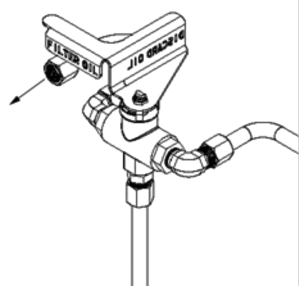

Connect the 5/8 in. tube into the return line block assembly and valve.
-

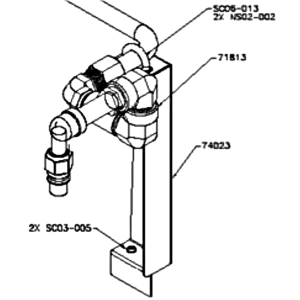

Install the bracket to hold the tubing in place.
-
Fasten the two self-drilling bracket screws by drilling them into the black fryer frame.
-
Insert 5/8 in. tubing into valve assembly and tighten.
-
Secure the bracket to the fryer frame with screws provided using the U-bold & nuts provided in the kit.
-

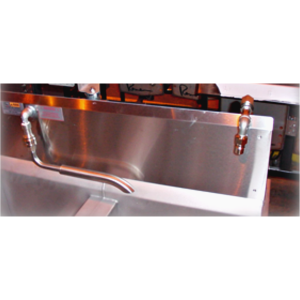

Fasten the tubing to the bracket and tighten the 5/8 in. fittings.
|
To avoid electrical shock or property damage, move the power switch to OFF and disconnect power. |
