OFX 32X Replacing the Motor Shield
Required tools
Flat-head screwdriver
Adjustable wrench
Electric drill
Crosstip drill bit
Kit number
140459
Estimated Time
30 minutes to 1 hour.
-

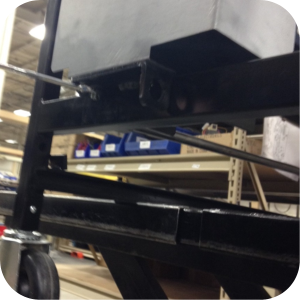

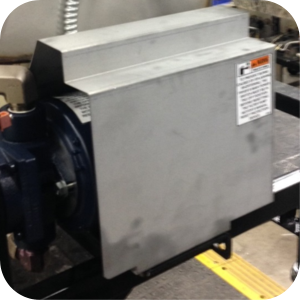

Use a 1/2 wrench of an adjustable wrench to remove the back two bolts and loosen the front to remove the shield off the motor bracket.
-
Do not throw away nuts and bolts. Some units may require the lower panel be removed in order to remove the shield. Keep screws.
-

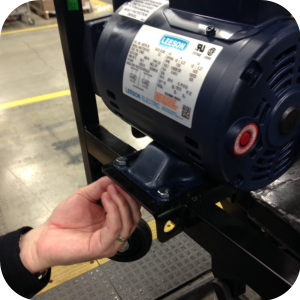

Place bolts back into holes and tighten till pump is secure.
-

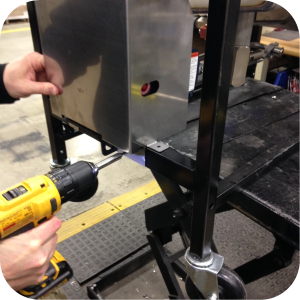

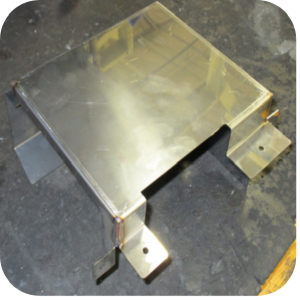

Align the new bracket over the motor and attach with four screws from kit. Ensure that no part of the bracket is touching the plumbing or motor.
-

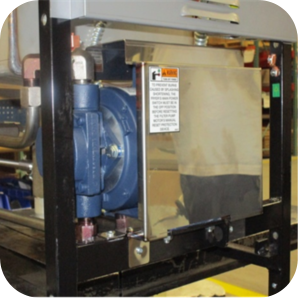

Place warning label on upper left of the shield.
